REAR WHEEL

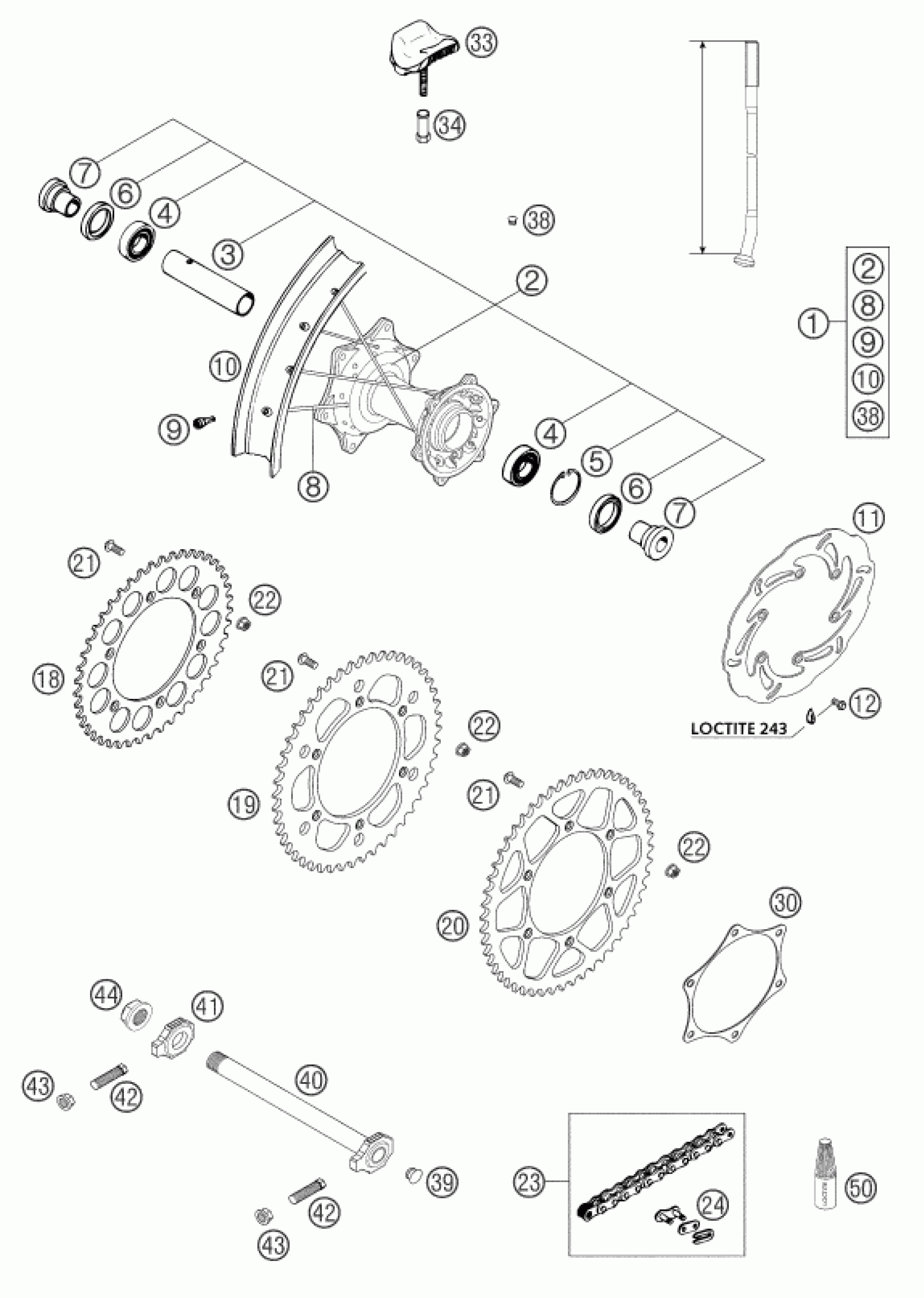

KTM 625 SXC 2003 REAR WHEEL Diagram
#
Description
Price
1
REARWHEEL CPL.2.15X18''DID '00
50310001344
$400.92
2
REARWHEEL HUB CPL.125-380 '00
50310010044
$313.68
3
BUSH. SPACER TUBE 121,5MM 01
59010011000
$22.34
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X197-10G 18'' DDE
50310071197
$4.11
9
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
10
REAR RIM 2,15X18'' DID
54610070300
$198.44
11
BRAKE DISC REAR D=220MM 2000
58310060100
$186.06
12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$2.05
18
REAR SPROCKET 38-T
58310051038
Unavailable
18
REAR SPROCKET 40-T
58310151040
$63.10
18
REAR SPROCKET 42-T
58310051042
Unavailable
18
REAR SPROCKET 45-T
58310151045
Unavailable
19
REAR SPROCKET 48-T
58310151048
Unavailable
19
REAR SPROCKET 49-T
58310151049
Unavailable
20
REAR SPROCKET 50-T
58310151050
$56.00
20
REAR SPROCKET 51-T
58310151051
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
22
Self locking nut M8 10.9
54310086200
$3.08
23
% X-RING CHAIN 5/8X1/4" +M.LIN
50310265114
Unavailable
24
CONNECTING LINK
50310266000
Unavailable
30
SPROCKET ADAPTER 1,5MM NIRO
58710049000
$25.70
33
RIM LOCK VM3 (2.15'')
54010100100
$20.56
34
NUT FOR WHEEL HOLDER '96
50310090050
$5.23
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WH. SPINDLE RE. CPL.265MM 00
50310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
SPEC. SCREW M10X1,25X40 WS=10
50304040000
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
50
LOCTITE 243 BLUE 5 ML
6899785
$28.04
