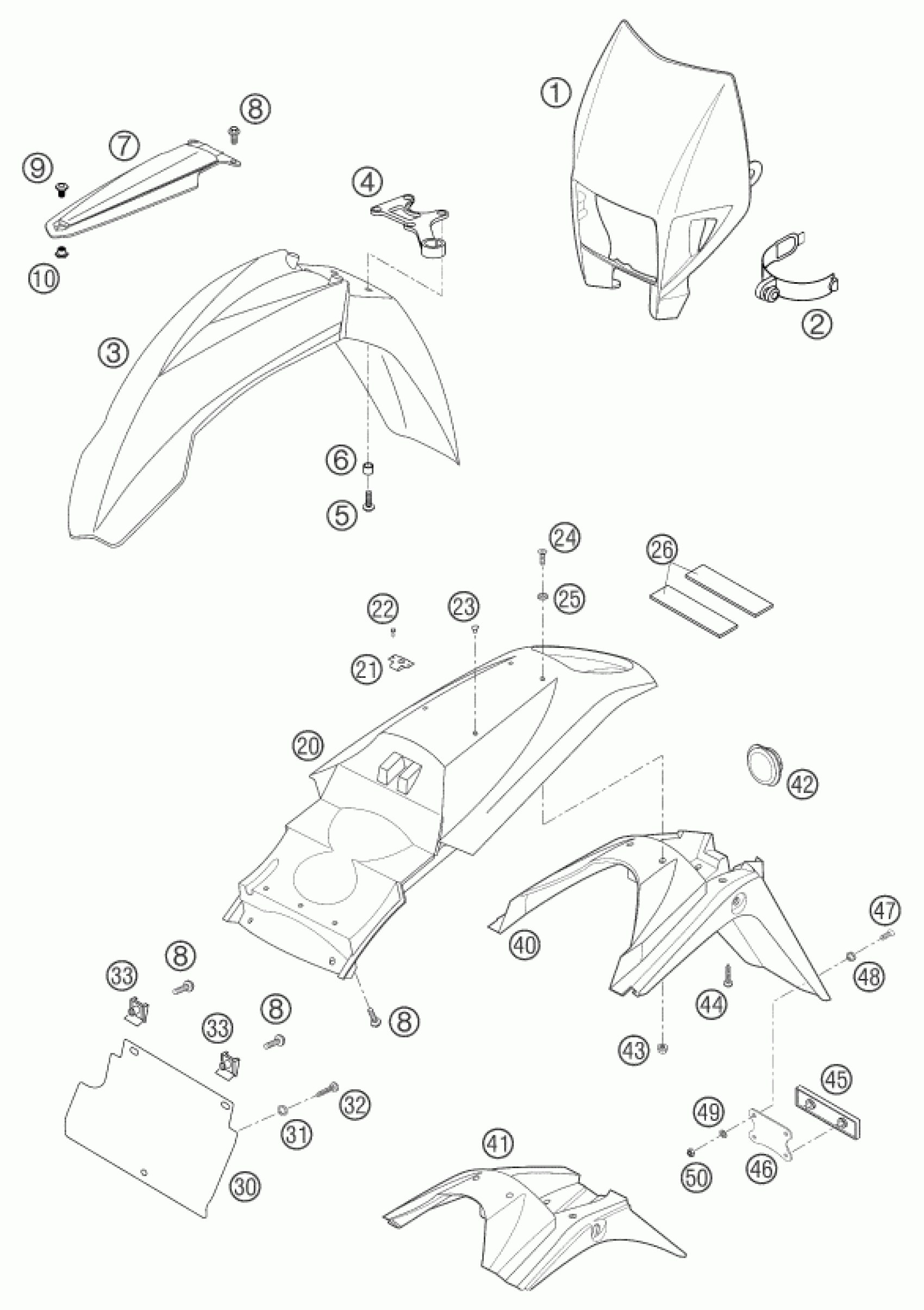

KTM 625 SXC 2003 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO WP '95

50211086000

$8.03

3

FENDER FRONT WIDE ORANGE 03

5030801030004

$29.63

4

BRAKE HOSE GUIDE 2000

59008019000

$4.11

5

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

6

SPACER BUSHING 7X10X7,5

50208020000

$4.11

7

FENDER BRACE BLACK '99

50308009100

$9.46

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

9

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

10

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

20

FENDER REAR ORANGE LC4 01

5840801410004

$25.45

21

THRUST BEARING QUICK RELEASE

58307042051

$4.52

22

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

23

PLUG REAR FENDER ORANGE 01

5840801200004

$1.49

24

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

25

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

26

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

30

FENDER EXTENSION LC4-E '97

58308013250

$13.01

31

WASHER 6MM

40006006000

$1.49

32

SCREW FOR PLASTIC D=5X18

0017050181

$1.49

33

clip nut M6

54603048100

$4.11

40

NUMB.PLATE CARRIER BLACK LC4

58408015000

Unavailable

41

NUMB.PLATE CARRIER BLACK SC'99

58308015100

Unavailable

42

RUBBER FOR FENDER REAR

58414040050

$8.71

43

Self locking nut M6 - 10

56509064100

$2.05

44

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

45

REFLECTOR RED

58412080000

$5.23

46

BRACKET FOR REFLECTOR

58412080050

$6.07

47

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

48

WASHER 6MM

40006006000

$1.49

49

WASHER DIN0125-A 5,3

0125050003

$1.49

50

Self locking nut DIN 985 M5

0985050003

$2.05
