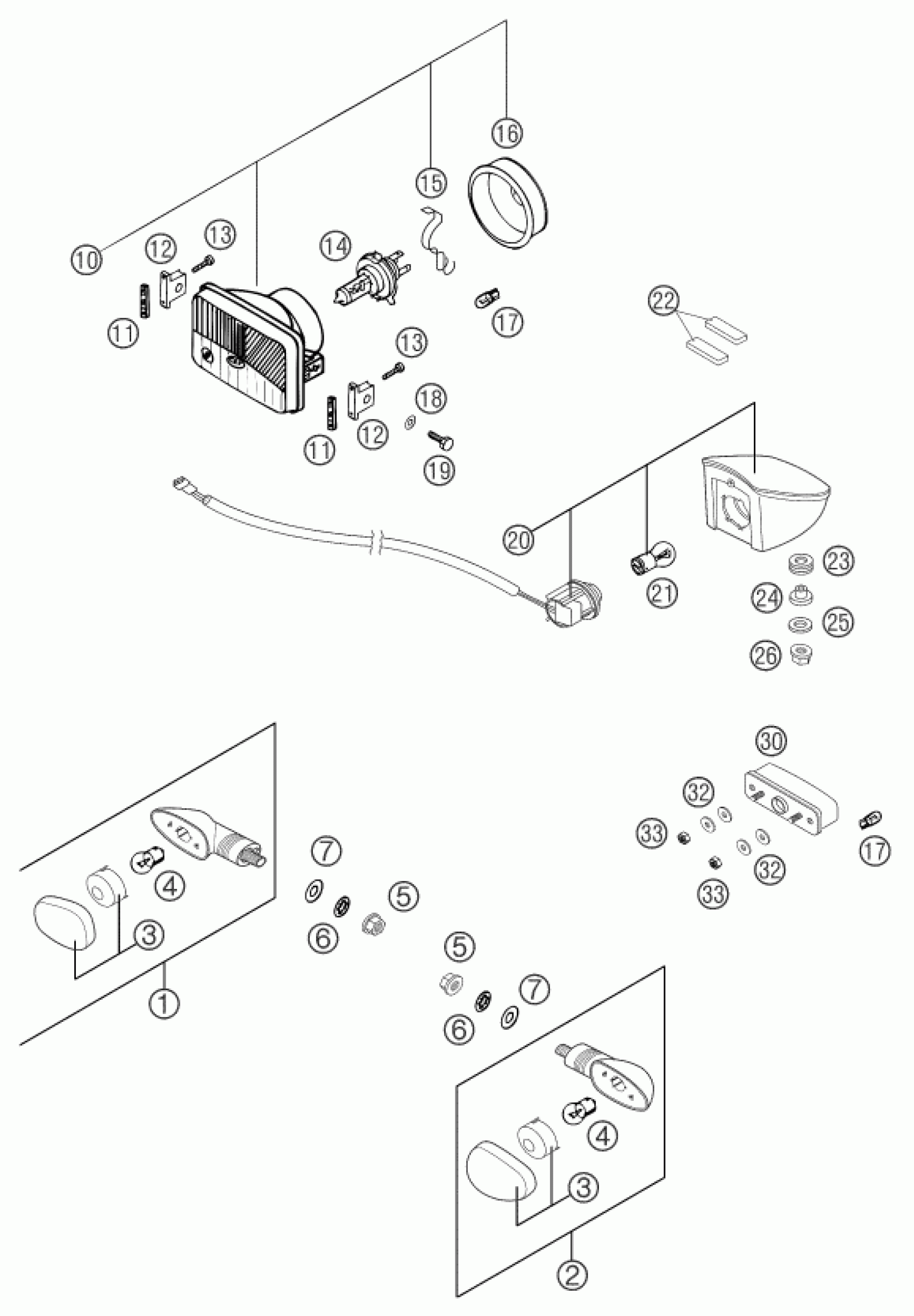

KTM 625 SXC 2003 LIGHTING SYSTEM Diagram

#

Description
Price

1

FLASHER CPL.FRONT R/S REAR L/S

58414026100

$29.03

2

FLASHER CPL.FRONT L/S REAR R/S

58414025100

$29.30

25

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

26

Self locking nut M6 - 10

56509064100

$2.05

30

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

3

FLASHER LENS L/S & R/S 02

58414028100

$6.63

4

BULB 12V 10W (BA15S)

44111015100

$3.08

5

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

6

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

7

washer DIN 125 A 10.5

0125100003

$2.05

10

HEAD LIGHT 186(RI)''1003202 R'

59014002000

$107.27

10

HEAD LIGHT 186(LE)''1003203 L'

59014002100

$89.91

11

HEADLIGHT BRACKET '93

50211410050

$5.65

12

HEAD LIGHT SUPPORT 2001

58414010100

$1.49

13

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

14

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

15

BULB HOLDER

49011436100

$2.24

16

RUBBER CAP

50211537000

$3.48

17

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

18

WASHER DIN0125-A 6,4

0125060003

$1.49

19

HH SCREW DIN0933-M 6X20

0933060203

$1.49

20

REAR LIGHT CPL. LC4 2001

58414040100

$80.31

21

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

23

RUBBER SLEEVE D=12MM

41001052000

$4.11

24

REAR LIGHT BUSHING

58714048000

$5.23

22

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

32

washer DIN 9021 A - 5.3

0021050003

$1.49

33

Self locking nut DIN 985 M5

0985050003

$2.05
