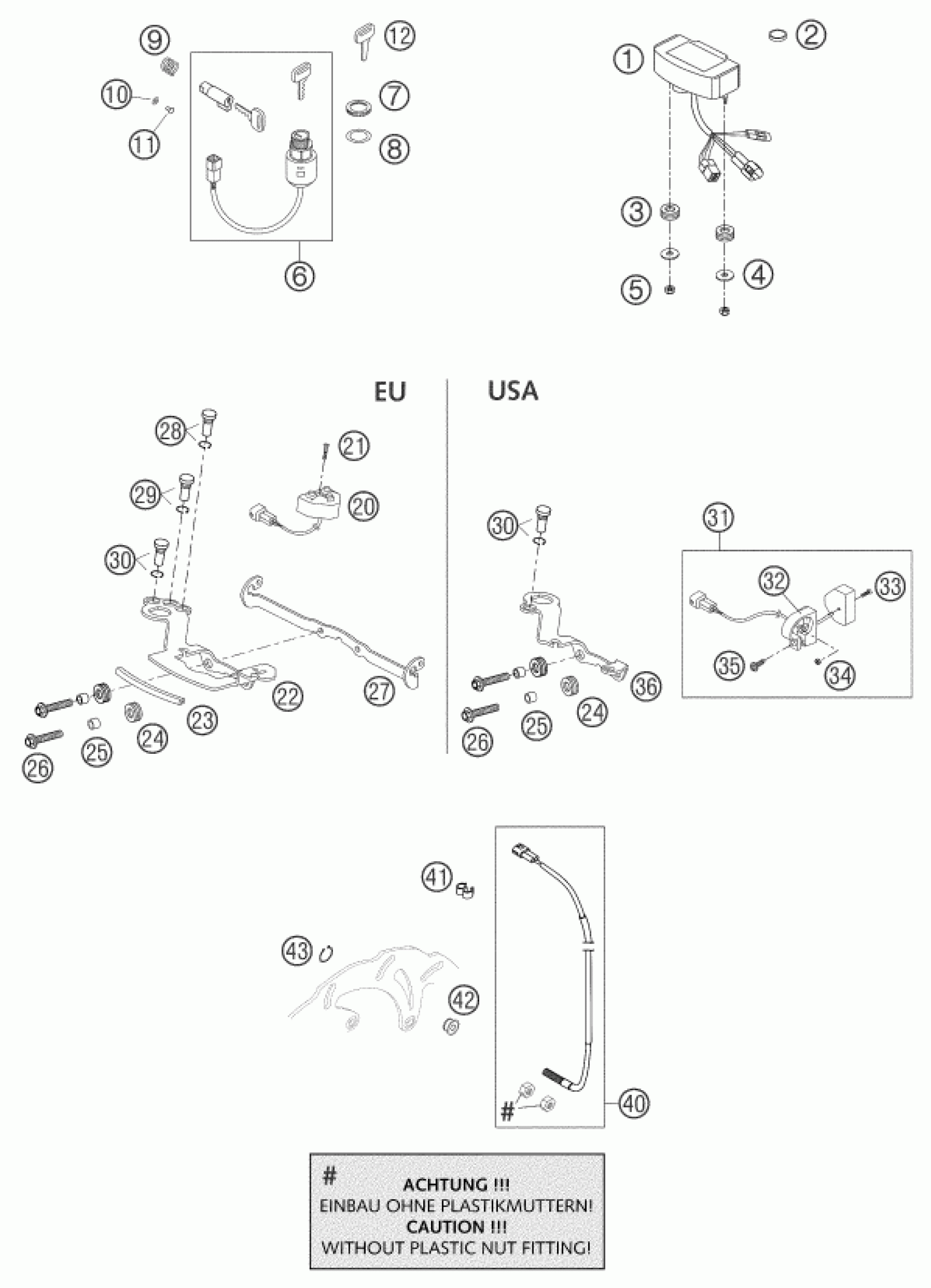

KTM 625 SXC 2003 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 0

58314069100

$302.69

1

SPEEDOMETER MPH F. 21'' 0

58314069300

$241.85

2

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

3

rubber grommet 16x10.8x3

58214069051

$5.23

4

washer DIN 9021 A - 5.3

0021050003

$1.49

5

Self locking nut DIN 985 M5

0985050003

$2.05

6

LOCK SYSTEM 625 SXC 03

58411066400

$80.78

7

IGNITION LOCK NUT M24X1

50311066050

$6.26

8

WASHER F. IGNITION LOCK 03

58411066450

$5.41

9

SPRING L=16MM

12003007052

$1.73

10

SPRING WASHER DIN137 B3

0137030003

$1.49

11

GROOVED NAIL RIVETO AF10

45002040091

$1.49

12

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

20

TRIPMASTER-SWITCH DIGI-SPEEDO.

58314069200

$35.86

21

FLAT HEAD SCREW M4X25

0965040251

Unavailable

22

SPEEDOMET.BRACKET 625 SXC 03

58314060200

$22.57

23

EDGE PROTECTOR PER METER

58312085100

$22.52

24

rubber grommet D=8mm open

31008060000

$2.05

25

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

26

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

27

FLASHER BRACKET 2002

58314033100

$23.12

28

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

29

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

30

INDICATOR LIGHT ORANGE ''ON''

58314085000

$4.11

31

TRIPMASTER-SWITCH W. CLAMP 03

50314068000

$101.64

32

CLAMP FOR TRIPMASTER-SWITCH 03

50314068050

$1.97

33

FLAT HEAD SCREW DIN0966-M 4X20

0965040125

$1.49

34

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

35

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

36

SPEEDOM.BRACKET 625 SXC USA 03

58314060300

Unavailable

40

SPEEDOM. CABLE (WITHOUT NUTS)

58314069251

$74.04

41

CLAMP D=6/8MM, BLACK

55011022100

$2.05

42

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

43

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05
