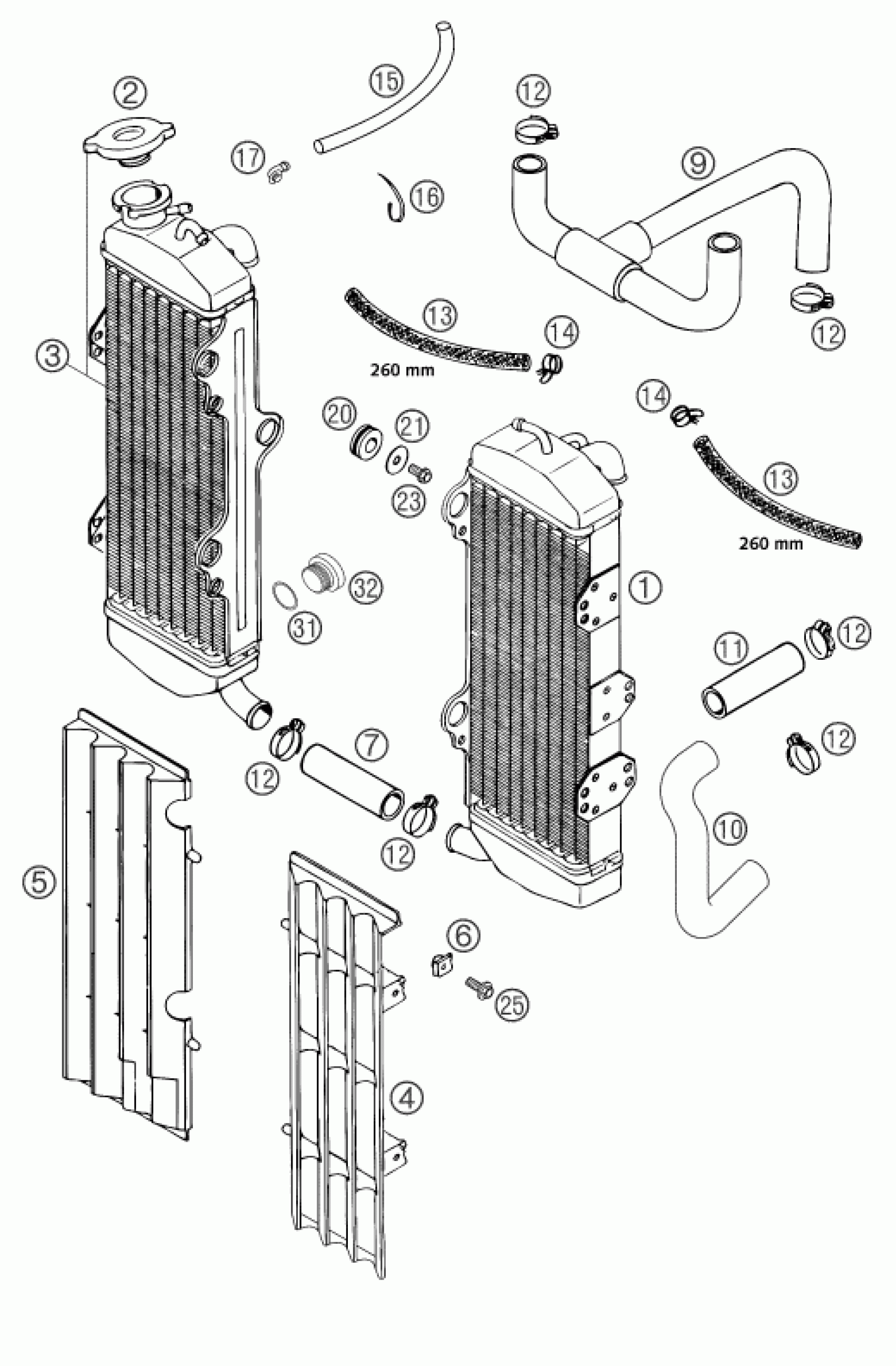

KTM 625 SXC 2003 COOLING SYSTEM Diagram

#

Description
Price

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

1

RADIATOR L/S (45246) LC4'94

58335008000

$252.56

3

RADIATOR R/S (45.403) SXC 03

58335008200

$252.56

4

RADIATOR PROTECT. L/S WHITE'96

58035034100

Unavailable

4

RADIATOR PROTECTOR L/S BLACK

58035034000

$11.78

5

RADIATOR PROTECT. R/S WHITE'96

58035134100

Unavailable

5

RADIATOR PROTECTOR R/S BLACK

58035134000

$11.53

6

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

$60.30

10

PREFORMED HOSE 18X25 PUMP-CY

58435025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

$3.08

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

$5.23

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

31

O-ring 17X1.5

0770017015

$1.49

32

PLUG DIN0908-M18X1,5

0908180153

$4.90
