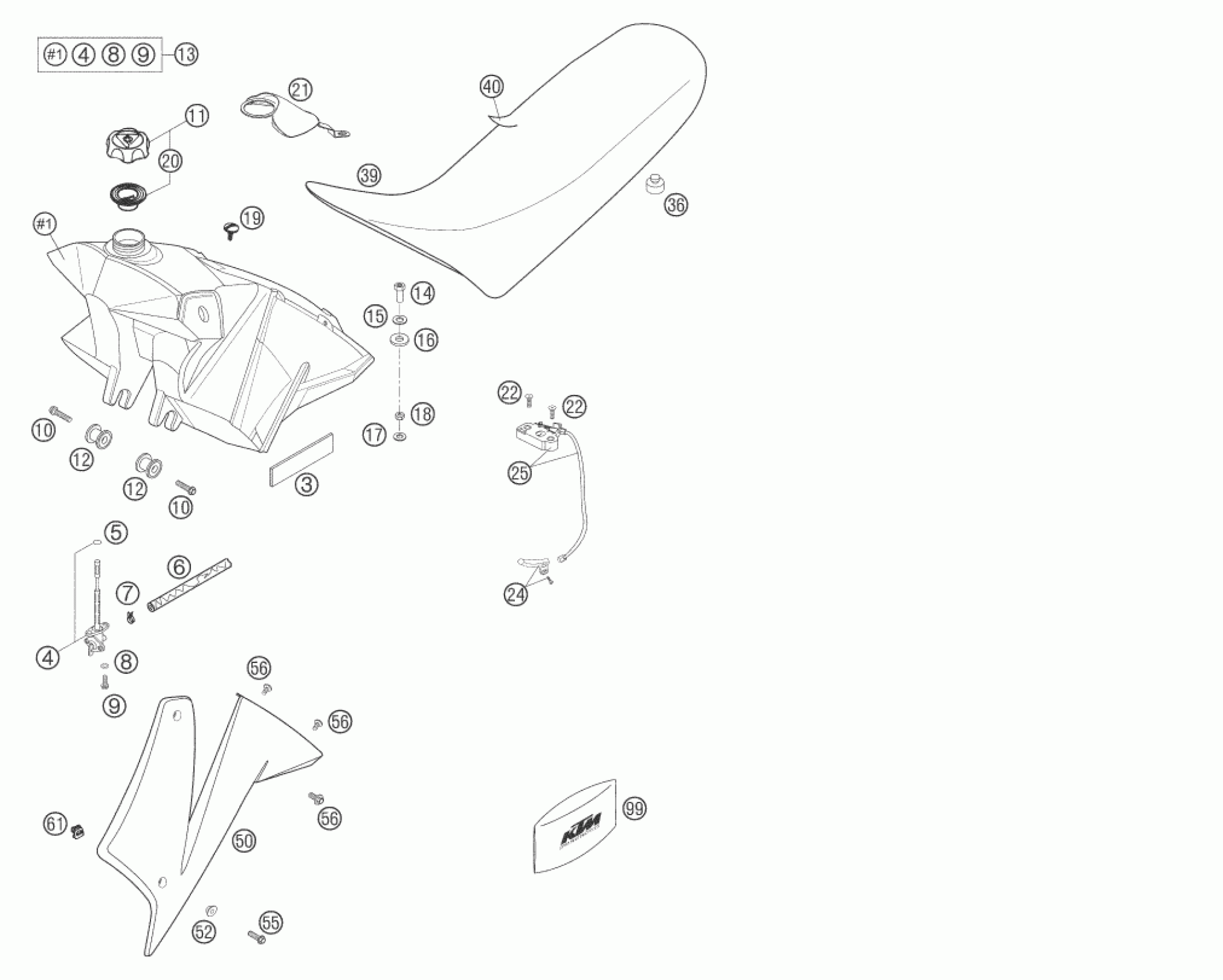

KTM 625 SMC 2006 TANK, SEAT Diagram

#

Description
Price

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK SMC 04

54807004100

$21.65

5

O-RING 11X2 VITON

0770110021

$2.05

6

HOSE ID 7,5 PER METER

54435024001

$23.27

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

FUEL TANK CPL. 9LITER BLACK 04

58307013800

$432.02

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 21 X 3

31004001100

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

17

washer DIN 125 A -8.4

0125080003

$1.49

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

20

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

21

GENITALPROTECTOR LC4 2000

58307013750

$17.68

22

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

$1.49

24

SEAT LOCK LEVER CPL. 05

58607051000

$8.89

25

SEAT LOCK CPL. 05

58607050044

$29.76

36

PLUG FOR SEAT

58407040060

$3.08

39

SEAT SMC 05

58607040100

$111.09

40

SEAT COVER SMC 05

58607040150

$34.19

50

SPOILER L/S ORANGE LC4 '98

5840805000004

Unavailable

50

SPOILER R/S ORANGE LC4 '98

5840805100004

$51.88

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
