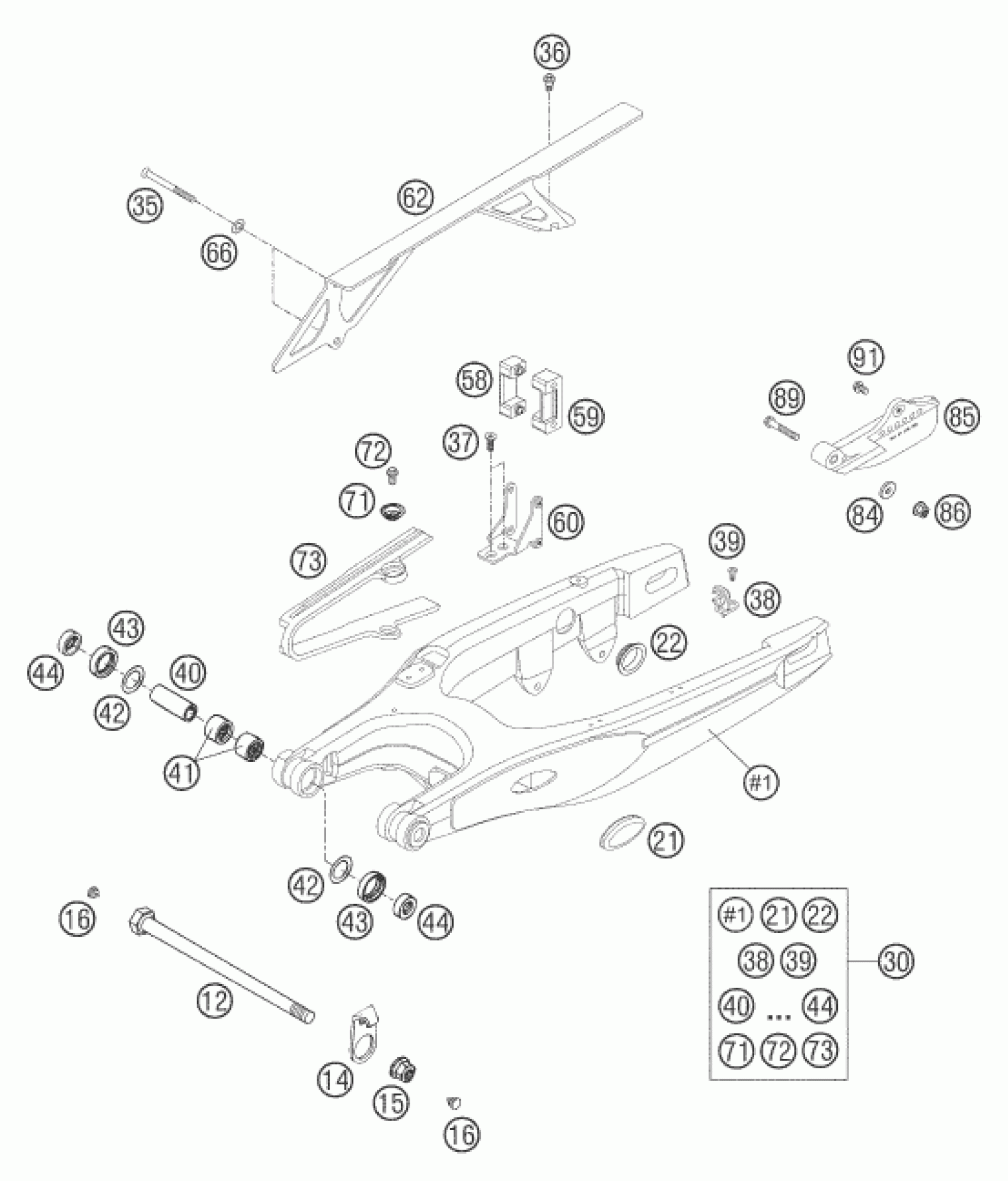

KTM 625 SMC 2006 SWING ARM Diagram

#

Description
Price

12

SWINGARM BOLT KPL. L=253

54603014100

Unavailable

14

BRAKE HOSE GUIDE '89

50230211000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

Unavailable

16

PLASTIC CAP SFL10

54403135000

Unavailable

21

CLOSING COVER SWINGARM SM 03

58404041000

Unavailable

22

CLOSING COVER ROUND 03

58404041100

Unavailable

30

SWINGARM CPL. SM 05

58404130144

Unavailable

35

FLAT HEAD SCREW DIN7991 M6X55

0991060553

Unavailable

36

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

37

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

38

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

Unavailable

39

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

40

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

41

NEEDLE BUSH HK2012V

59004031000

Unavailable

42

WASHER 20X32X0,8

59004033100

Unavailable

43

radial shaft seal 25x32x7

0760253270

Unavailable

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

58

CHAIN GUIDE INSIDE 05

58604067000

Unavailable

59

CHAIN GUIDE OUTSIDE 05

58604068000

Unavailable

60

SUPPORT F. CHAIN GUIDE 03

58307068300

Unavailable

62

CHAINGUARD SM, DUKE 2002

58404060000

Unavailable

66

WASHER F. CHAINGUARD SM 02

58404060051

Unavailable

71

BUCKET

72210079000

Unavailable

72

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

73

CHAIN SLIDING GUARD SM 03

58404066000

Unavailable

84

STEEL WASHER 6,4X17X3

50232050001

Unavailable

85

CHAIN GUIDE CPL. REAR LC4 '98

58404070000

Unavailable

86

Self locking nut M6 - 10

56509064100

Unavailable

89

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

91

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable
