REAR WHEEL

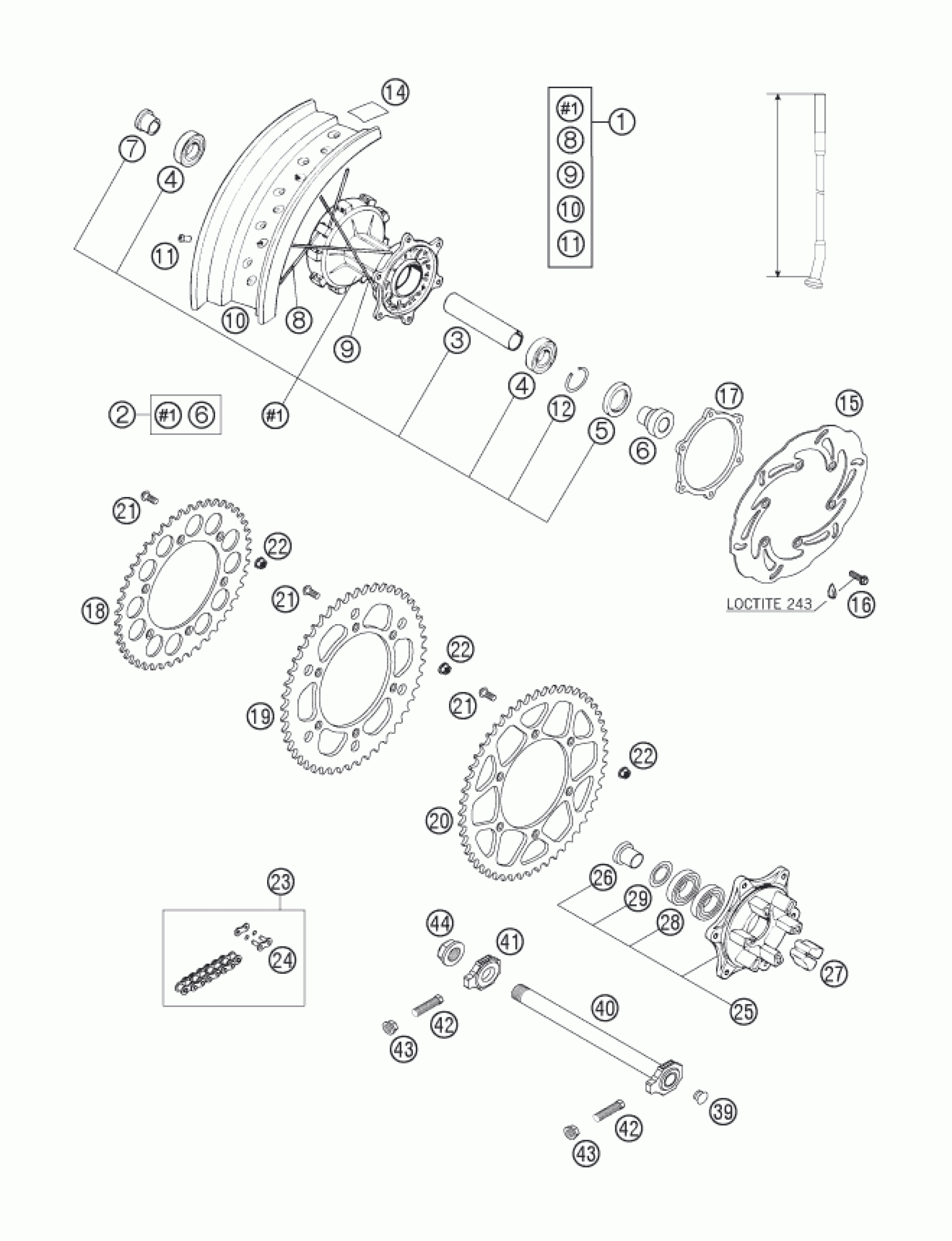

KTM 625 SMC 2006 REAR WHEEL Diagram
#
1
REAR WHEEL 5X17''
58410001944
Unavailable
3
BUSHING SPACER TUBE L=98,3MM
58410011000
Unavailable
4
Grooved ball bear. 6205-2RSHC3
0625062052
Unavailable
2
REAR WHEEL HUB DAMPED CPL. 06
5841001034491
Unavailable
5
SHAFT SEAL RING 32X52X7 B
0760325272
Unavailable
6
BUSHING FOR REAR WHEEL SM 03
58410017000
Unavailable
7
BUSHING FOR REAR DAMPED HUB 06
54610416500
Unavailable
8
SPOKE M5X199-16G 17''
58310171100
Unavailable
9
SPOKE M5X186-26G 17''
58310071100
Unavailable
10
REAR RIM 5X17''
58410070100
Unavailable
11
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
Unavailable
12
CIRCLIP DIN0472-52X2
0472052200
Unavailable
14
rim tape 17"
58309073000
Unavailable
15
BRAKE DISC REAR D=220MM 2000
58310060100
Unavailable
16
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
Unavailable
17
DISTANCE RING F. BRAKE DISC
58410061000
Unavailable
18
REAR SPROCKET 38-T
58310051038
Unavailable
18
REAR SPROCKET 40-T
58310151040
Unavailable
18
REAR SPROCKET 42-T
58310051042
Unavailable
18
REAR SPROCKET 45-T
58310151045
Unavailable
19
REAR SPROCKET 48-T
58310151048
Unavailable
20
REAR SPROCKET 50-T
58310151050
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
22
Self locking nut M8 10.9
54310086200
Unavailable
23
CHAIN Z-RING 5/8X1/4''
50310800118
Unavailable
24
CONNECTING LINK F. 50310800118
50310366000
Unavailable
25
SPROCKET SUPPORT CPL. 05
58310050244
Unavailable
24
MASTER LINK FOR 50310800118
50310866000
Unavailable
26
BUSH. F.SPROCKETSUPPORT 06
58310417200
Unavailable
27
Rubber damping block 91
54610459000
Unavailable
28
Grooved ball bear.6005 DDU2CG2
0625060058
Unavailable
29
SEAL WASHER 6005AV 06
58310018000
Unavailable
39
Plug SFL16
50210086000
Unavailable
40
WHEEL SPINDLE RE.CPL.L=270M 03
58410085044
Unavailable
41
Chain tension adjuster, right
50310084000
Unavailable
42
screw M10x1.25x50 WS10
50304040100
Unavailable
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
44
Hexagon nut M20x1.5
50310099000
Unavailable
