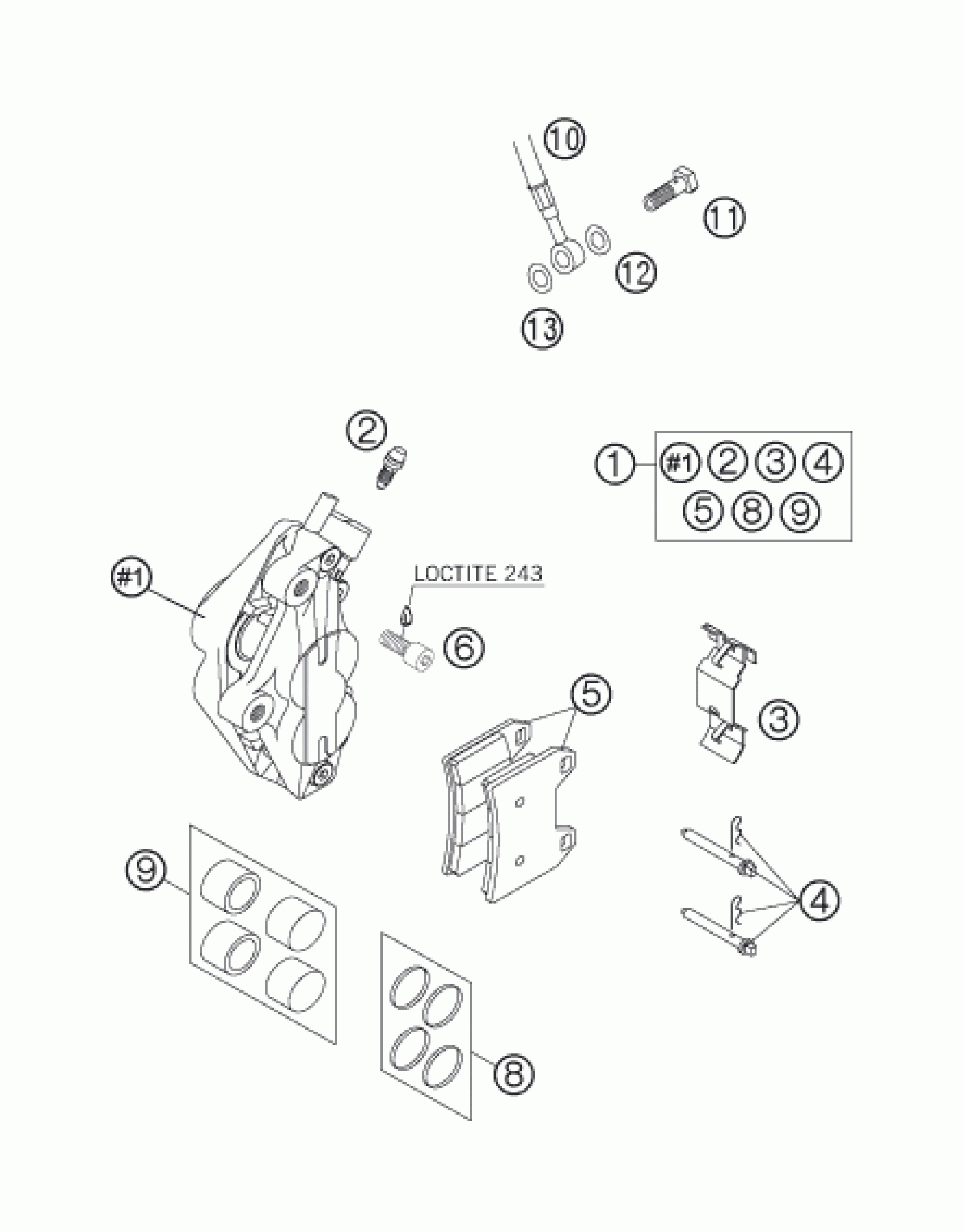

KTM 625 SMC 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

BRAKE CALIPER FR. GOLD DUKE'99

58713015000

Unavailable

2

BLEEDER SCREW M8X1,25 '99

58713020000

Unavailable

3

RETAINING SPRING BREMBO '99

58713018000

Unavailable

4

BOLT WHITH CLIP '99

58713017000

Unavailable

5

BRAKE PAD SET FR.FERIT ID405FF

58713030000

Unavailable

6

AH SCREW DIN912 M10X30 10.9

0912100309

Unavailable

8

REPAIR KIT SEAL.-RINGS DUKE 02

58713021000

Unavailable

9

BRAKE PISTON DUKE 2002

58713019000

Unavailable

10

BRAKE HOSE FRONT SM 2004

58413011500

Unavailable

11

HOLLOW SCREW M10X1X19

50213025000

Unavailable

12

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

13

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable
