FRAME

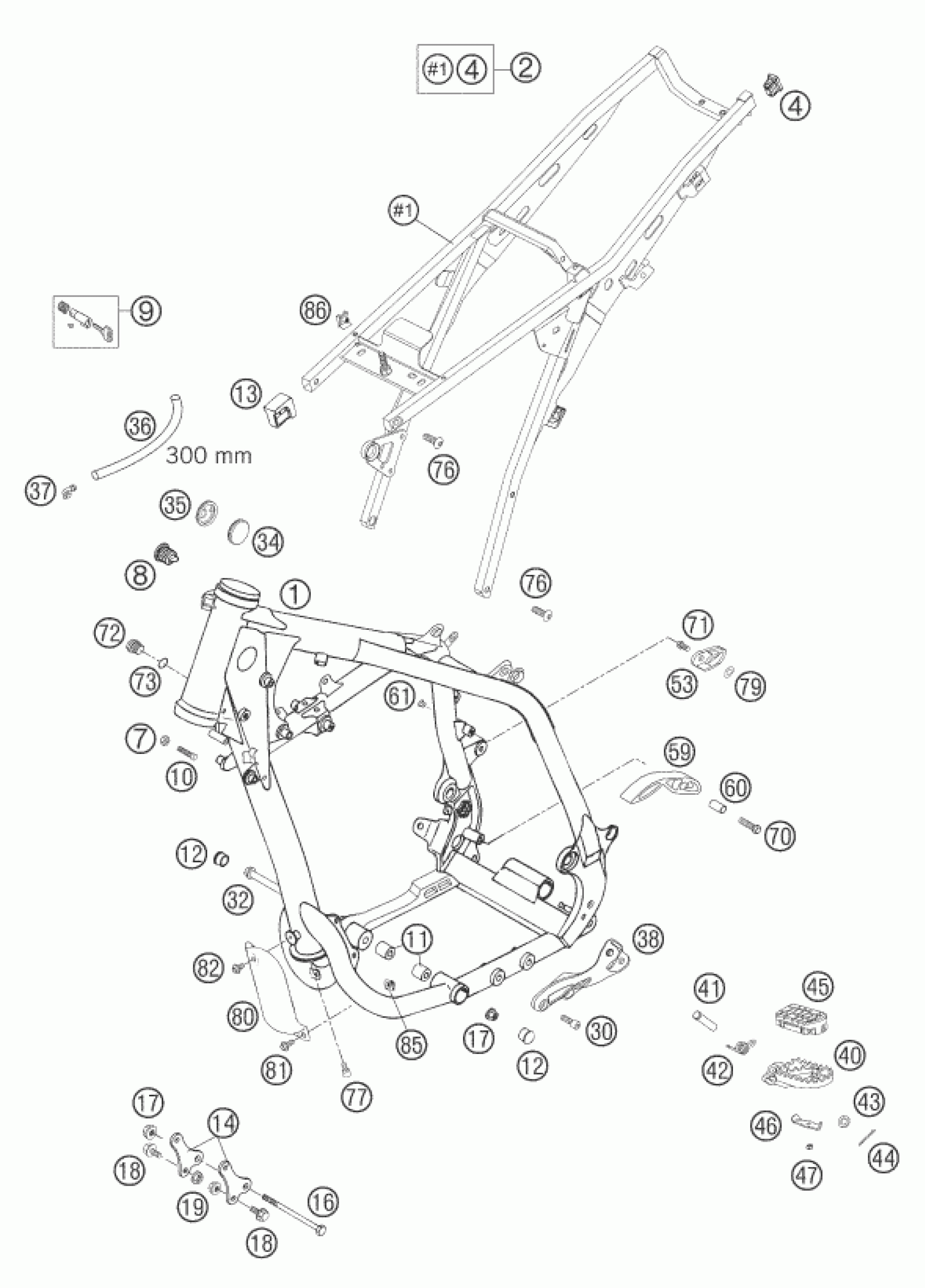

KTM 625 SMC 2006 FRAME Diagram
#
1
FRAME CPL. ''EG05'' SMC
5860300104430
Unavailable
2
SUBFRAME CPL. ''P5''
5860300204430
$402.75
4
PLUG 12 X 17 MM
58303002090
$1.49
7
Hexagon nut DIN934 M8
0934080003
$2.05
8
PLASTIC CAP
42007049000
$1.49
9
STEERING HEAD LOCK CPL. ZADI
71003007000
$32.06
10
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
11
SPACER ROLLER 10,3X20X22
58003012000
$8.53
12
PVC CAP D=22MM
71001012100
$3.08
13
TANK SUPPORT '93
58307015000
$5.47
14
ENGINE SUPPORT AGW '94
58303055000
$10.46
16
ENGINE BRAC.SCREW M10X110 WS13
58403013000
$11.84
17
COLLAR NUT M10 WS=13
54630044000
$1.49
18
HH COLLAR SCREW M 8X16 WS=13
49109481052
$3.08
19
Self locking nut M8 10.9
54310086200
$3.08
30
AH SCREW DIN6912-M10X25,10.9
0912100250
$4.11
32
ENGINE BRAC.SCREW M10X160 WS13
58403014000
$18.22
34
PLUG 37MM
54606004000
$2.05
35
PLUG 37MM PERFORATED 04
54606004100
$1.49
36
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
37
ANGLE PIECE '97
50303089000
$5.23
38
FOOTREST BRACKET LEFT ALU 05
58403038100
$89.92
40
FOOT PEG L/S SILVER 02
59003040250
$43.66
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTREST RUBBER FRONT L/S 03
60003040010
$22.15
45
FOOTREST RUBBER FRONT R/S 03
60003041010
$22.15
46
CLOSING PANEL FRONT L/S R/S 03
60003044010
$6.07
47
Self locking nut DIN 985 M5
0985050003
$2.05
53
CHAIN SLIDING PIECE 05
58604069000
$3.55
59
CHAIN SLIDING PIECE BELOW '97
51103053000
$9.15
60
BUSHING 8,2X10X20
51103053051
$4.11
61
PLASTIC CAP SFL10
54403135000
$2.05
70
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
71
HH COLLAR SCREW M 8X16 WS=10
0015080163
$4.11
72
PLUG DIN0910-M16X1,5
0910160153
$4.87
73
CU-SEAL RING 16X22X2
0603162220
$2.05
76
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
77
AH SCREW DIN7984-M 6X10
0984060103
$1.49
79
washer DIN 125 A -8.4
0125080003
$1.49
80
COVER OIL FILTER '94
58303010000
$28.31
81
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
82
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
85
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
86
clip nut M6
54603048100
$4.11
