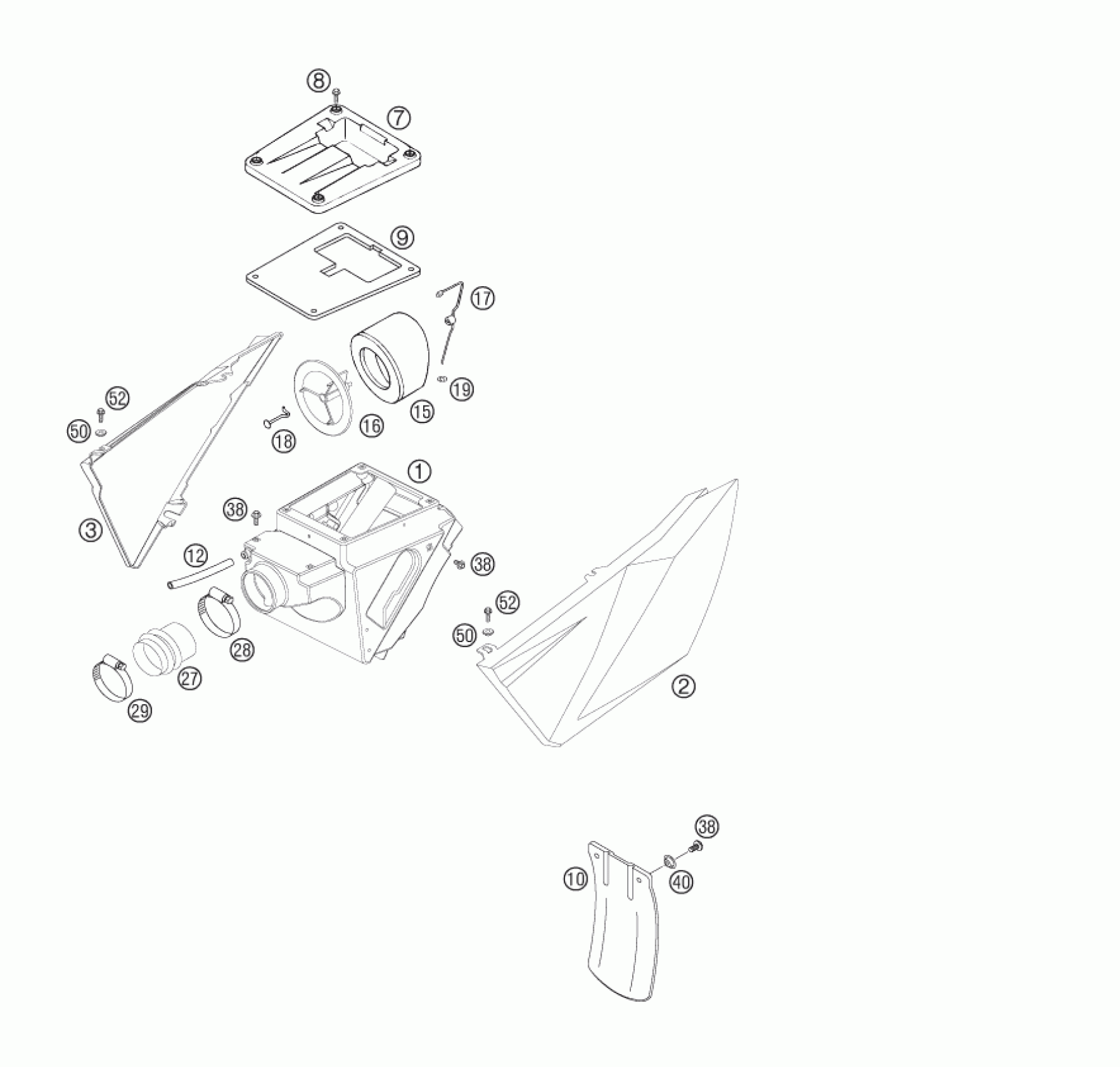

KTM 625 SMC 2006 AIR FILTER Diagram

#

Description
Price

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

1

FILTER BOX 05

58306001500

$149.21

2

FILTER BOX COVER L/S 05

58606003000

$13.94

3

FILTER BOX COVER R/S 05

58606004000

$16.51

7

FILTER BOX COVER CLOSED

58306102000

$20.16

8

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

9

GASKET FOR FILTER BOX COVER SC

58406089000

Unavailable

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

16

FILTER CARRIER 05

58606016000

$16.18

17

HOLDING HANGER FILTER DUKE '99

58706017000

$16.51

18

HOOK FOR FILTER BRACKET

58306017050

$11.28

19

CLAMPING DISK KS4

54606019004

$2.05

27

AIR FILTER BOOT 540/620/640

58006026500

$14.95

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07

38

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

40

BUCKET

72210079000

$3.00

50

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

52

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08
