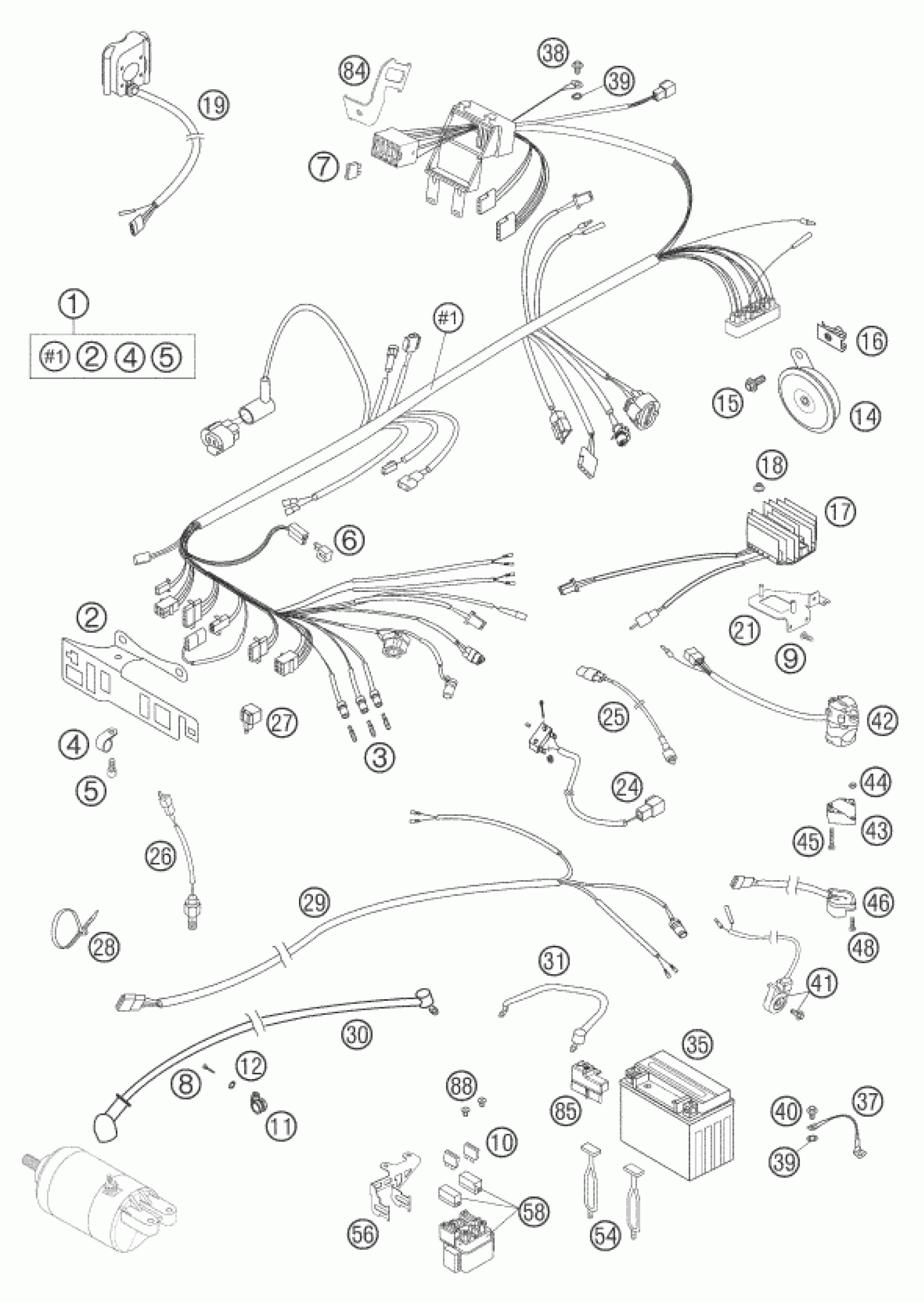

KTM 625 SMC 2005 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS 625 SMC 05

58611075100

Unavailable

2

SUPPORT BRACKET BLACK 2001

59011083000

$20.70

3

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

4

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

5

SHCS DIN 912 M5x8

0912050083

$1.49

6

DIODE S3H-15 97

58411096100

$9.81

7

Plug-in fuse, big 10A

58011109110

Unavailable

8

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

9

SCREW FOR PLASTIC 50X12

0016050121

$2.05

10

Plug-in fuse, big 20A

58011109120

Unavailable

11

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

12

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

14

DC HORN L.E.B. 03

50311060100

$32.44

15

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

16

clip nut M6

54603048100

$4.11

17

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

18

Self locking nut M6 - 10

56509064100

$2.05

19

START-STOP TIP SWITCH 2001

59011074200

$57.87

21

BRACKET REGULATOR 05

58611055000

$14.88

24

BRAKE LIGHT SWITCH FRONT SM 03

58411050000

$40.66

26

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

27

FLASHER UNIT 97

44611207200

$49.83

28

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

28

Cable tie 200/4.6mm black

44011076200

Unavailable

28

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

29

WIRING HARNESS REAR 05

58611076000

$10.67

30

STARTERCABLE L=810MM 05

58611059000

$14.51

31

BATTERY CABLE L=140MM 05

58611059050

$11.77

35

BATTERY 12V 8,6AH 03

58411053100

$309.38

37

GROUND CABLE L=80MM 05

58611097000

$8.33

38

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

39

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

40

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

41

SIDE STAND SWITCH CPL. '97

58411045000

$97.89

42

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

43

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

44

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

45

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

46

FLASHER SWITCH CEV '98

50311029000

$51.98

48

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

54

RUBBER L=145MM

50303018000

$6.44

56

BRACKET STARTER RELAY 05

58611058050

Unavailable

58

Starter reley 12V 99

58211058000

$72.64

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

84

BRACKET FUSE BOX 05

58611087050

Unavailable

85

TERMINAL POST COVER 05

58611059060

$3.02

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
