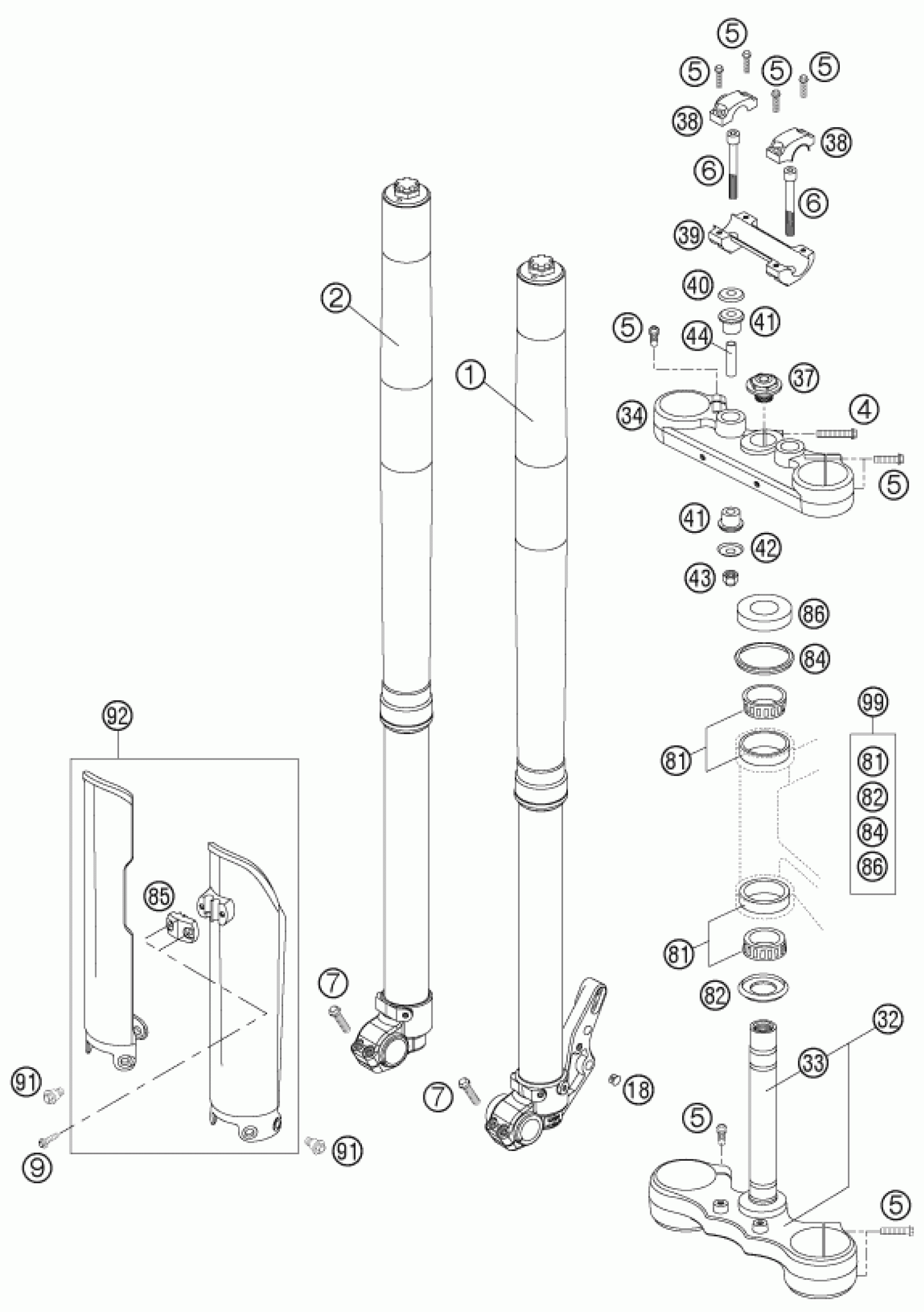

KTM 625 SMC 2005 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG L/S WP48 SM/SMC 05

14187A07LS

$684.00

FORK LEG R/S WP48 SM/SMC 05

14187A07RS

Unavailable

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

AH SCREW DIN6912-M10X70 10.9

0984100706

$5.51

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

PLASTIC CAP 3/8'' 2663

58301098000

$1.49

BOT.TRIPLE CLAMP CPL. SM 03

58401132100

Unavailable

FORK TUBE L=244 '91

50101033100

$85.17

TOP TRIPLE CLAMP 660 SM 03

58401234000

$142.17

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

washer 10.5x32x2

56401042000

$4.11

rubber bushing

56401040000

$5.23

WASHER 10,5X31

56401142000

$4.11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

SPACER TUBE 10,2X12X44

56401041100

$5.88

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

STEARING HEAD GASKET TOP

54601184000

$7.10

CLAMP F.SPEED CABLE D=8MM 2001

58201085000

$1.82

STEERING HEAD COVER

54201086000

$8.50

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20
