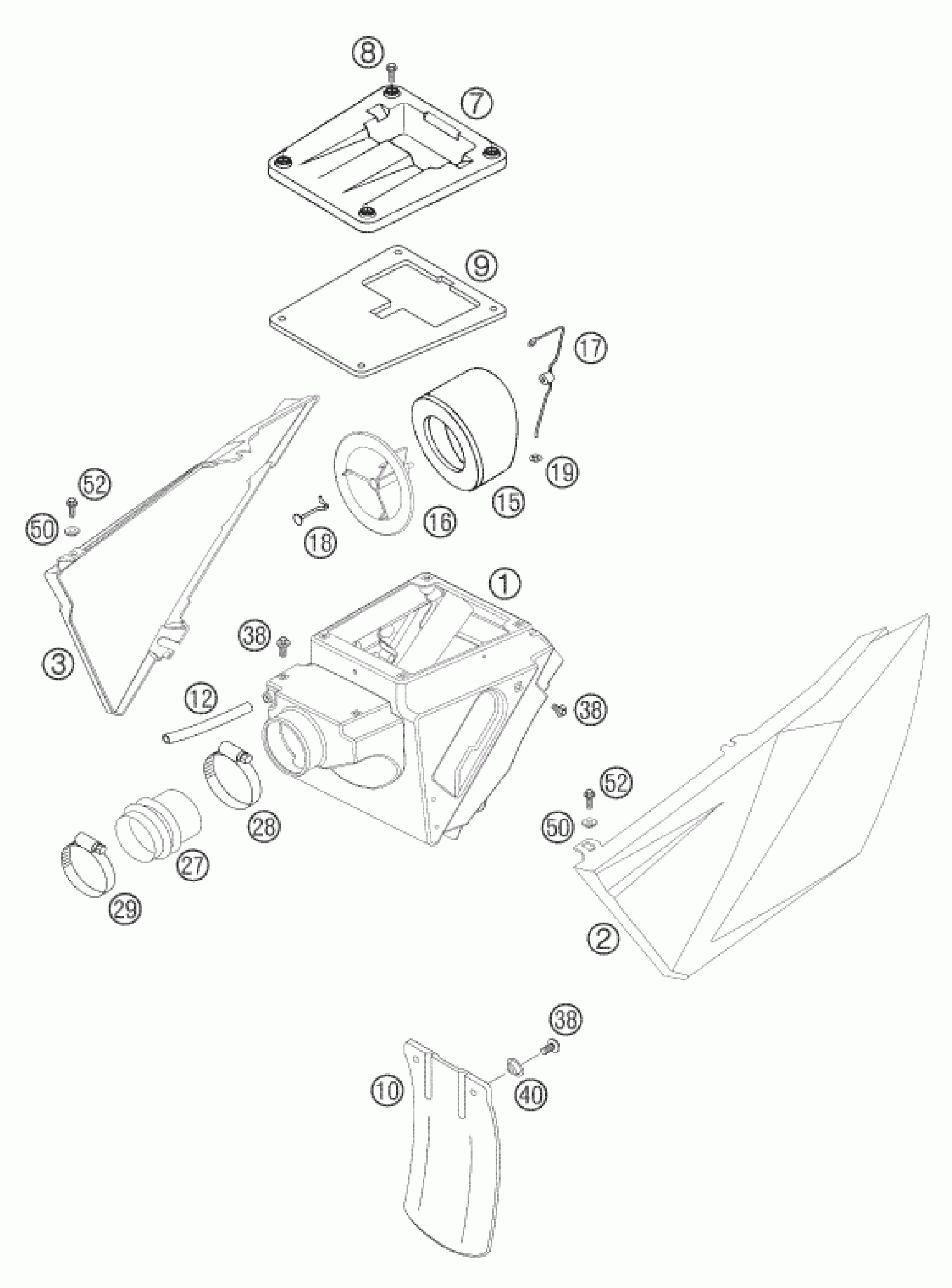

KTM 625 SMC 2005 AIR FILTER Diagram

FILTER BOX 05

58306001500

$149.21

FILTER BOX COVER L/S 05

58606003000

$13.94

FILTER BOX COVER R/S 05

58606004000

$16.51

FILTER BOX COVER CLOSED

58306102000

$20.16

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

GASKET FOR FILTER BOX COVER SC

58406089000

Unavailable

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

HOSE 10X14 PER METER

57005020001

Unavailable

AIRFILTER

56506015100

$28.13

FILTER CARRIER 05

58606016000

$16.18

HOLDING HANGER FILTER DUKE '99

58706017000

$16.51

HOOK FOR FILTER BRACKET

58306017050

$11.28

CLAMPING DISK KS4

54606019004

$2.05

AIR FILTER BOOT 540/620/640

58006026500

$14.95

HOSE CLAMP 60-80MM

55006028000

$4.11

HOSE CLAMP 50-70MM

51006027000

$6.07

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

BUCKET

72210079000

$3.00

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96
