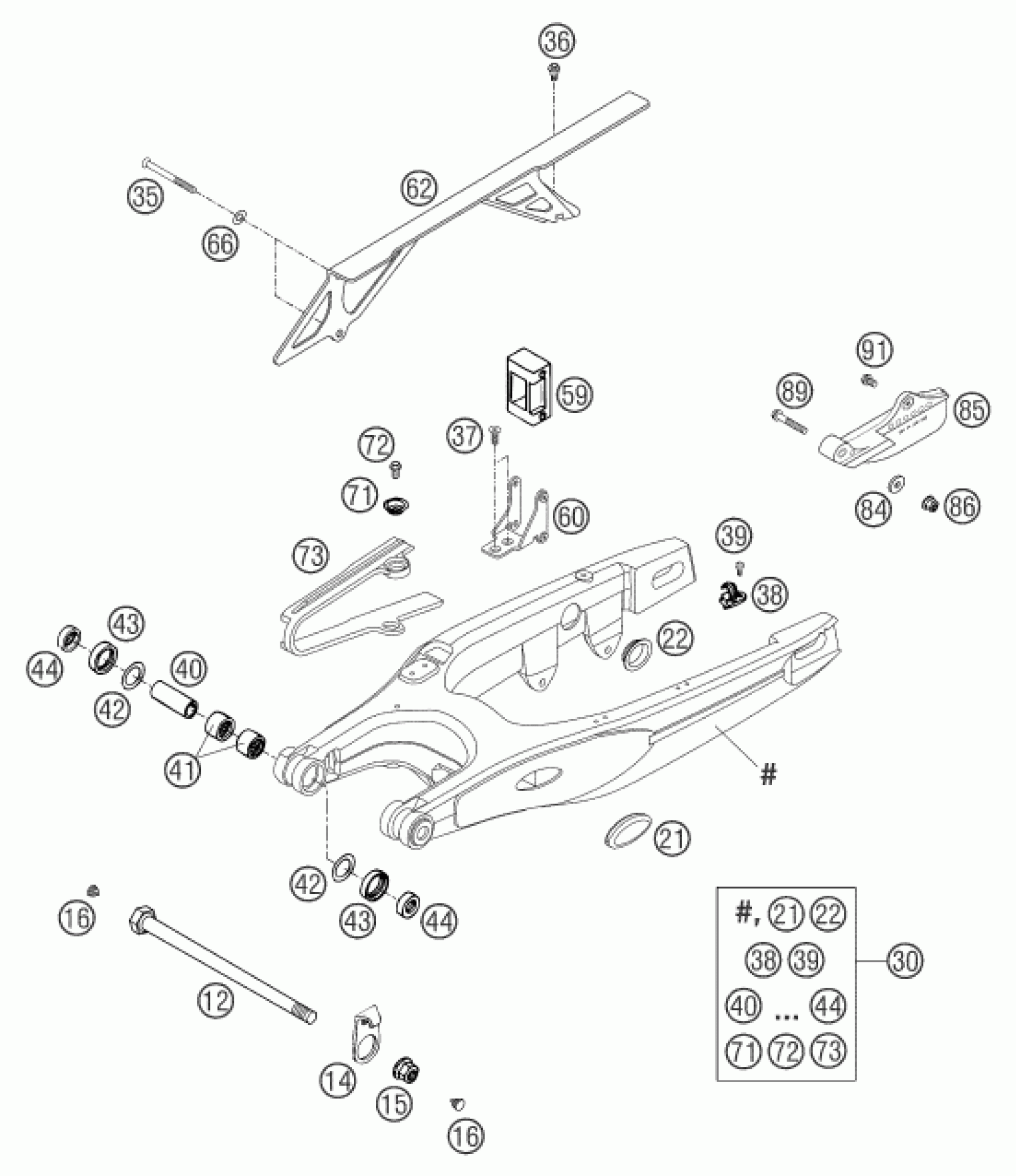

KTM 625 SMC 2004 SWING ARM Diagram

#

Description
Price

12

SWINGARM BOLT KPL. L=253

54603014100

$37.03

14

BRAKE HOSE GUIDE '89

50230211000

$3.98

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

PLASTIC CAP SFL10

54403135000

Unavailable

21

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

22

CLOSING COVER ROUND 03

58404041100

$1.49

30

SWINGARM CPL. SUPERMOTO

58404130044

Unavailable

35

FLAT HEAD SCREW DIN7991 M6X55

0991060553

$1.57

36

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

37

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

38

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

39

SPECIAL SCREW M 5,0X10

0010050103

$2.05

40

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

41

NEEDLE BUSH HK2012V

59004031000

$15.51

42

WASHER 20X32X0,8

59004033100

$1.73

43

radial shaft seal 25x32x7

0760253270

$6.63

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

59

CHAIN GUIDE SM/DUKE 2002

51007066600

$10.86

60

SUPPORT F. CHAIN GUIDE 03

58307068300

$21.59

62

CHAINGUARD SM, DUKE 2002

58404060000

$28.63

66

WASHER F. CHAINGUARD SM 02

58404060051

$4.35

71

BUCKET

72210079000

$3.00

72

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

73

CHAIN SLIDING GUARD SM 03

58404066000

$12.99

84

STEEL WASHER 6,4X17X3

50232050001

$5.23

85

CHAIN GUIDE CPL. REAR LC4 '98

58404070000

$20.41

86

Self locking nut M6 - 10

56509064100

$2.05

89

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

91

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
