SHOCK ABSORBER DISASSEMBLED

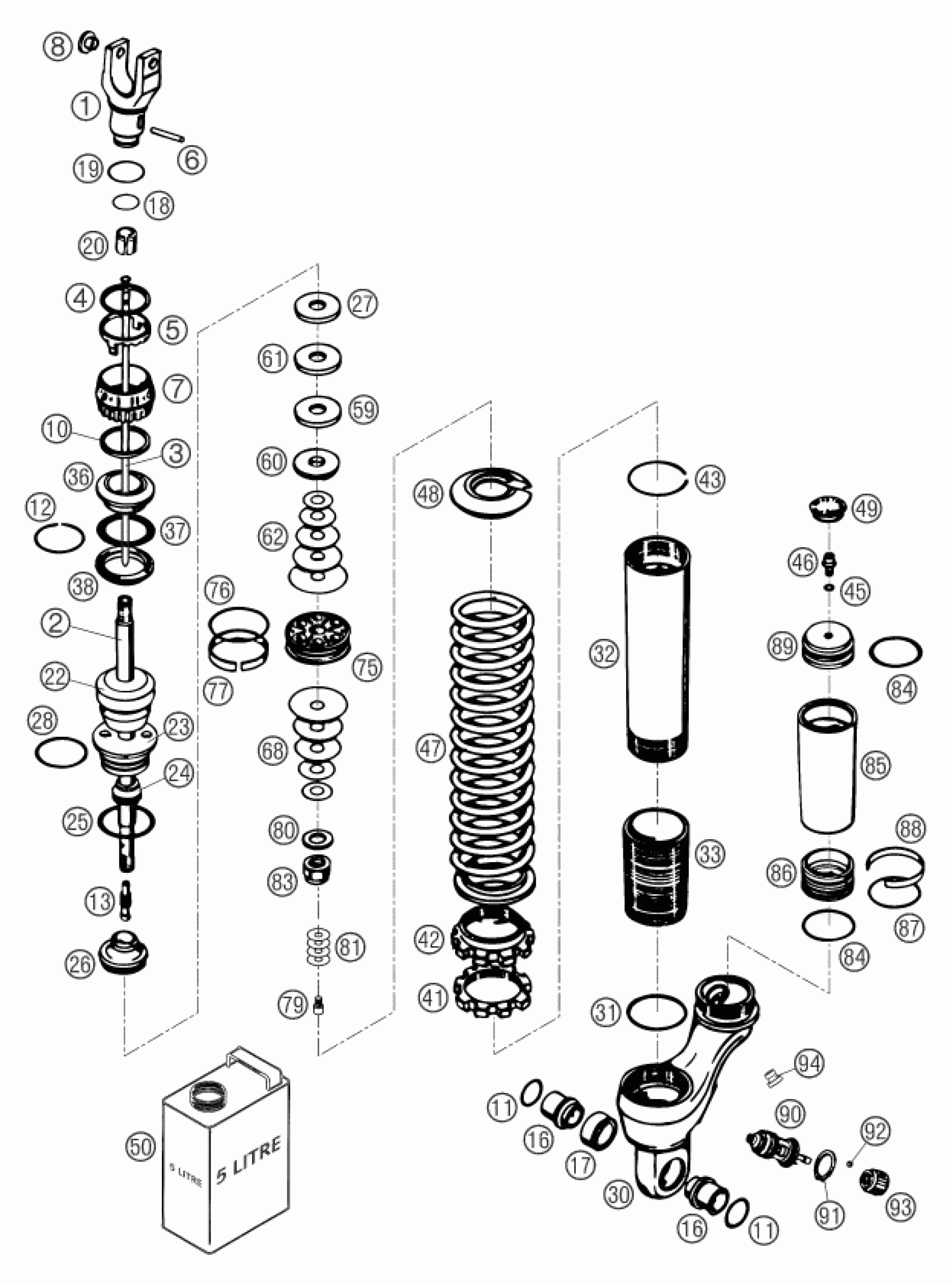

KTM 625 SMC 2004 SHOCK ABSORBER DISASSEMBLED Diagram
#
1
SHOCK ABS. BOTTOM-FORK L75B
46811558
$171.26
2
PISTON ROD D=14 BA M14X1
46811560S
$418.31
3
NEEDLE CPL. D=4 BA, L=183
46811545S
$73.70
4
O-RING 36X0,5
46811222
$2.32
5
WASHER
46811263
$10.12
6
PIN 4X35
46811261
$3.78
7
ADJ. KNOB D=41
46811262
$12.59
8
Bush M10x12/15/13x9,5
46811205
$6.72
10
Shaft seal 29x35x3
46811221
$11.45
11
SEAL KGW
46811050
$8.13
12
CIRCLIP 22X1,2
46811268
$1.60
13
NEEDLE SEAT 5X17,25
46811259
$70.29
16
Bearing bush 10x15,05/22/19x24
46811078
$11.33
17
Ball joint bearing 15x25x13
46811027
$29.35
18
O-ring 21x2 NBR70
46811499
$1.49
19
O-RING NBR 32X1,5
46811500
$1.49
22
Rubber pad 13,9x39x43 white
46810365
$48.63
23
SCREW CAP M47,4, H=22,5
46811045
$53.22
24
DUST SEAL 1424
46811044
$19.35
25
O-ring 35x5 NBR70
46810325
$1.49
26
ADAPTER CPL. D=46, H=23 BA
46811540S1
$90.67
27
SPACER 35X14X2
46811002
Unavailable
28
O-ring 40x2 NBR70 black
46811042
$2.05
30
SHOCK ABSORB. TOP H-35/79 84
46811481
Unavailable
31
O-ring 48x2 NBR70 siliconized
46810016
$1.49
32
TUBE L=180
46810093
$97.28
33
THREADED BUSH L=60 BLACK
46810346
$58.17
36
BUSHING RING D=55X19
46811561
$22.15
37
O-RING NBR 32X8
46811512
$1.49
38
SUPPORT RING D=55X7,5
46811511
$27.38
41
COUNTERNUT
46810109
$77.12
42
ADJUSTING NUT
46810108
$81.77
43
Round-wire snap ring 49x1,5
46810010
$3.08
45
O-ring 5,28x1,78 NBR70 black
46810893
$1.49
46
HS lock screw M5x6
36120151
$1.86
47
SPRING 70-260 (59), D=12
91010110
$115.98
47
SPRING 75-260 (59)
91010111
Unavailable
47
SPRING WP 80-260
91010154
Unavailable
48
SPRING RETAINER D=58,H=13,L=15
46810063
Unavailable
49
Rubber cap do not open 22x5,5
46811208
$3.08
50
SHOCK ABSORBER FLUID 5 LT '03
50180342S1
$149.59
59
SPACER 14X35X5
46811004
$10.83
60
REBOUND BUSH PLANE H=6,5
46811216
$15.29
61
Bush 14x35x10
46811005
$16.27
62
BACKPLATE 12X16X0,30
46810636
$2.05
62
SHIM 12X26X0,20
46810491
$2.05
62
SHIM 12X28X0,20
46810492
$2.05
62
SHIM 12X30X0,20
46810493
$2.05
62
SHIM 12X40X0,20
46810498
$2.05
62
SHIM 12X40X0,25
46810507
$2.05
62
SHIM 12X32X0,15
46810521
$2.05
62
SHIM 12X34X0,15
46810522
$2.05
62
SHIM 12X36X0,15
46810523
$2.05
62
SHIM 12X38X0,15
46810524
$2.05
68
SHIM 12X28X0,15
46810519
$2.05
68
Shim 28,25x32x0,30
46811636
$23.09
68
SHIM 12X32X0,15
46810521
$2.05
68
SHIM 12X28X0,20
46810492
$2.05
68
SHIM 12X24X0,20
46810490
$2.05
68
Shim 12x18x0,30
46810638
$2.05
68
Washer 12x24x2,5
46811258
$24.77
75
PISTON 6+6XD=7 BA
46811218
Unavailable
76
O-ring 37x,82x1,78 Viton70 gre
46810035
$2.05
77
Piston ring 43,95x45,95x8
46811206
$17.76
79
BLEED SCREW M6X0,5
46180052
$8.72
80
SHIM 12X32X0,15
46810521
$2.05
81
Shim 6x18x0,10
40540403
$2.05
81
Shim 6x16x0,10
40540402
$2.05
81
Shim 6x14x0,10
40540401
$2.05
81
Shim 6x8,5x0,30
40540448
$2.05
83
Piston rod nut M12x1
46180060
$32.67
84
O-ring 45x2 NBR70 siliconized
46810340
$1.49
85
RESERVOIR SCREW L=123 GREY
46811453
$113.54
86
SEPARATION PISTON D=46
46810322
$35.58
87
O-ring 35x5 Viton70
46811043
$4.64
88
Pistonring 42,5x45,5x3,9
46810324
$32.53
89
RESERVOIR CAP D=46
46811209
Unavailable
90
CC-COMPRE.DAMPING CONTROL CPL.
46811539S
Unavailable
91
LOCK WASHER JV24
46810334
$1.60
92
Steel ball 4.75mm
46810333
$1.49
93
ADJUSTING KNOB CC-MECH. CPL.
46811272S
Unavailable
94
HS cylinder-head screw R1/8 l8
50180095
$2.42
