Partiron

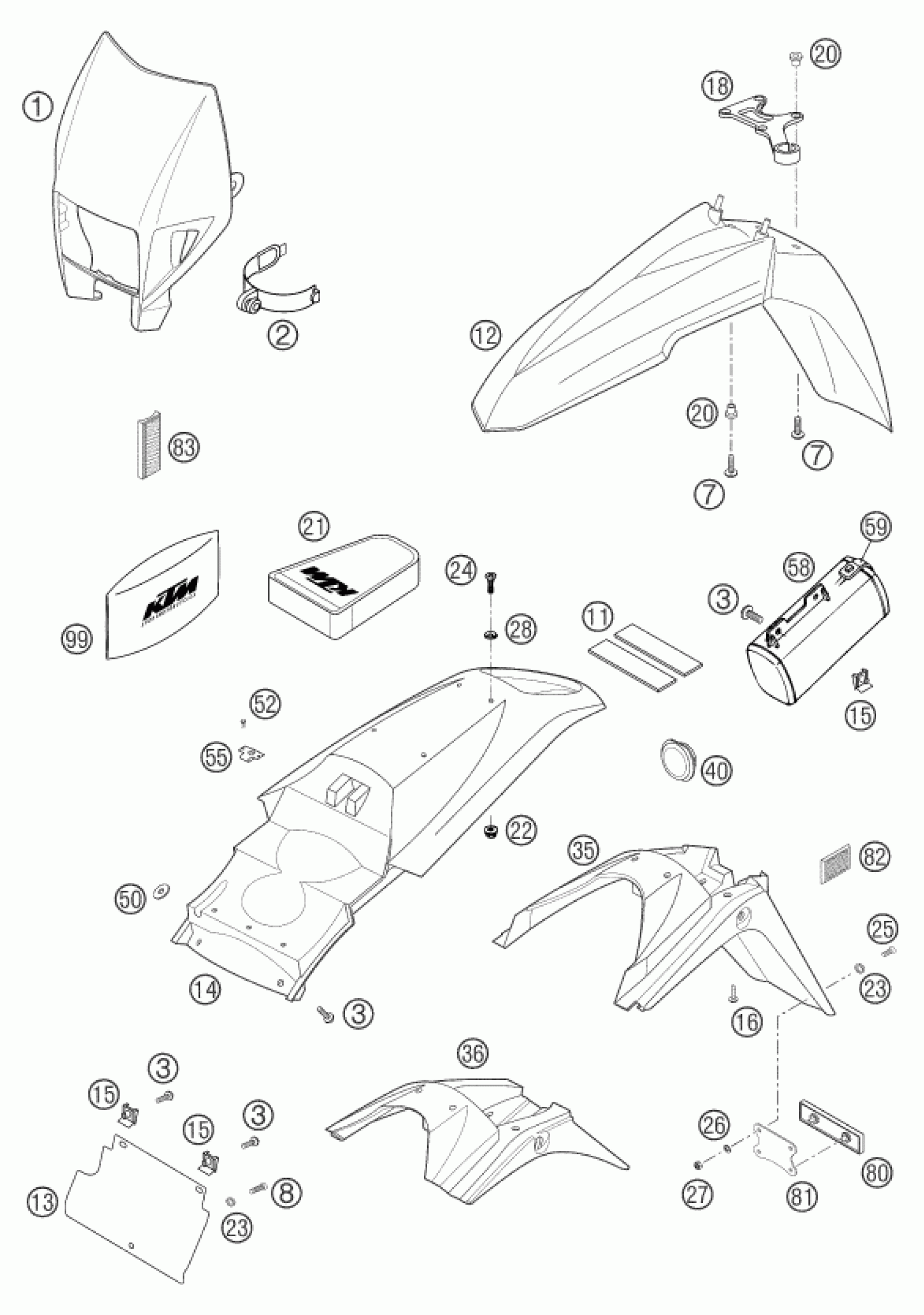

KTM 625 SMC 2004 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

Unavailable

2

MASK RUBBER UFO WP '95

50211086000

Unavailable

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

8

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

11

RUBBER STRIP 85X25X3 MM

54601097000

Unavailable

12

FENDER FRONT ORANGE 02

5030801020004

Unavailable

13

FENDER EXTENSION LC4-E '97

58308013250

Unavailable

14

FENDER REAR ORANGE LC4 01

5840801410004

Unavailable

15

clip nut M6

54603048100

Unavailable

16

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

18

BRAKE HOSE GUIDE 2000

59008019000

Unavailable

20

SPACER BUSHING FRONT FENDER

58408009050

Unavailable

21

TOOL BAG BLACK SC '99

58312078000

Unavailable

22

Self locking nut M6 - 10

56509064100

Unavailable

23

WASHER 6MM

40006006000

Unavailable

24

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

26

WASHER DIN0125-A 5,3

0125050003

Unavailable

27

Self locking nut DIN 985 M5

0985050003

Unavailable

28

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

35

NUMB.PLATE CARRIER BLACK LC4

58408015000

Unavailable

36

NUMB.PLATE CARRIER BLACK SC'99

58308015100

Unavailable

40

RUBBER FOR FENDER REAR

58414040050

Unavailable

50

WASHER 10,5 X 21 X 3

31004001100

Unavailable

52

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

55

THRUST BEARING QUICK RELEASE

58307042051

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

80

REFLECTOR RED

58412080000

Unavailable

81

BRACKET FOR REFLECTOR

58412080050

Unavailable

82

SIDE REFLECTOR RED REAR

16512180100

Unavailable

83

REFLECTOR YELLOW '99

58412080100

Unavailable

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
