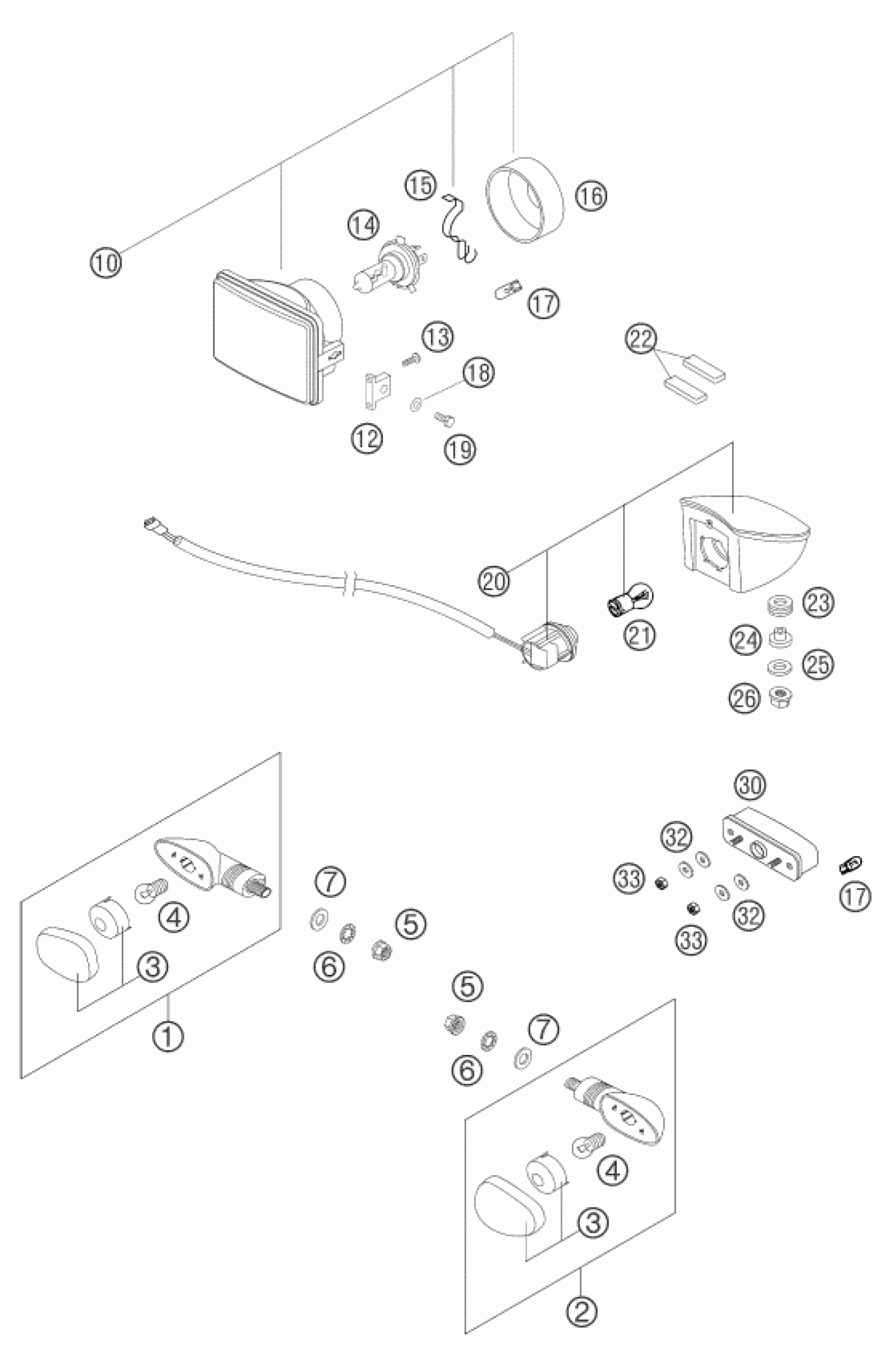

KTM 625 SMC 2004 LIGHTING SYSTEM Diagram

#

Description
Price

1

FLASHER CPL.FRONT R/S REAR L/S

58414026100

Unavailable

4

BULB 12V 10W (BA15S)

44111015100

Unavailable

5

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

6

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

2

FLASHER CPL.FRONT L/S REAR R/S

58414025100

Unavailable

3

FLASHER LENS L/S & R/S 02

58414028100

Unavailable

7

washer DIN 125 A 10.5

0125100003

Unavailable

10

HEAD LIGHT 186(RI)''1003202 R'

59014002000

Unavailable

10

HEAD LIGHT 186(LE)''1003203 L'

59014002100

Unavailable

10

HEAD LIGHT SAE 547 USA H4

58414001300

Unavailable

12

HEAD LIGHT SUPPORT 2001

58414010100

Unavailable

13

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

14

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

14

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

15

BULB HOLDER

49011436100

Unavailable

16

RUBBER CAP

50211537000

Unavailable

17

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

18

WASHER DIN0125-A 6,4

0125060003

Unavailable

19

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

20

REAR LIGHT CPL. LC4 2001

58414040100

Unavailable

21

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

22

METAMOLL FOR REARLIGHT 99

58414040051

Unavailable

23

RUBBER SLEEVE D=12MM

41001052000

Unavailable

24

REAR LIGHT BUSHING

58714048000

Unavailable

25

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

26

Self locking nut M6 - 10

56509064100

Unavailable

30

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable

33

Self locking nut DIN 985 M5

0985050003

Unavailable
