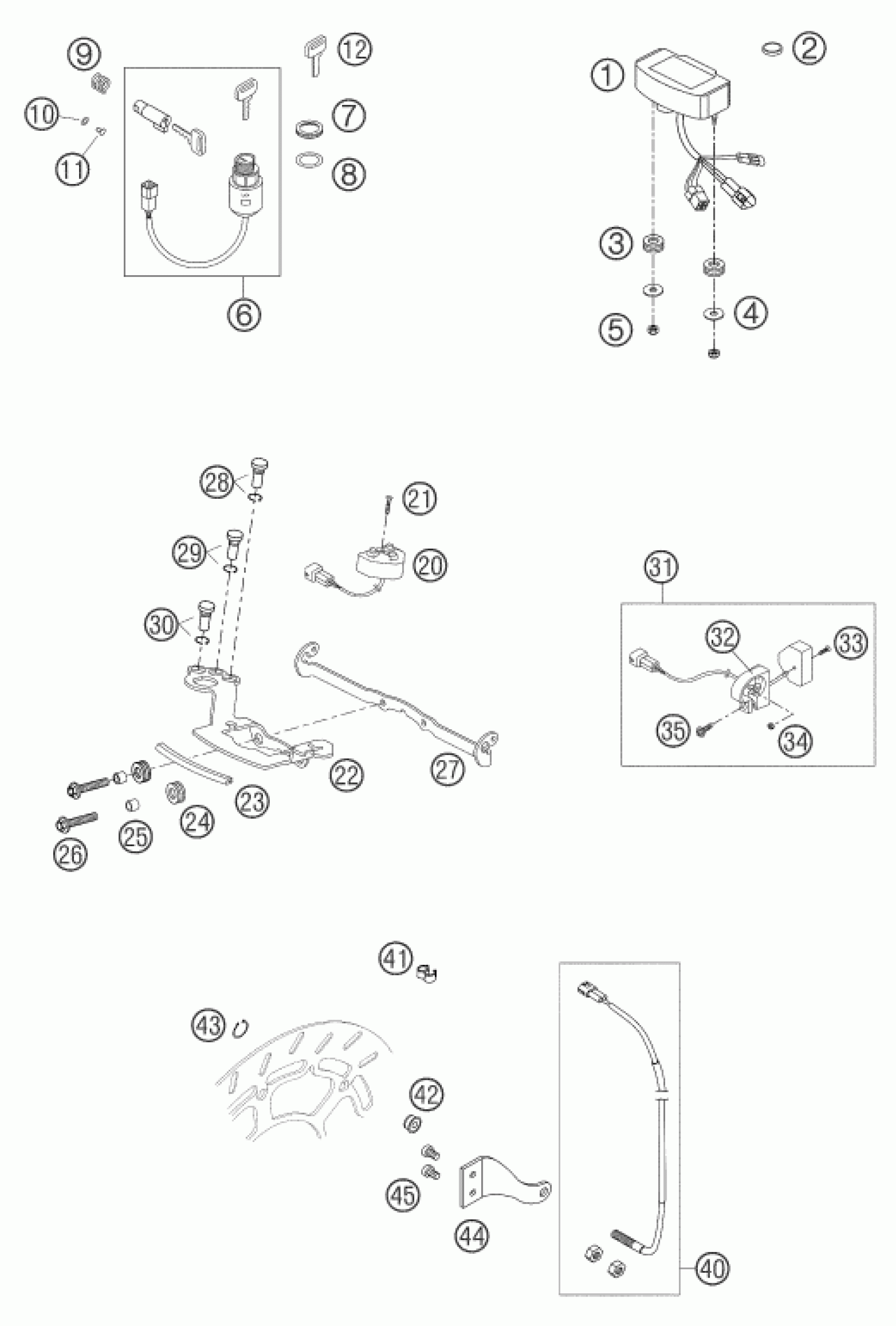

KTM 625 SMC 2004 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 17'' 0

58314069400

Unavailable

1

SPEEDOMETER MPH F. 17" 02

58314069500

Unavailable

2

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

3

rubber grommet 16x10.8x3

58214069051

Unavailable

4

washer DIN 9021 A - 5.3

0021050003

Unavailable

5

Self locking nut DIN 985 M5

0985050003

Unavailable

6

LOCK SYSTEM 625 SXC 03

58411066400

Unavailable

6

LOCK SYSTEM 625 SMC 04

58411066544

Unavailable

7

IGNITION LOCK NUT M24X1

50311066050

Unavailable

8

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

9

SPRING L=16MM

12003007052

Unavailable

10

SPRING WASHER DIN137 B3

0137030003

Unavailable

11

GROOVED NAIL RIVETO AF10

45002040091

Unavailable

12

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

20

TRIPMASTER-SWITCH DIGI-SPEEDO.

58314069200

Unavailable

21

FLAT HEAD SCREW M4X25

0965040251

Unavailable

22

SPEEDOMET.BRACKET 625 SXC 03

58314060200

Unavailable

23

EDGE PROTECTOR PER METER

58312085100

Unavailable

24

rubber grommet D=8mm open

31008060000

Unavailable

25

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

26

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

27

FLASHER BRACKET 2002

58314033100

Unavailable

28

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

29

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

30

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

Unavailable

31

TRIPMASTER-SWITCH W. CLAMP 03

50314068000

Unavailable

32

CLAMP FOR TRIPMASTER-SWITCH 03

50314068050

Unavailable

33

FLAT HEAD SCREW DIN0966-M 4X20

0965040125

Unavailable

34

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

35

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

40

SPEEDOM. CABLE (WITHOUT NUTS)

58314069251

Unavailable

41

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

42

SENSOR MAGNET ADVENTURE 01

58214069050

Unavailable

43

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

44

BRACKET F. SENSOR SM 03

58314052000

Unavailable

45

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

Unavailable
