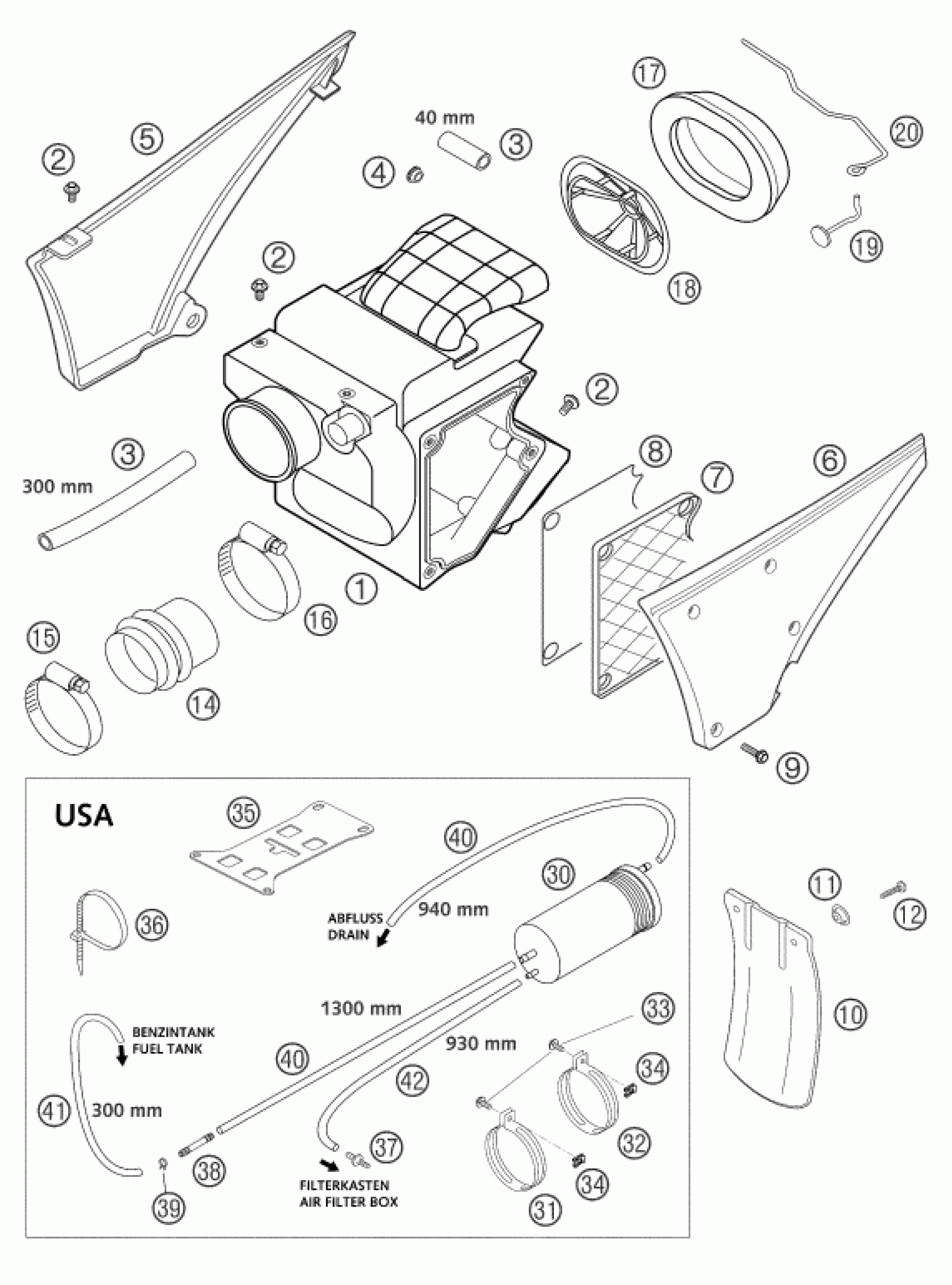

KTM 625 SMC 2004 AIR FILTER Diagram

#

Description
Price

1

FILTER BOX E-START 03

58406001200

$163.34

2

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

3

HOSE 10X14 PER METER

57005020001

Unavailable

4

PLUG

36111021000

$1.49

5

FILTER BOX COVER R/S LC4'98

58406004000

$20.07

6

FILTER BOX COVER L/S LC4'98

58406003100

Unavailable

7

CARRIER FILTER BOX GASKET '98

58406003150

$4.97

8

GASKET FILTER BOX COVER LC4'98

58406090100

$10.37

9

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

11

BUCKET

72210079000

$3.00

12

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

14

AIR FILTER BOOT 540/620/640

58006026500

$14.95

15

HOSE CLAMP 50-70MM

51006027000

$6.07

16

HOSE CLAMP 60-80MM

55006028000

$4.11

17

AIR FILTER

58406015100

$31.27

18

FILTER CARRIER '97

58406016000

$13.64

19

HOOK F.HOLDING HANG.FILTER '97

58406017050

$7.38

20

HOLDING HANGER FOR FILTER '98

58406017100

$15.43

30

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

31

CLAMP FOR FILTER KNECHT

58307083000

Unavailable

32

CLAMP FOR EVAP CANISTER

58307083100

$9.04

33

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

34

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

35

BRACKET EVAP.CANISTER 04

58415002000

Unavailable

36

Cable tie 200/4.6mm black

44011076200

Unavailable

37

HOSE CONNECTION FOR OILTANK

52338061050

$22.13

38

HOSE CONNECTOR GS6 03

60015021000

$5.23

39

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

40

HOSE 6X12 PER METER

60007116001

$16.07

41

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

42

PVC-HOSE 5 X 8 MM

31007007001

$5.88
