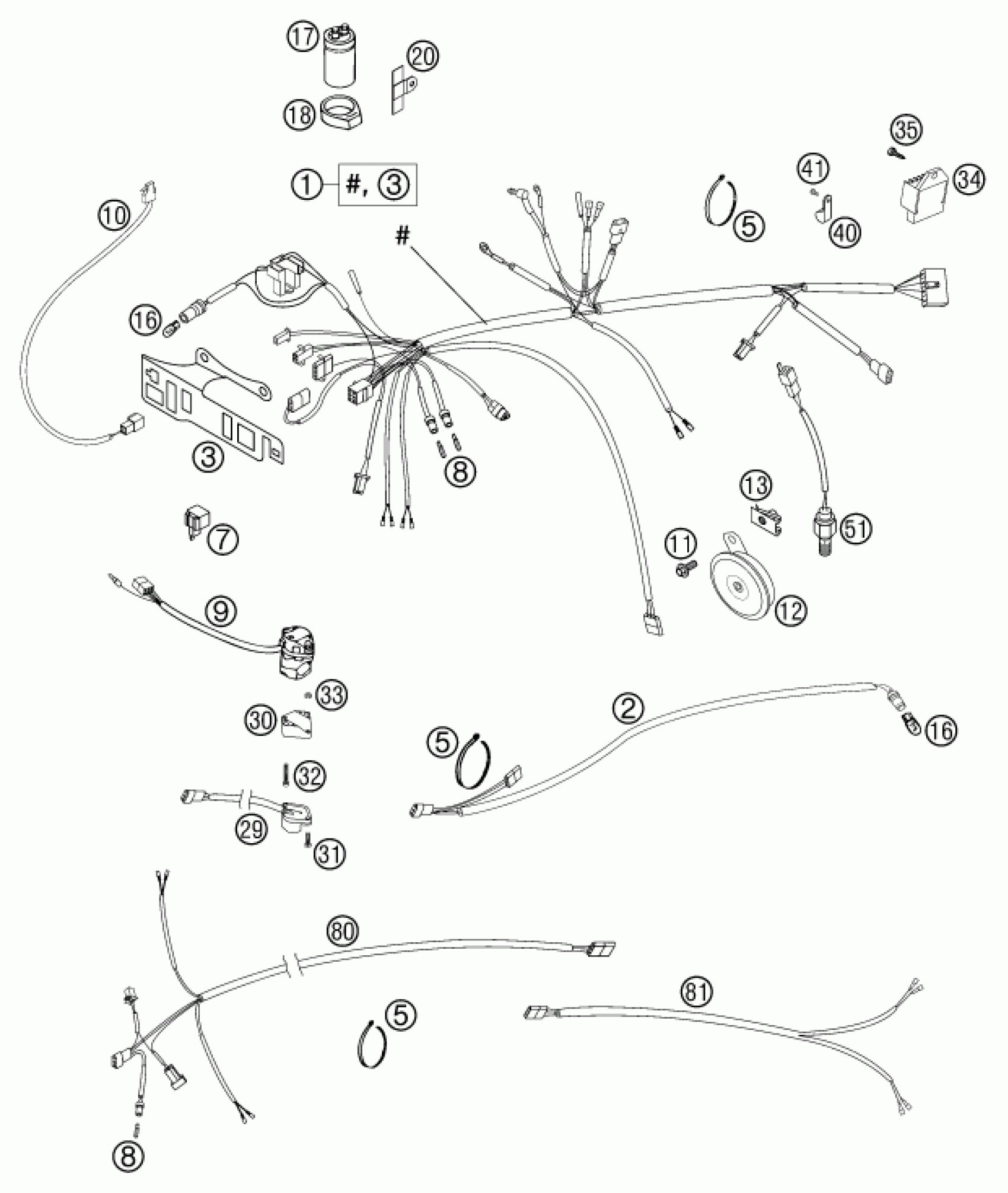

KTM 625 SC 2002 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS SC 02

58311375350

Unavailable

2

WIRING H. NUMBER P. LIGHT 2001

58411047000

$13.00

3

CONNECTOR SUPPORT 20

58311083100

Unavailable

5

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

9

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

10

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

11

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

12

DC HORN 12V K80/L LEB

50311060000

$32.16

13

clip nut M6

54603048100

$4.11

16

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

35

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

40

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

41

SCREW FOR PLASTIC 50X12

0016050121

$2.05

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

80

FLASH.WIRINGHARNESS FRONT 2001

59011080000

$35.24

81

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19
