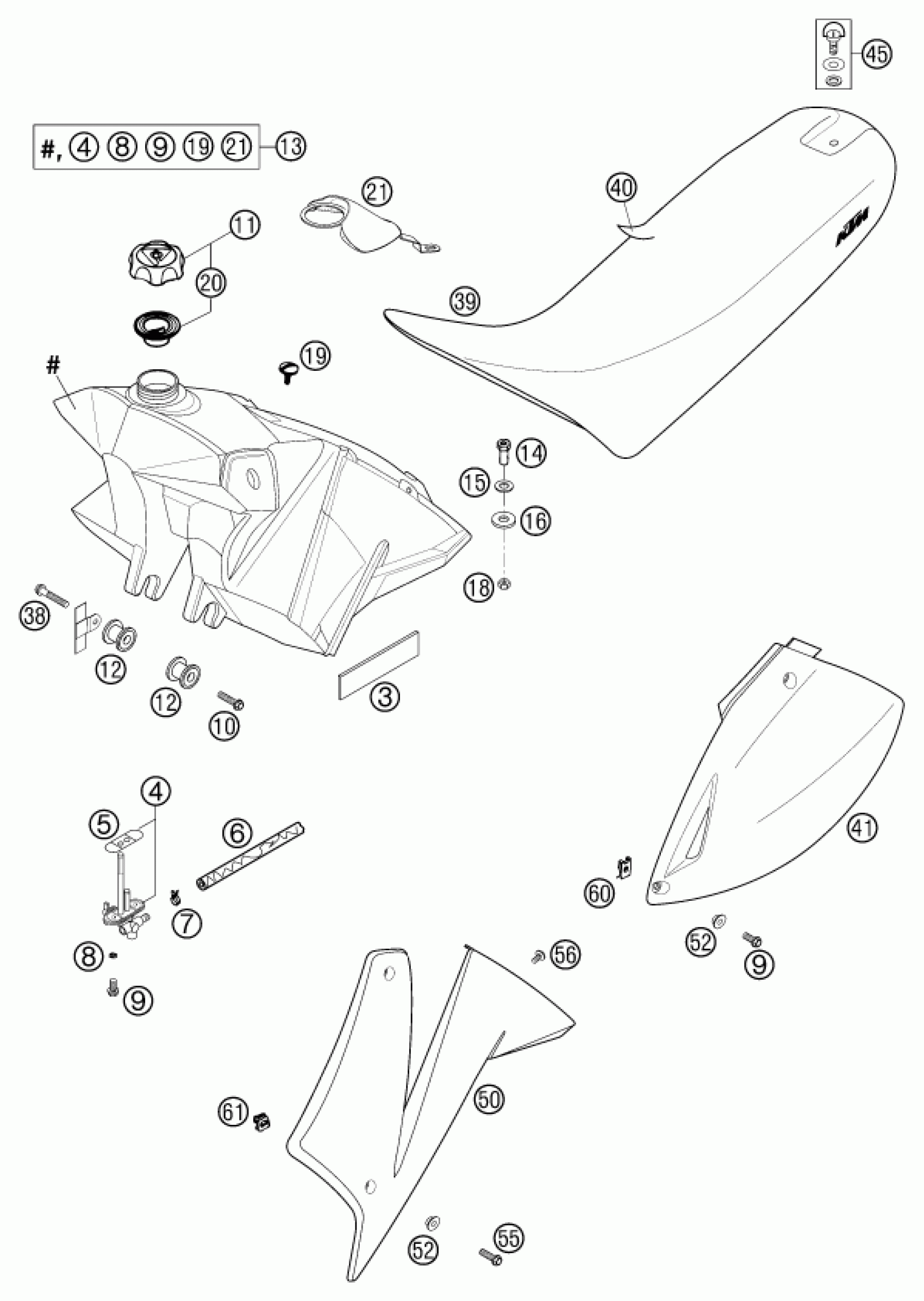

KTM 625 SC 2002 TANK, SEAT Diagram

#

Description
Price

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK MIKUNI CK-84 '96

58307005100

$93.21

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

6

HOSE ID 7,5 PER METER

54435024001

Unavailable

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

FUEL TANK 9 LITER BLACK SC'99

58307013700

$502.84

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

20

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

21

GENITALPROTECTOR LC4 2000

58307013750

$17.68

38

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

39

SEAT SC 2002

58307340800

Unavailable

40

SEAT COVER SC 2002

58307340850

Unavailable

41

SIDE COVER L/S BLACK 1998

5840804100030

$20.98

41

% SIDE COVER R/S BLACK 1998

5840804210030

$20.98

45

QUICK RELEASE CPL. '96

58307040551

$24.21

50

SPOILER L/S ORANGE LC4 '98

5840805000004

Unavailable

50

SPOILER R/S ORANGE LC4 '98

5840805100004

$51.88

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

60

clip nut M6

54603048100

$4.11

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11
