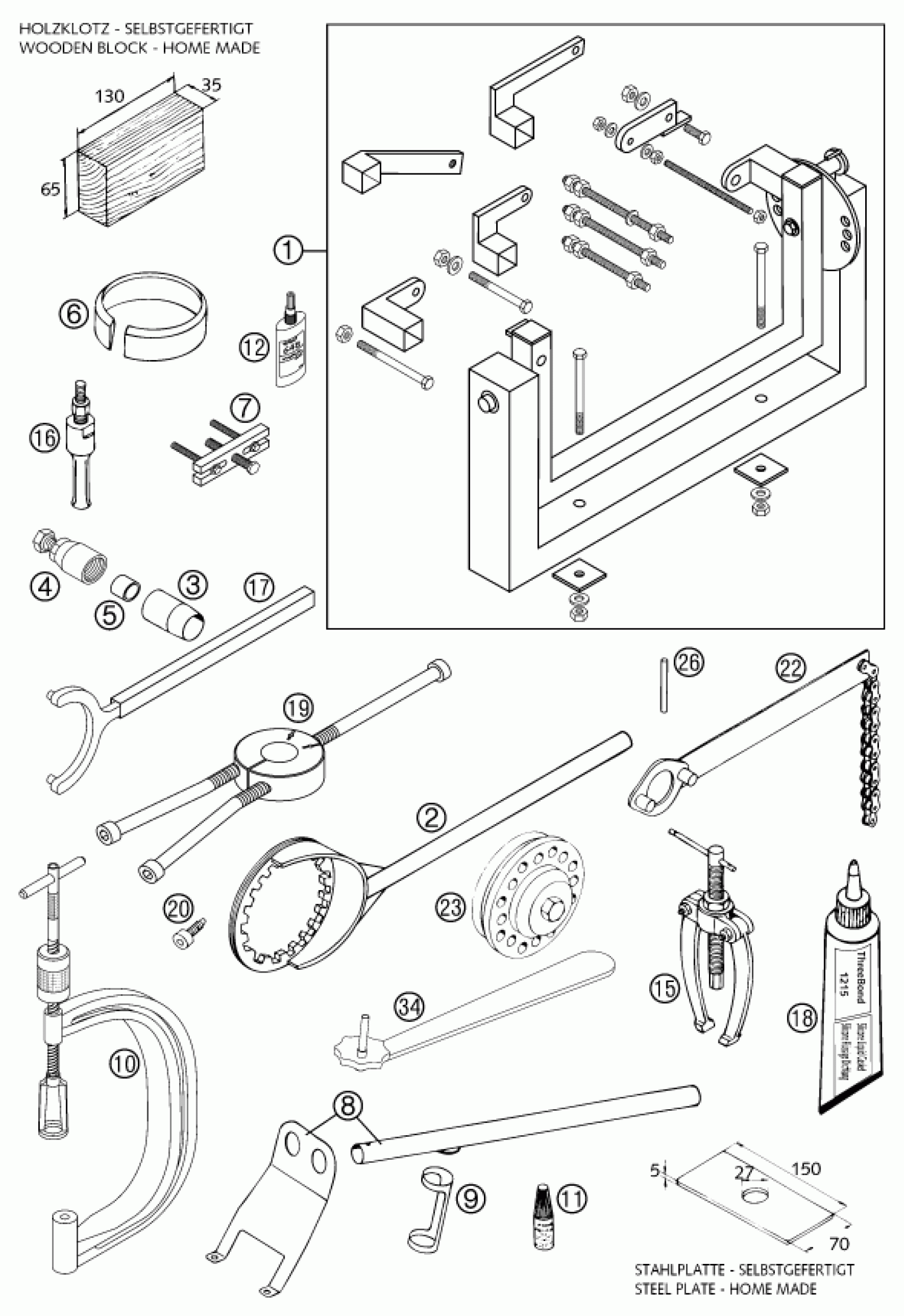

KTM 625 SC 2002 Special tools (engine) Diagram

#

Description
Price

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

CLUTCH HOLDER D=160MM LC4'94

58329003000

$113.09

3

MOUNTING SLEEVE D=25MM

58012005025

$36.46

4

FLYWHEEL EXTRACTOR

58012009000

$47.90

5

PROTECTION CAP CRANKSHAFT M12

51012016000

$40.31

6

PISTON RING COMPRESSOR D=101MM

58012015101

$85.15

7

EXTRACT.PRIM.GEAR-INNER CLUT

59029021000

Unavailable

8

VALVE INSTALLATION KIT

58012019000

$109.58

9

PUSH INSERT

6276470

Unavailable

10

VALVE SPRING LEVER

59029019000

$415.46

11

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

12

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

15

BUSHING EXTRACTOR

15112017000

$179.32

16

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

16

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

17

HOLDING WRENCH FOR WHEEL

58429012000

$110.60

18

SILICON GASKET THREE-BOND

309098

$28.88

19

MOUNTING TOOL F.BEARING NJ 207

58429037043

$91.88

19

MOUNTING TOOL F.BEARING NJ 306

58429037040

$91.62

20

LOCATING SCREW M8 L=23

58030080000

$17.66

22

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

23

RIVETTING TOOL FOR CLUTCH

54629027000

$229.84

34

WRENCH FMIXTURE CONTROL SCREW

59029034000

$45.11

26

LIMIT PLUG GAUGE F.VALVE GUIDE

58029026007

$48.10
