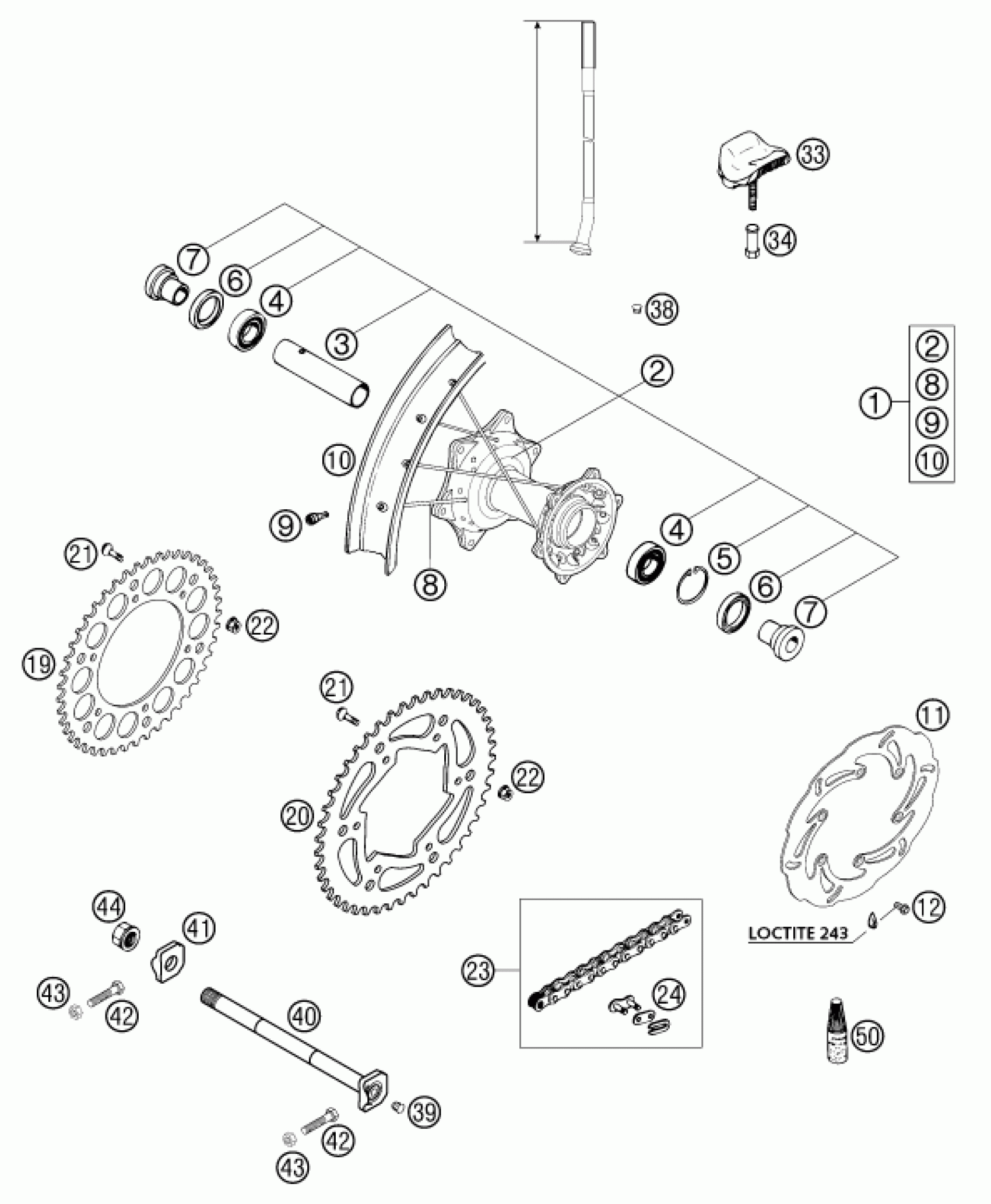

KTM 625 SC 2002 REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL CPL.2.15X18''DID '00

50310001344

Unavailable

2

REARWHEEL HUB CPL.125-380 '00

50310010044

Unavailable

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

BUSHING FOR HUB

54610016000

Unavailable

8

SPOKE M5X197-10G 18'' DDE

50310071197

Unavailable

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

10

REAR RIM 2,15X18'' DID

54610070300

Unavailable

11

BRAKE DISC REAR D=220MM 2000

58310060100

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265114

Unavailable

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265118

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

Unavailable

24

CONNECTING LINK

50310266000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

Unavailable

41

CHAIN TENSIONER '95

56510084100

Unavailable

42

HH SCREW M8X40 WS=10

50203030090

Unavailable

43

Hexagon nut DIN934 M8

0934080003

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
