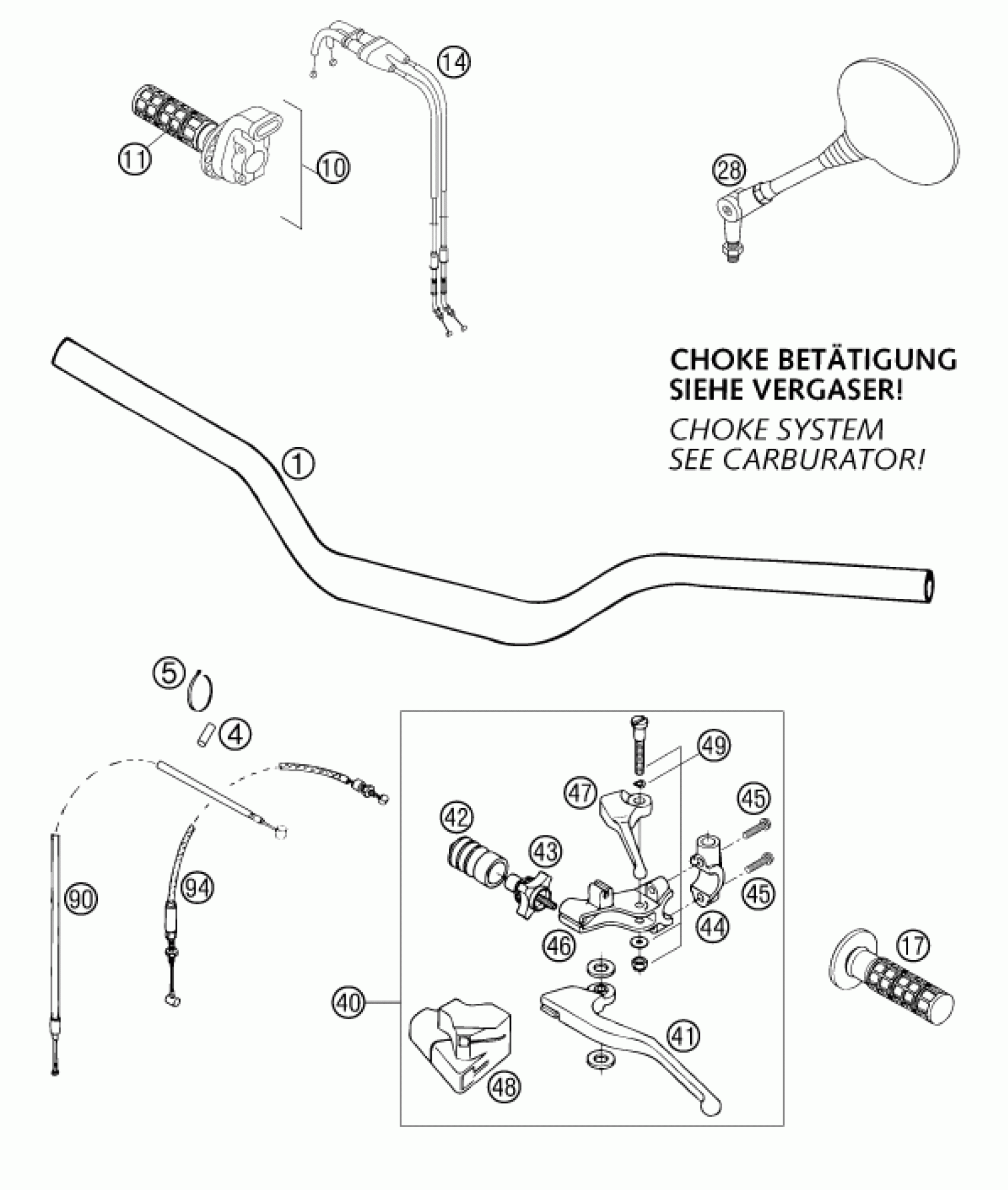

KTM 625 SC 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR 28MM HIGH 2000

59002001000

Unavailable

4

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

5

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

10

THROTTLE GRIP CPL.RACING2000

59002010200

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

14

THR.CABLE''OPEN-CLOSE'' RAC.20

59002091200

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

28

REAR MIRROR L/S FOLDABLE SC 02

58312040200

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

Unavailable

42

CLUTCH LEVER BOOT '95

58302126000

Unavailable

43

ADJUSTMENT SCREW CPL.M7

58302043000

Unavailable

44

CLAMP MIRROW M10x1,25

58302044000

Unavailable

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

46

JOINT DOMINO

58302023000

Unavailable

47

DECOMPRESSION LEVER LOOSE

58302047000

Unavailable

48

PROTECTING COVER

58302048000

Unavailable

49

LEVER SCREW CPL.

58302049000

Unavailable

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

Unavailable

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

Unavailable
