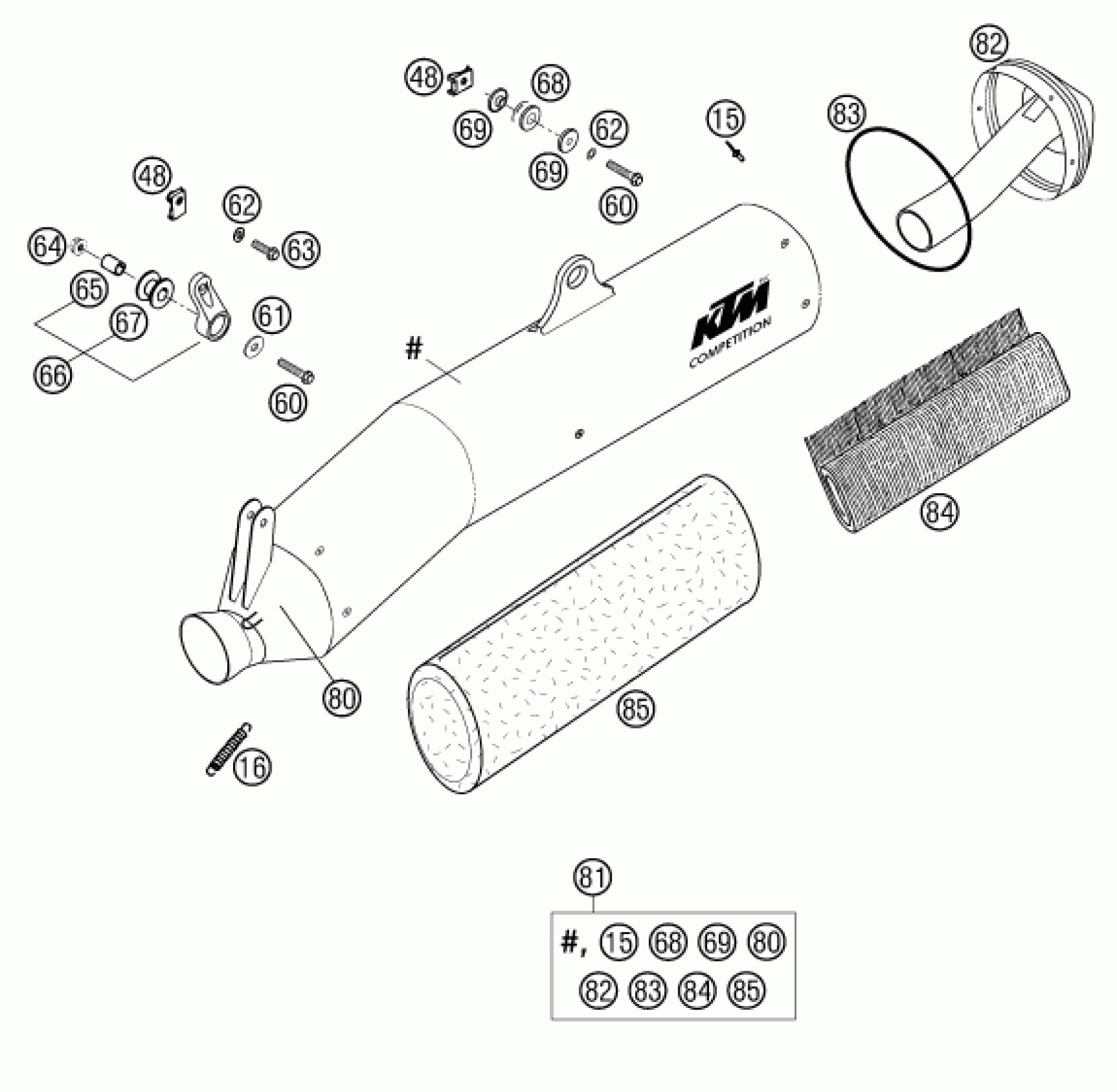

KTM 625 SC 2002 MAIN SILENCER Diagram

#

Description
Price

15

DUMMY RIVET 4,8X10,0 NIRO

0011481002

$3.08

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

48

clip nut M6

54603048100

$4.11

60

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

61

Washer DIN9021-A 6.4

0021060003

$2.05

62

spring washer DIN 137 B - 6

0137060003

$2.05

63

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

64

Self locking nut M6 - 10

56509064100

$2.05

65

BUSHING 7X12X15,4

54305069000

$4.11

66

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

67

damp. component silicone grey

54305068100

$8.31

68

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

69

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

80

SIL.-CONNECT.CAP CPL. SXC '98

58305081001

Unavailable

81

% SILENCER SC THROTTLED 2001

58305081200

Unavailable

81

% SILENCER SC UNTHROTTLED 20

58305081300

Unavailable

82

SIL.-END CAP THROTTLED 2001

58305081203

Unavailable

82

SIL.-END CAP UNTHROTTLED 2001

58305081204

$169.15

83

O-RING 82,14X3,53 SILICONE

0770223601

$8.87

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

$35.68

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

$82.08
