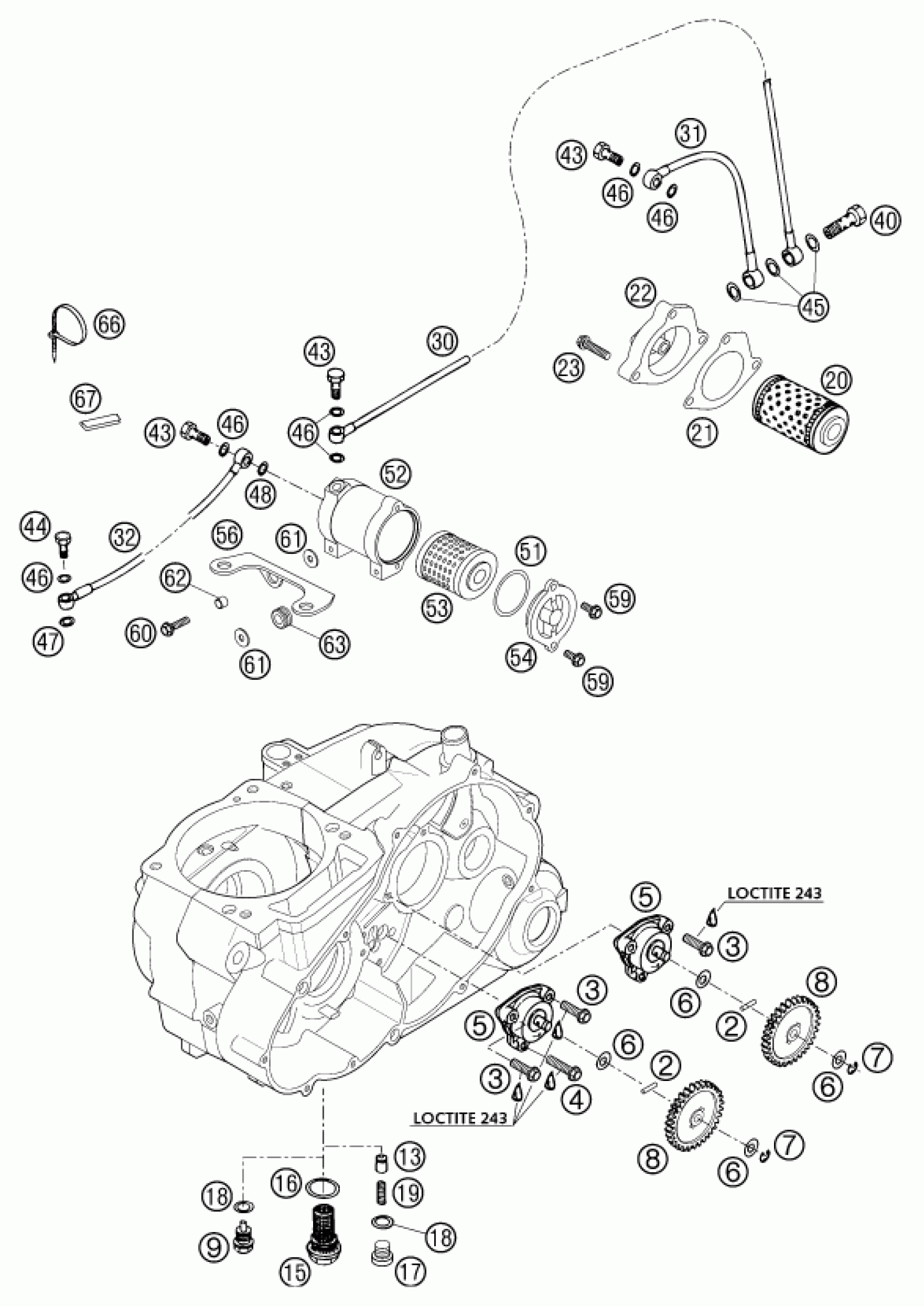

KTM 625 SC 2002 LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

5

OIL PUMP MIKUNI G-73-10

58038007700

$97.42

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

8

OIL PUMP GEAR 26-T

58438001000

$9.53

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

13

VALVE PISTON D=10MM

58038028000

$37.77

15

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

16

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

17

threaded plug DIN 908 M12x1.5

0908120153

$4.11

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

20

OIL FILTER LONG

58038005000

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

$7.00

22

OIL FILTER COVER 2001

58030008700

$126.79

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

40

DUAL BANJO BOLT M10 X 1

58038033100

$12.80

43

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

30

OIL LINE FILTER/MICROFILTER

58338234000

Unavailable

31

OIL LINE FILTER/INJECT.VA. R/S

58038334600

$27.71

32

OIL LINE MI.FILTER/CL.COVER 02

58338134000

Unavailable

44

JET SCREW M 8 X 1 ''150''

58038130000

$12.89

45

sealing ring DIN 7603 10x14x1

0603100141

$2.05

46

CU-SEAL RING DIN7603- 8X12X1

58038032000

Unavailable

47

CU-SEAL RING 8 X 12 X 1,5

58038032300

$2.05

48

COPPER GASKET 8,2X12X2 MM 2001

0603821220

$1.49

51

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

52

MICRO FILTER HOUSING 02

58338043000

Unavailable

53

OIL FILTER SHORT

59038046000

Unavailable

54

OIL FILTER COVER RACING

59038041000

$14.02

56

BRACKET FOR MICRO FILTER 02

58338040000

Unavailable

59

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

60

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

61

washer DIN 9021 A - 5.3

0021050003

$1.49

62

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

63

rubber grommet D=8mm open

31008060000

$2.05

66

Cable tie 200/4.6mm black

44011076200

$1.49

67

BORDER PROTEC. ADVENTURE 2002

58214070150

Unavailable
