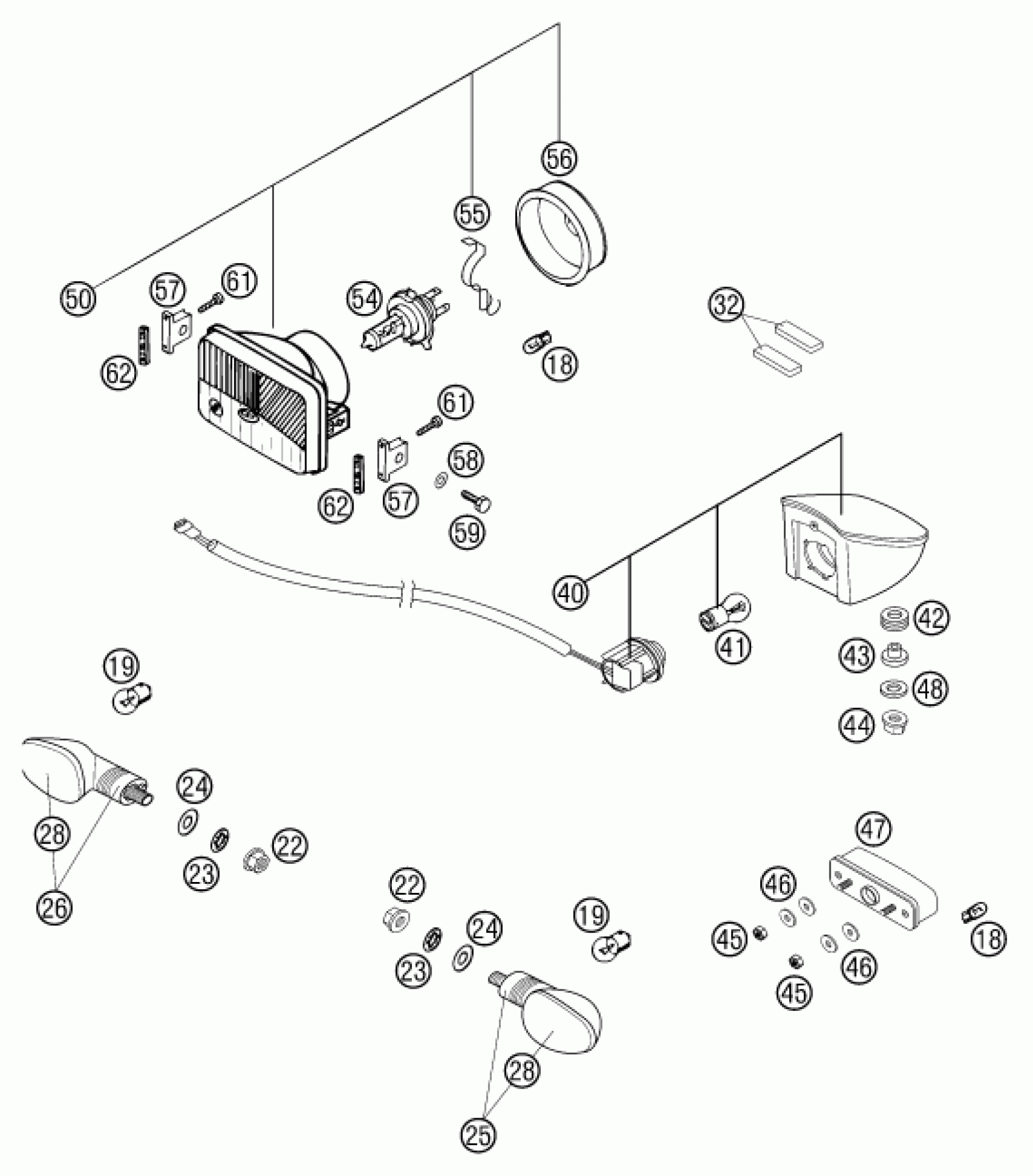

KTM 625 SC 2002 LIGHTING SYSTEM Diagram

#

Description
Price

18

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

19

BULB 12V 10W (BA15S)

44111015100

$3.08

22

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

23

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

24

washer DIN 125 A 10.5

0125100003

$2.05

25

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

26

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

28

FLASHER LENS L/S & R/S '98

58414028000

$6.72

32

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

40

REAR LIGHT CPL. LC4 2001

58414040100

$80.31

41

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

42

RUBBER SLEEVE D=12MM

41001052000

$4.11

43

REAR LIGHT BUSHING

58714048000

$5.23

44

Self locking nut M6 - 10

56509064100

$2.05

45

Self locking nut DIN 985 M5

0985050003

$2.05

46

washer DIN 9021 A - 5.3

0021050003

$1.49

47

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

48

Washer DIN9021-A 6.4

0021060003

$2.05

50

HEAD LIGHT 186(RI)''1003202 R'

59014002000

$107.27

54

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

55

BULB HOLDER

49011436100

$2.24

56

RUBBER CAP

50211537000

$3.48

57

HEAD LIGHT SUPPORT 2001

58414010100

$1.49

58

WASHER DIN0125-A 6,4

0125060003

$1.49

59

HH SCREW DIN0933-M 6X20

0933060203

$1.49

61

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

62

HEADLIGHT BRACKET '93

50211410050

$5.65
