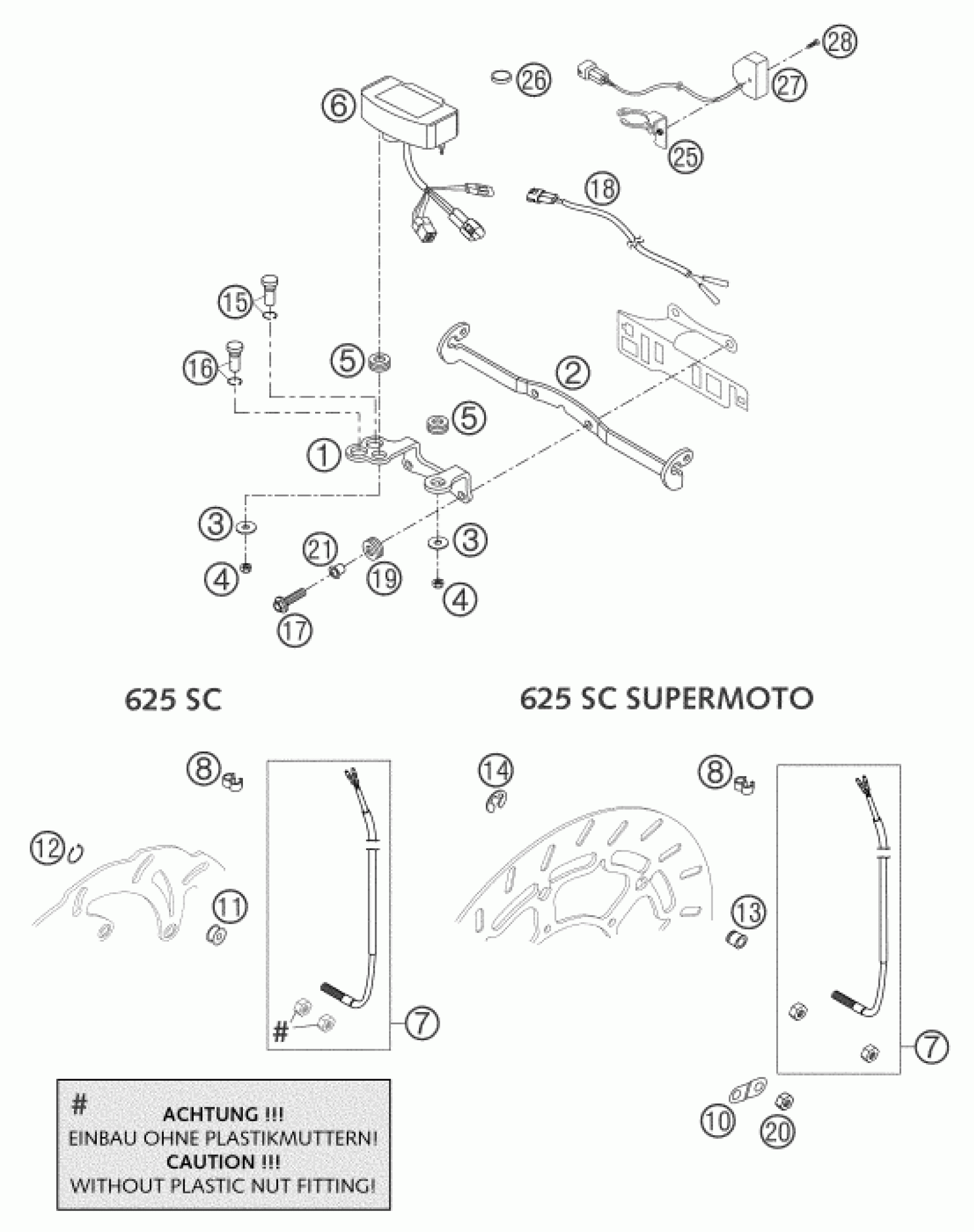

KTM 625 SC 2002 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMET.BRACKET M.A.E. 2002

58314060000

Unavailable

2

FLASHER BRACKET 2002

58314033100

$23.12

3

washer DIN 9021 A - 5.3

0021050003

$1.49

4

Self locking nut DIN 985 M5

0985050003

$2.05

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

SPEEDOMETER KM/H F. 21'' 0

58314069100

$302.69

6

SPEEDOMETER KM/H F. 17'' 0

58314069400

Unavailable

6

SPEEDOMETER MPH F. 21'' 0

58314069300

Unavailable

6

SPEEDOMETER MPH F. 17" 02

58314069500

Unavailable

7

CABLE FOR SIGMA 500 '98

58314069151

$94.72

8

CLAMP D=6/8MM, BLACK

55011022100

$2.05

10

BRACKET F. TRIGGER SC-SM 02

58314069152

Unavailable

15

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

16

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

17

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

11

MAGNET FOR DIGITALSPEEDOM.2000

50314069050

$17.50

12

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

13

SENSOR MAGNET ADVENTURE 01

58214069050

$17.20

14

TAB WASHER DIN6799-RS 7,0

0799070000

$1.49

18

ADAPT.CABLE SPEEDOM. M.A.E. 02

58314069155

Unavailable

19

rubber grommet D=8mm open

31008060000

$2.05

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

spacer bushing for speedometer

58314060050

$5.23

25

* BRACKET TRIPMASTER SWITCH 02

58314069350

Unavailable

26

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

27

TRIPMASTER-SWITCH DIGI-SPEEDO.

58314069200

Unavailable

28

FLAT HEAD SCREW DIN0963-M 4X20

0963040203

Unavailable
