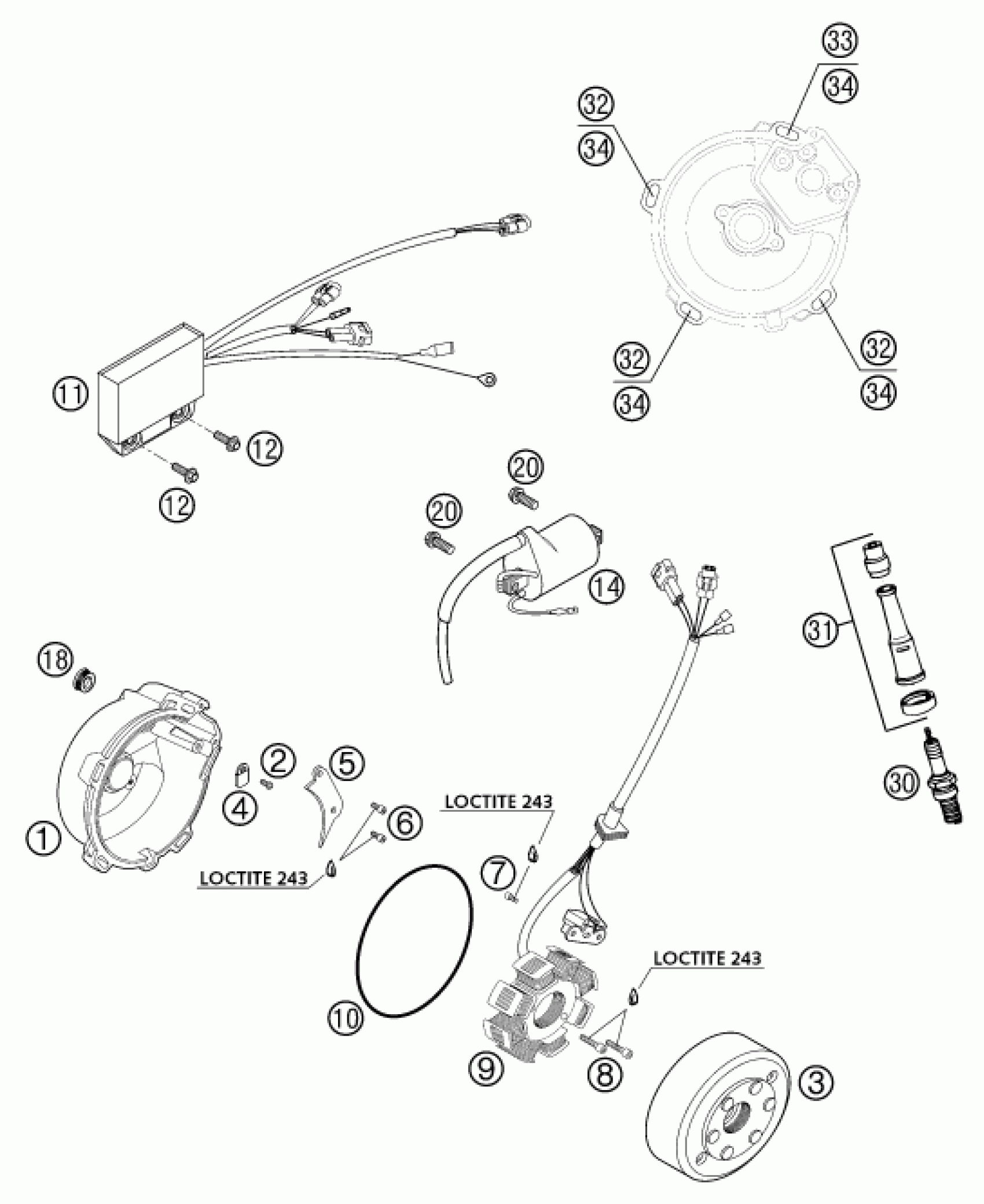

KTM 625 SC 2002 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 4K3 BLACK '99

58330002000

Unavailable

2

SPECIAL SCREW DIN7500-M 5X 8

0500050083

Unavailable

3

FLYWHEEL KOKUSAN 4K3 ''K8162''

58339005000

Unavailable

4

RETAINING PLATE

50031003000

$2.61

5

CLOSING COVER 4K3

58330002050

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

AH SCREW DIN0912-M 5X15

0912050153

Unavailable

8

AH SCREW DIN0912-M 6X20

0912060203

$2.05

9

STATOR KOKUSAN 4K3 SC 2002

58339004100

Unavailable

10

O-RING 126,72X1,78 B70

0770020490

$4.11

11

DIGITAL BOX CDI SC 2002

58339031100

Unavailable

12

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

14

Ignition coil

58439006000

$75.45

18

PLUG M18X1,5

58030002050

$6.96

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

30

SPARK PLUG NGK DPR8EA-9

58439093009

$8.50

31

Spark plug connector

58031010000

$13.27

32

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

33

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

34

WASHER DIN0125-A 6,4

0125060003

$1.49
