FRONT FORK, TRIPLE CLAMP

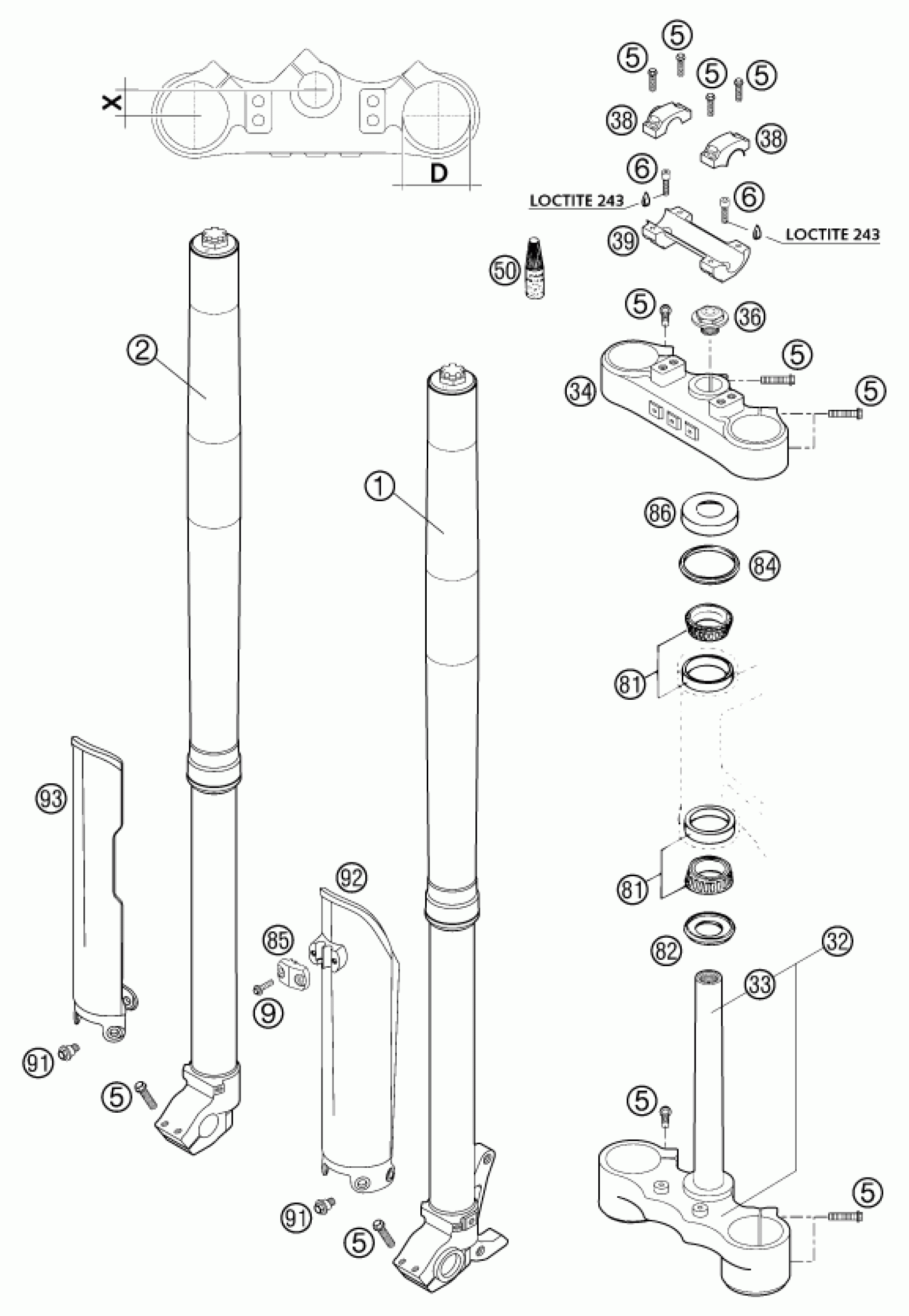

KTM 625 SC 2002 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK LEG L/S WP43 EXC RAC.2002
0518W712LS
Unavailable
1
FORK LEG L/S WP43 LC4 SM 02
0518W722LS
Unavailable
2
FORK LEG R/S WP43 EXC RAC.2002
0518W712RS
Unavailable
2
FORK LEG R/S WP43 LC4 SM 02
0518W722RS
Unavailable
5
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
6
AH SCREW DIN6912-M10X25,10.9
0912100250
$4.11
9
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
32
BOT.TRIP.CL.CPL.X=20MM/D=57M
59001132020
Unavailable
33
FORK TUBE L=244 '91
50101033100
$85.17
34
TOP TRIPLE CLAMP X=20MM/D=54
59001034020
Unavailable
36
STEER.HEAD SCREW M20X1,5 WS=27
50301036000
$10.38
38
HANDLEBAR CLAMP D=28MM 2000
59001038200
$27.76
39
HANDLEBAR SUPPORT 28MM SC'99
59001039100
$147.25
50
LOCTITE 243 BLUE 5 ML
6899785
$28.04
81
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F.SPEED.CABLE D=6MM 2001
59001085100
$3.08
86
STEERING HEAD COVER
54201086000
$8.50
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECTION L/S BLACK 20
59001092100
Unavailable
93
FORK PROTECTION R/S BLACK 20
59001093100
Unavailable
