FRONT FORK DISASSEMBLED

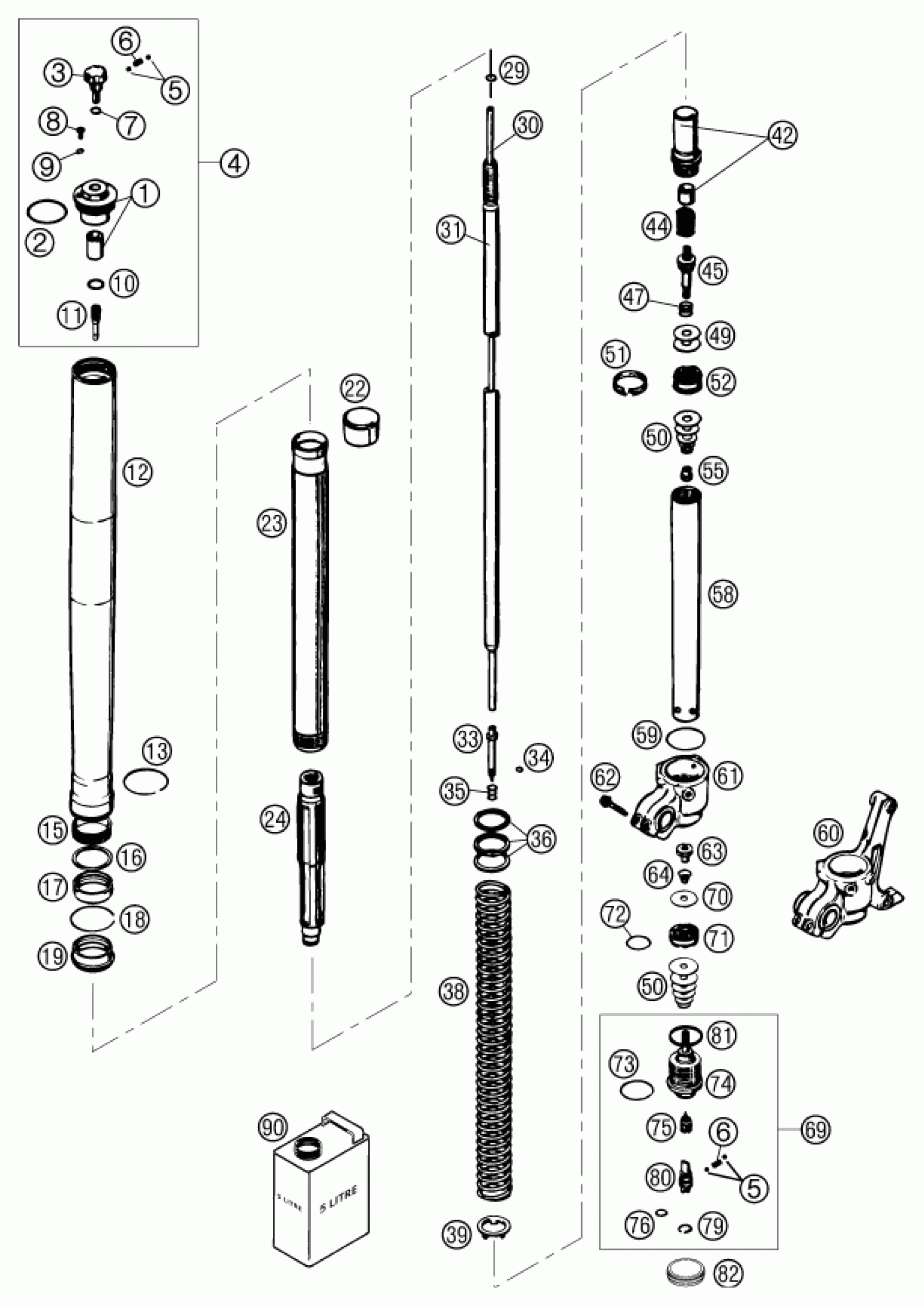

KTM 625 SC 2002 FRONT FORK DISASSEMBLED Diagram
#
1
SREW CAP+BUSH M51X1,5
48600020S
$39.06
2
O-ring 45x2 NBR70 siliconized
46810340
$1.49
3
Adjuster rebound
48600018
$4.11
4
SCREW CAP M51X1,5 CPL.
48600020S1
$98.26
5
Steel ball d3
40540603
$1.49
6
Spring (1,7) l7,9
48600028
$3.08
7
O-ring 6x1,5 NBR70
48600044
$1.49
8
Cross flat head screw M4x6
48600058
$1.82
9
O-ring 3,7x1,6 NBR70
48600009
$1.49
10
O-ring 12x1,5 NBR70
48600043
$2.05
11
Tube tap d4x25
48600019
$3.08
12
OUTER TUBE L=577MM D=54/57MM
43570125
Unavailable
13
Round-wire snap ring 53x2
43570099
$26.45
15
DU-BUSH 47 X 43 X 20
43570019
$77.97
16
Supportwasher 45x52,5x1,5
43570092
$20.09
17
OIL SEAL RING 43X53,15X9,5
43570140
$16.63
18
Snap ring SB53x1,5 acc drawing
43570008
$3.08
19
DUST STRIPPER D=43MM
43570094
$16.73
22
DU-BUSH 43,8 X 43 X 20
43570020
$11.40
23
INNER TUBE D=43MM L=585MM
43570145
Unavailable
24
HYDR.STOP L=200MM D=27,5 CPL
43570142S
$46.36
29
O-ring 6,3x2,4 NBR70
48600175
Unavailable
30
ADJUSTMENT TUBE L=512MM
48600014
$13.78
30
ADJUSTMENT TUBE L=492MM
48600094
$15.01
31
PISTONR. D=14MM L=546MM M11X1
48600023
$61.00
31
PISTONR. D=14MM L=526MM M11X1
48600093
Unavailable
33
* REBOUND NEEDLE
48600150
Unavailable
34
O-ring 3x1,5 NBR70
48600046
$1.49
35
Spring (7,2) 4-23 needle
48600033
$5.23
36
Preload bush 42x26,5x2,5
48600036
Unavailable
36
Preload bush 26,5x42x5
48600037
Unavailable
36
Preload bush 26,5x42x10
48600038
Unavailable
36
Preload bush 26,5x42x1,5
48600053
Unavailable
38
SPRING 3,6 N/MM SET D=4,6MM
95010010S
Unavailable
38
SPRING 4,0 N/MM SET D=4,75MM
95010002S
Unavailable
38
SPRING 4,2 N/MM SET D=4,9MM
95010003S
$143.79
38
SPRING 4,4 N/MM SET D=4,9MM
95010012S
Unavailable
38
SPRING 5,0 N/MM SET D=5,0MM
95010022S
$112.05
39
Spring retainer 33,5x38,2x3
43570131
$18.04
42
SCREW SLEEVE M29,3X1+BUSH
43570132S
$41.32
44
REBOUND SPRING D=14,6MM L=22MM
48600015
$28.51
45
TAB REBOUND
48600151
$18.42
47
Spring (11,7) 1,5-8 valve
35480377
$2.05
49
CHECK VALVE 8X24X0,1
48600062
$2.05
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
Shim 6x18x0,20
40540411
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x11x0,20
40541402
Unavailable
50
SHIM 6X11X0,25
40541417
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
SHIM 6X22X0,1 DELTA
48600139
Unavailable
51
Pistonring 26x28x5
48600060
$5.23
52
Piston 6,05x27,65x12 rebound
48600042
$11.78
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$4.11
58
TUBE 29,3X1X390 D=8,5MM
48600081
$155.20
58
Tube 29.3X1X385 ALU
48600140
$82.49
59
O-ring 41x2 NBR70 siliconized
43570023
$13.55
60
AXLE CLAMP L/S 260MM M8 2000
43570124
$339.21
61
AXLE CLAMP RIGHT M8 2000
43570123
$162.04
62
HH COLLAR SCREW M 8X30
50600061
$3.08
63
CHECK VALVE NUT M6X0,5
40541241
$6.44
64
Spring (8,5) l6,5 valve
40541278
Unavailable
69
TAP COMPRESSION CPL.
48600152S
$37.67
70
Shim 8x24x0,40
48600061
$2.05
71
Piston 6x27,8x9 compression
48600047
$9.81
72
O-ring 21x2 NBR70
46811499
$1.49
73
O-ring 24x2 NBR70
35480320
$1.49
74
TAP COMPRESSION
48600152
$37.67
75
NEEDLE COMPRESSION M10X1
48600153
$5.32
76
O-ring 8x2 NBR70
48600049
$1.49
79
Round-wire snap ring 12x1 DIN7
48600051
$3.08
80
Adjustment screw slot compress
48600034
$7.35
81
Copper disc 29,5x33,5x1
48600004
$4.11
82
Rubber cap 35x10 NBR80
48600141
$4.11
90
FORKOIL SAE 5 5L.
40540882S1
$149.59
