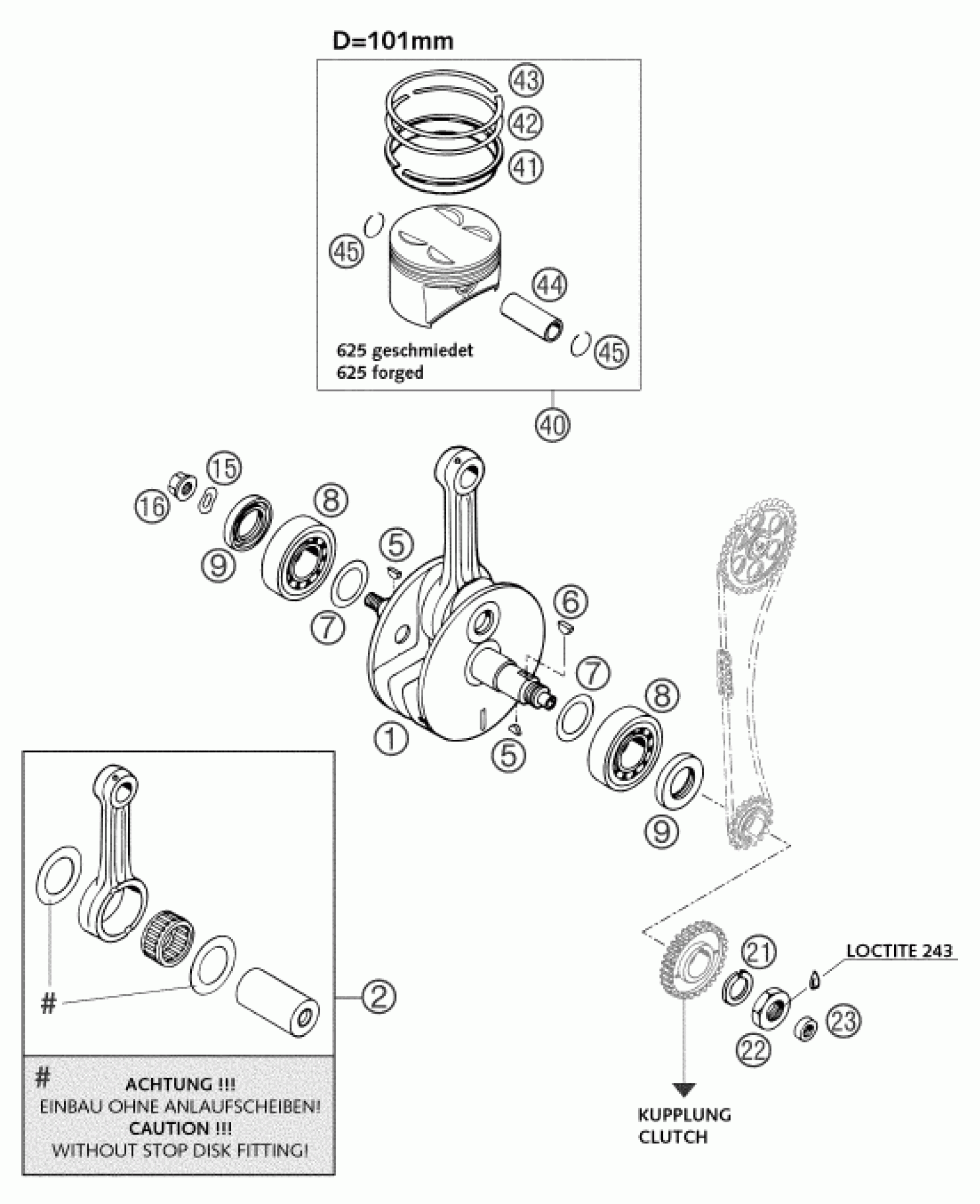

KTM 625 SC 2002 CRANKSHAFT, PISTON Diagram

#

Description
Price

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

1

CRANKSHAFT SC CPL. 02

58330018200

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

$1.49

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

$11.40

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

40

PISTON I CPL.101MM FORGED 20

58430007000 I

Unavailable

40

PISTON II 101MM FORGED 20

58430007000 II

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

$34.31

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

43

L-RING 101X93,5X1,5 2000

58430032000

$45.71

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

45

CIRCLIP 22 X 1,6

58430074000

$9.62
