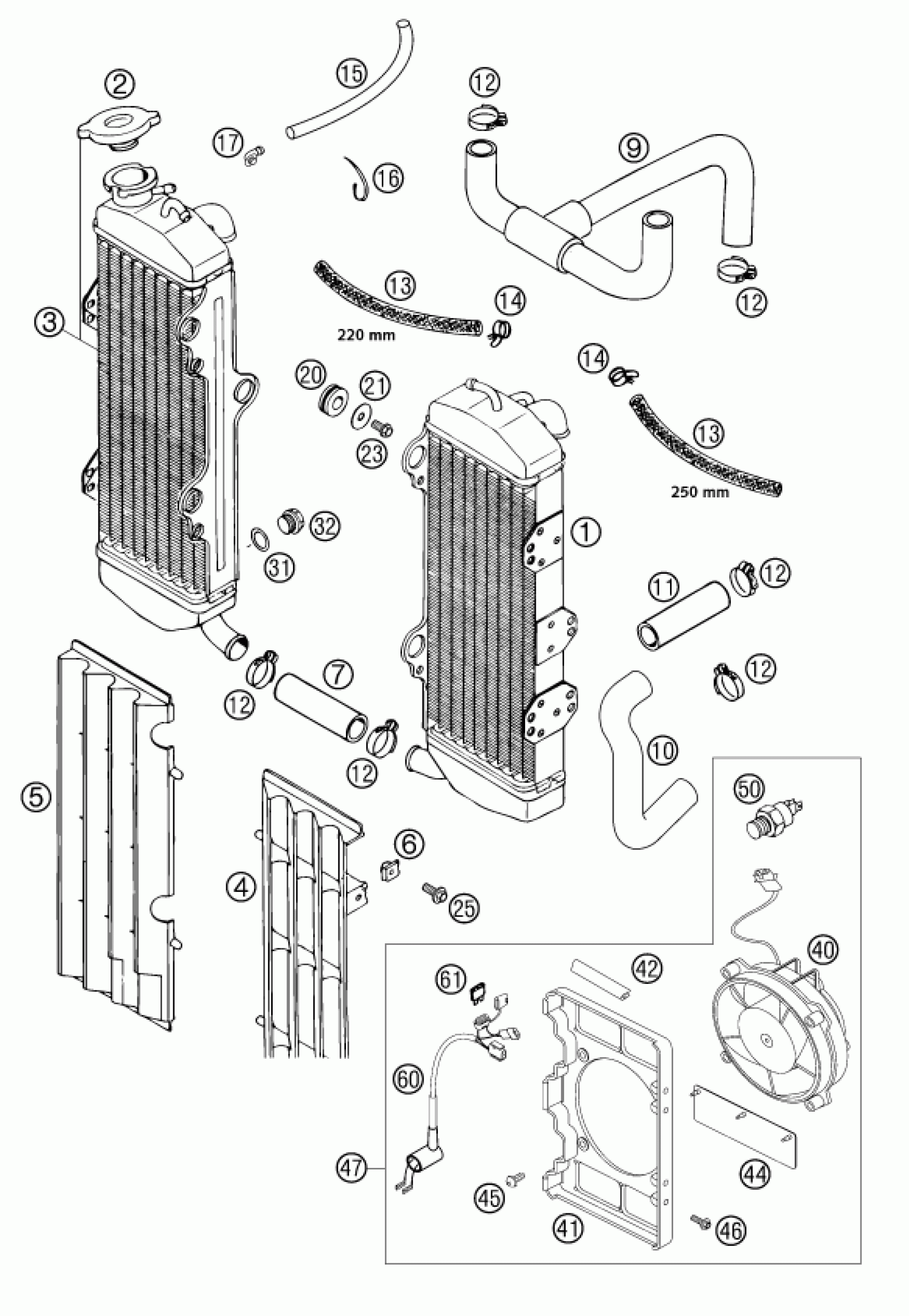

KTM 625 SC 2002 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S (45246) LC4'94

58335008000

$252.56

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

RADIATOR R/S (45335) LC4 '99

57935008000

$310.42

4

RADIATOR PROTECT. L/S WHITE'96

58035034100

Unavailable

4

RADIATOR PROTECTOR L/S BLACK

58035034000

$11.78

5

RADIATOR PROTECT. R/S WHITE'96

58035134100

Unavailable

5

RADIATOR PROTECTOR R/S BLACK

58035134000

$11.53

6

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

$60.30

10

PREFORMED HOSE 18X25 PUMP-CY

58435025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

$5.23

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

32

PLUG DIN0908-M14X1,5

0908140153

$3.48

40

FAN CPL. 12V LC4 2000

58435041000

Unavailable

41

FAN CAP LC4 2000

58435044000

Unavailable

42

EDGE PROTECTOR PER METER

58312085100

Unavailable

44

FAN FLAP RUBBER LC4 2000

58435044050

Unavailable

45

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

46

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

47

58335141044

Unavailable

50

THERMOSWITCH 80-85 DG

58035045000

Unavailable

60

FAN WIRING HARNESS 2001

59011079000

Unavailable

61

FUSE 5 A

58011109005

Unavailable
