CARBURETOR

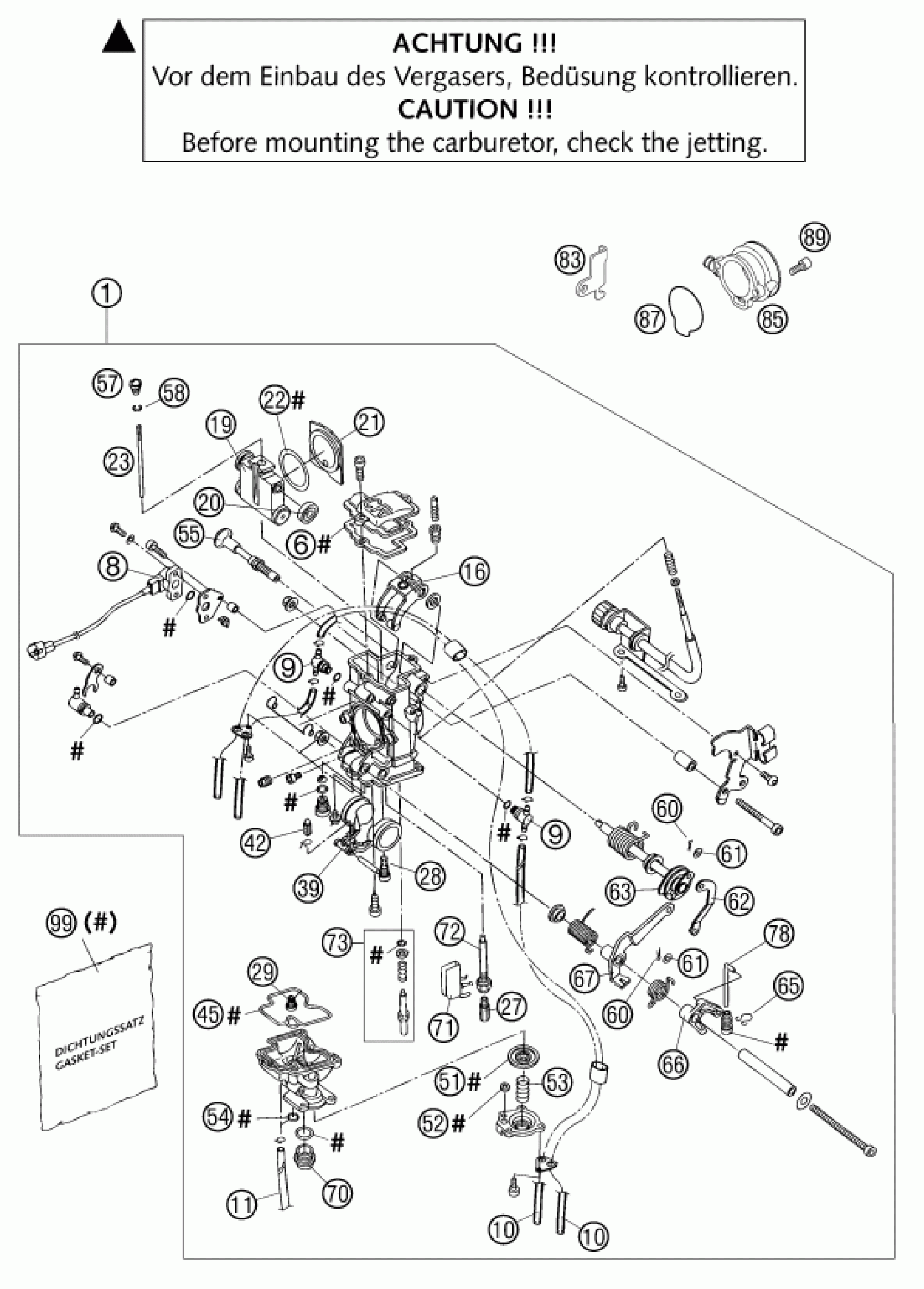

KTM 625 SC 2002 CARBURETOR Diagram
#
1
CARBURETOR KEIHIN FCR-41 02
58331001000
Unavailable
6
GASKET CARBURETOR COVER
59031028000
$20.88
8
TPS-SENSOR FCR 200MM 99-03
59031077000
$172.55
9
T-JOINT BREATHER HOSE
59031083000
$12.11
10
PVC-HOSE 4X6MM
31007007101
$4.11
11
PVC-HOSE 3X5MM
52031137001
Unavailable
16
LINK ARM THROTTLE VALVE CPL.
59031035051
$78.24
19
THROTTLE VALVE 15 CPL.
59031035015
Unavailable
20
BUSHING THROTTLE VALVE
59031035050
$10.65
21
GASKET PLATE THROTTLE VALVE
59031035053
Unavailable
22
GASKET WASHER THROTTLE VALVE
59031035052
$17.94
23
JET NEEDLE OBEVR
590311340VR
Unavailable
23
JET NEEDLE KEIHIN OBEVP
59031023000
Unavailable
23
JET NEEDLE KEIHIN OBDVP
59031023100
Unavailable
23
JET NEEDLE KEIHIN OBDVR
590310340VR
Unavailable
23
JET NEEDLE KEIHIN OBDVT
59031023200
$29.07
23
JET NEEDLE KEIHIN OBDTM
590310340TM
Unavailable
27
MAIN JET 160 KEIHIN
54531623160
Unavailable
27
MAIN JET 165 KEIHIN
54531623165
Unavailable
27
MAIN JET 172 KEIHIN
54531623172
Unavailable
27
MAIN JET 175 KEIHIN
54531623175
Unavailable
27
MAIN JET 178 KEIHIN
54531623178
Unavailable
27
MAIN JET 180 KEIHIN
54531623180
$12.71
28
IDLE JET 45
59031607045
$13.19
28
IDLE JET 48
59031607048
Unavailable
28
IDLE JET 50
59031607050
Unavailable
28
IDLE JET 52
59031607052
Unavailable
29
STARTER JET 85
59031051085
$16.73
39
FLOAT CPL.
59031009000
$45.98
42
FLOAT NEEDLE
54631220000
$31.41
45
GASKET FLOAT CHAMBER
59031010000
$24.68
51
DIAPHRAGM ACCELERATOR PUMP
59031057000
$26.80
52
U-RING
59031058000
$3.08
53
COIL SPRING
59031059000
$7.38
54
O-RING
59031058100
$3.08
55
STARTER VALVE CPL.
59031048000
$64.15
57
NEEDLE SET SCREW
59031032000
$15.68
58
BAR CLIP
59031029000
$5.23
60
SPLIT PIN 1,0X10
0094010103
$2.61
61
PVC WASHER 3X8X0,5
59031087000
$1.49
62
LINK ARM CPL.
59031063000
$23.05
63
THROTTLE SHAFT CPL.
59031046000
$113.31
65
TUBE CLIP
59031084000
$8.13
66
LINK LEVER
59031056000
$11.11
67
LINK LEVER CPL.
59031062000
$34.09
70
HOLDING BOLT
59031014000
$30.12
71
BUFFER PLATE
59031085000
$20.49
72
NEEDLE JET FCR-MX
59031121000
$32.72
73
ADJUST SCREW CPL.
59031017000
$12.86
78
ROD ACCELERATOR PUMP
59031061000
$23.65
83
SLIDE STOP P=20KW
58331029020
Unavailable
83
SLIDE STOP P=23KW
58331029023
Unavailable
85
INTAKE FUNNEL FCR/FCR-MX 02
59031040200
$7.21
87
O-RING FOR INTAKE FUNNEL
59031040010
$3.08
89
AH SCREW DIN0912-M 5X12
0912050123
$2.05
99
GASKET SET FCR KEIHIN
59031099000
$123.50
