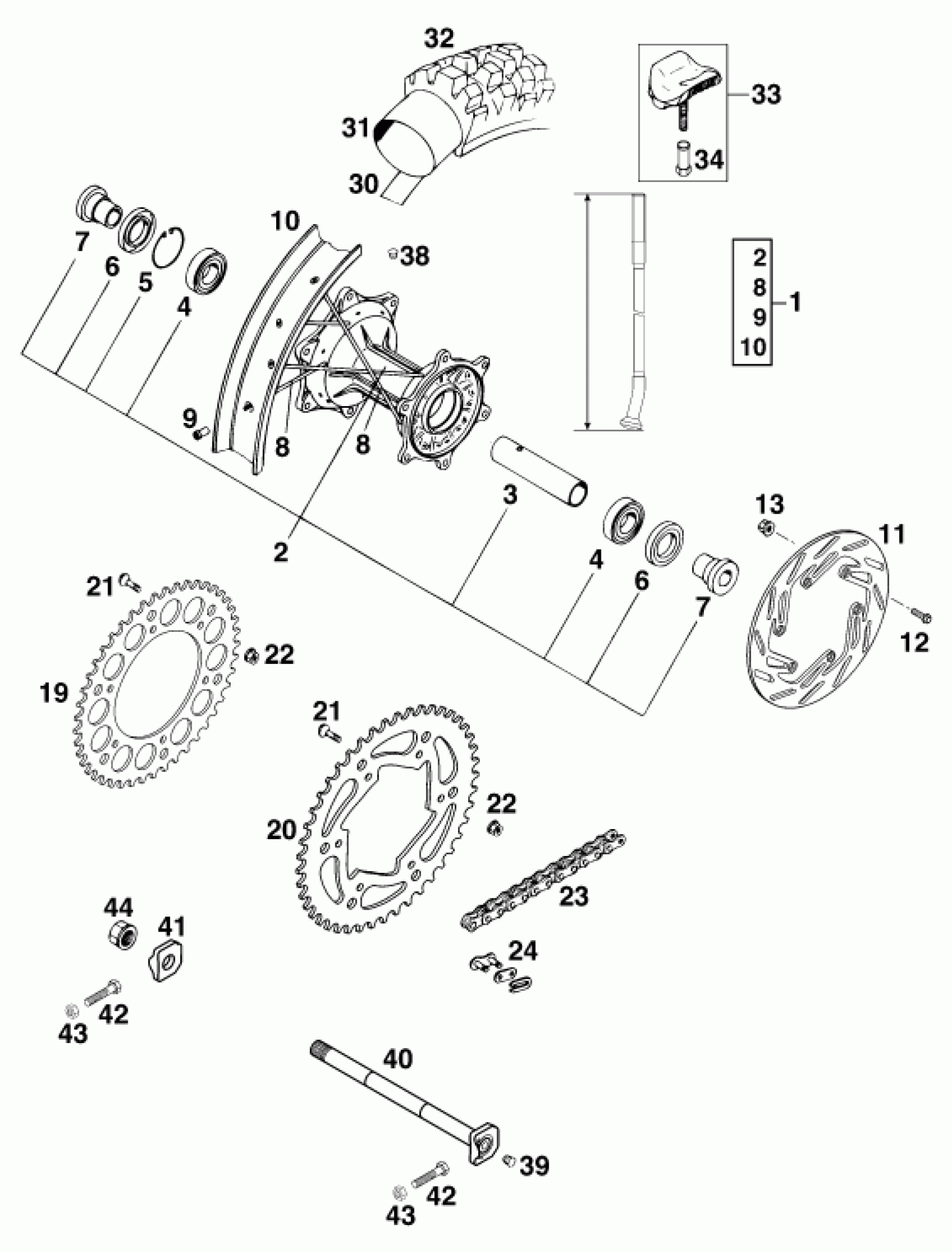

KTM 620 TXC <1998> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL.2.15X18'' DID'

50310001044

Unavailable

1

5461000104490

Unavailable

2

5461001004490

Unavailable

3

BUSHING SPACER TUBE 121,5 MM

56510011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

SHAFT SEAL RING 32x47x7

0760324772

Unavailable

7

BUSHING FOR HUB

54610016000

$32.90

8

SPOKE M5X200-10G 18'' DDE

58310071200

Unavailable

8

SPOKE M5X211-10G 19'' DDE

58310071211

Unavailable

9

STEEL NIPPLE M5

56509072000

Unavailable

10

REAR RIM 2,15X19'' EXCEL AL4

54610070100

$252.81

10

REAR RIM 2,15X18'' DID

54610070300

$198.44

11

REAR BRAKE DISK 220MM

54610060200

$135.01

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

13

SELF LOCKING NUT M6

56509064000

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

$50.58

20

REAR SPROCKET 50-T

58310151050

$56.00

20

REAR SPROCKET 52-T

58310151052

$50.58

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

50010065100

Unavailable

23

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

$13.27

30

52010073000

Unavailable

31

HOSE 4.00/4.50/120/130-18''

54010075000

Unavailable

31

54610075000

Unavailable

32

TYRE 110/90-19" 62M M78

50310074500

Unavailable

32

TYRE 140/80-18" 70R END.COMP.3

54610074900

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

$20.56

34

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

$70.38

41

CHAIN TENSIONER '95

56510084100

$11.28

42

HH SCREW M8X40 WS=10

50203030090

$4.11

43

Hexagon nut DIN934 M8

0934080003

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30
