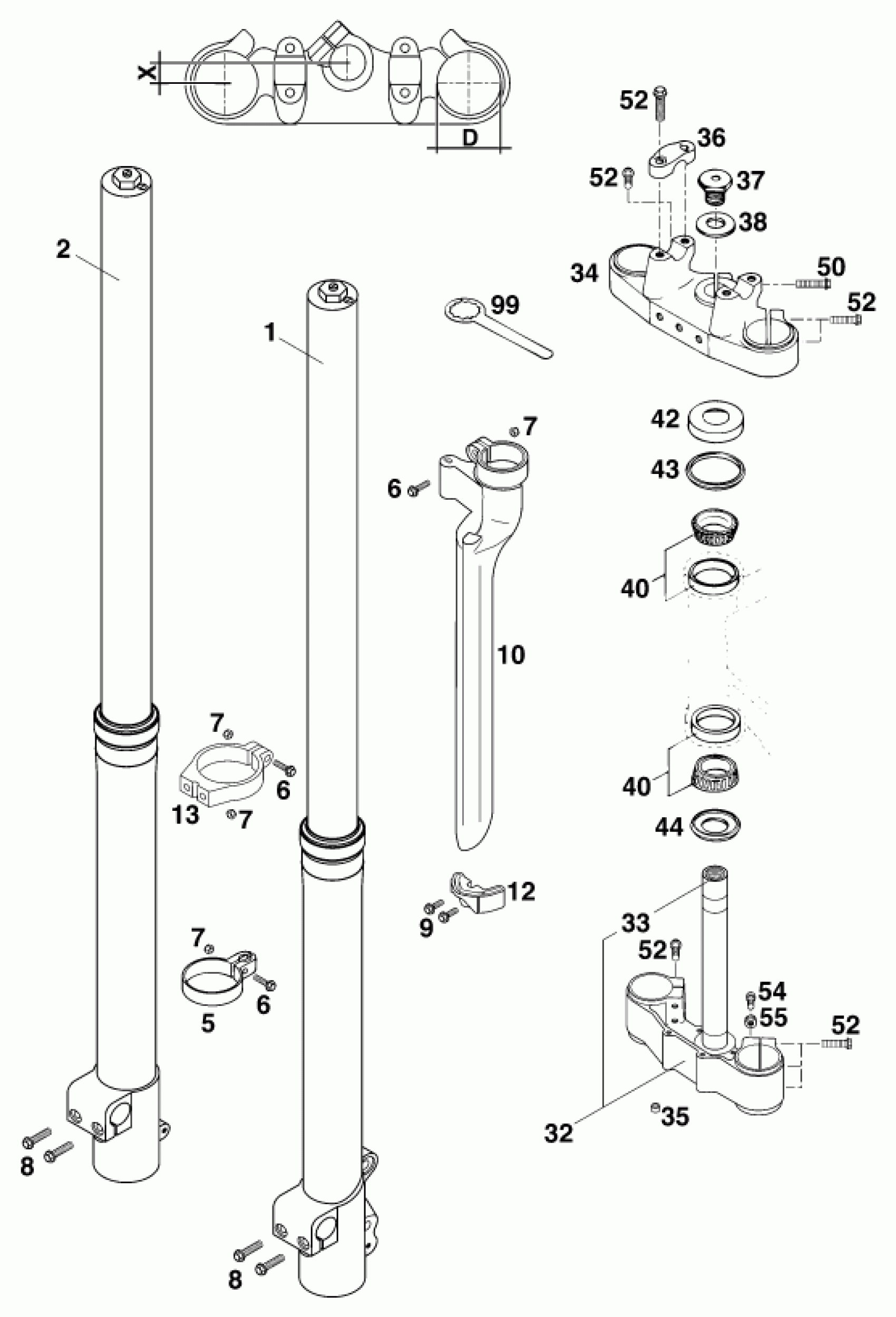

KTM 620 TXC <1998> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

0

FORK PROTECTOR R/S BLACK '97

50301093000

$10.03

0

FORK PROTECTION GUIDE R/S '97

5460139000030

$3.44

1

FORK LEG L/S WP "0918S740" '98

58301401300

Unavailable

1

% FORK LEG L/S WP "0918S744" '

58301401400

Unavailable

2

FORK LEG R/S WP "0918S740" '98

58301402300

Unavailable

2

% FORK LEG R/S WP "0918S744" '

58301402400

Unavailable

5

SP.CABLE GUIDE MARZ.50,WP50'97

50301070000

$2.86

6

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

7

Self locking nut DIN 985 M5

0985050003

$2.05

8

HH COLLAR SCREW M 8X20 WS=10

0015080203

$2.05

9

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

10

FORK PROTECTOR L/S BLACK '97

50301092000

$10.03

12

FORK PROTECTION GUIDE L/S '97

5460129000030

$3.44

13

CLAMP PROTECTOR GUIDE '98

50301090250

$6.39

32

BOT.TRIPLE CLAMP X=16MM/D=50MM

50301032016

$147.13

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLECLAMP X=16MM/D=50MM

58301034016

$128.97

35

SPACER BUSHING 6X10X5

50301089000

$2.05

36

HANDLEBAR CLAMP SX,SXC,SC '97

58301038000

Unavailable

37

HH SCREW M20X1,5

56401043000

$19.86

38

WASHER 21X38X3

56401044000

$5.00

40

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

42

STEERING HEAD COVER

54201086000

$8.50

43

STEARING HEAD GASKET TOP

54601184000

$7.10

44

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

50

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

52

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

54

HH SCREW DIN0933-M 8X25

0933080253

$2.05

55

Hexagon nut DIN934 M8

0934080003

$2.05

99

RING WRENCH WS=32

54212035000

Unavailable
