Description

Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

WIRING HARN.WITHOUT FLASHER'97

58311275100

Unavailable

2

REAR WIRNING HARNESS '93

58311276000

$41.16

3

LIGHT SWITCH CEV 9607 '93

58311070000

$32.03

8

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

10

VOLTAGE REGULATOR TYMPANIUM'90

58011034500

$119.21

11

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

13

Cable tie 200/4.6mm black

44011076200

Unavailable

30

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

32

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

60

% AC HORN 12V TR8

54411060000

Unavailable

61

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

62

clip nut M6

54603048100

$4.11

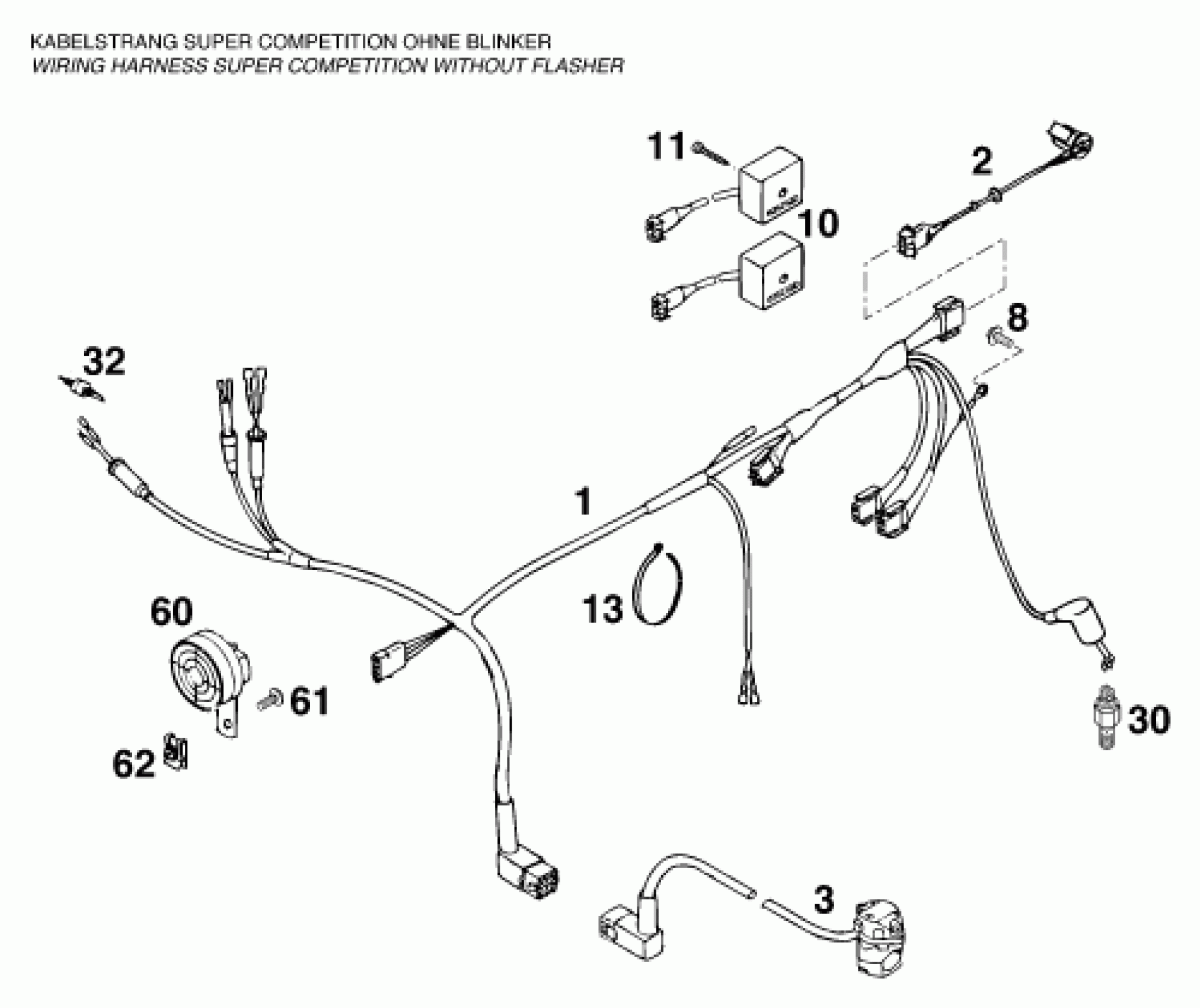

KTM 620 SXC WP <1997 WIRING HARNESS Diagram

CABLE TIE 300/4,8MM BLACK

WIRING HARN.WITHOUT FLASHER'97

REAR WIRNING HARNESS '93

LIGHT SWITCH CEV 9607 '93

HH COLLAR SCREW M 6X10 WS=8

VOLTAGE REGULATOR TYMPANIUM'90

SHEET MET.SCR.DIN7981- 5,5X39

Cable tie 200/4.6mm black

REAR BRAKE LIGHT SWITCH '

FRONT BRAKE LIGHT SWITCH

% AC HORN 12V TR8

HH COLLAR SCREW M 6X15 WS=8

clip nut M6
