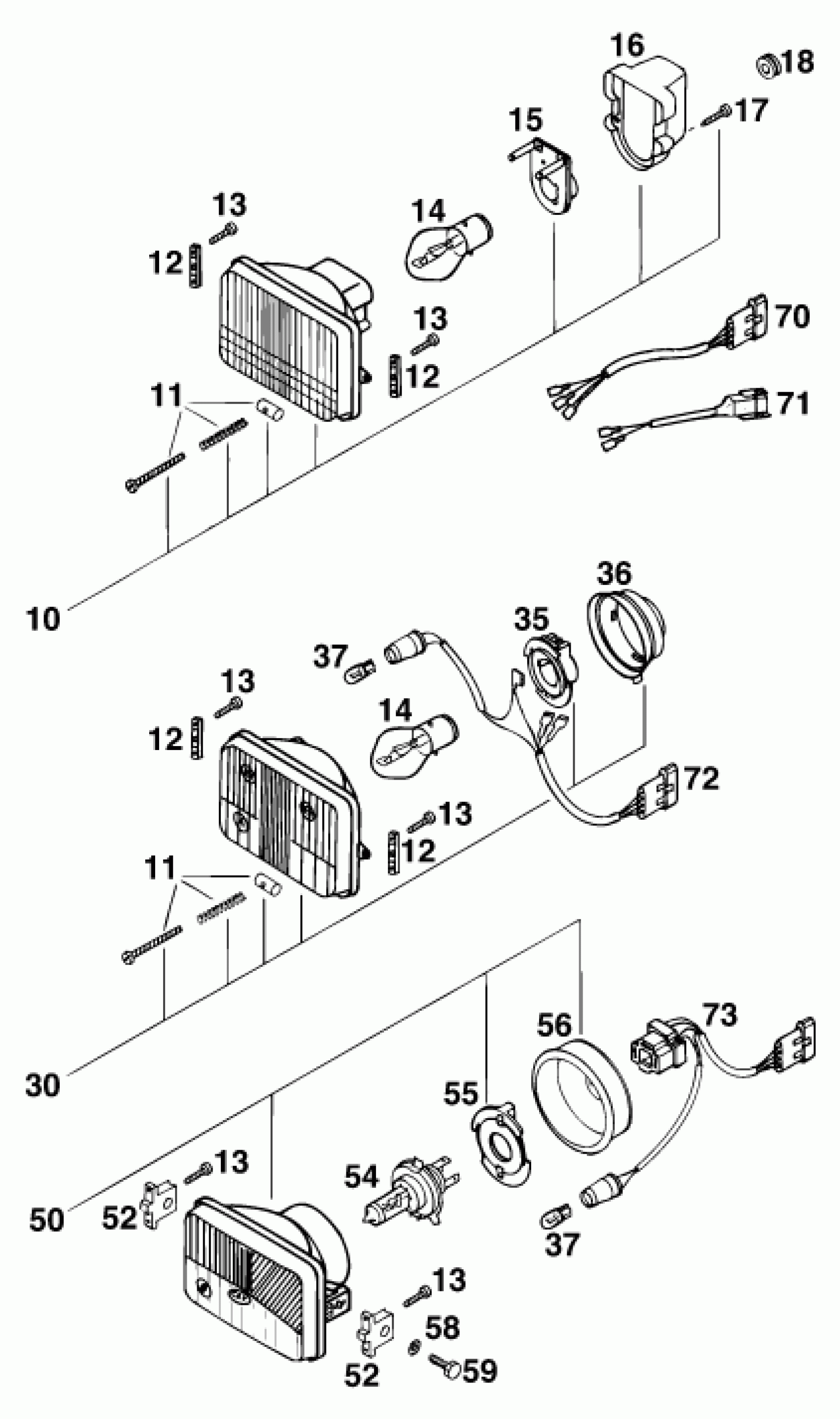

KTM 620 SXC WP <1997> LIGHTING SYSTEM Diagram

#

Description
Price

10

HEADLIGHT CPL. ELCOM '93

50211610000

$53.69

11

ADJUSTING SCREW CPL. M4X40

50211631000

$4.35

12

HEADLIGHT BRACKET '93

50211410050

$5.65

13

SPECIAL SCREW Z 3,5X10

0016035103

$1.49

14

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

15

BULB SOCKET

57011036000

$23.18

16

COVER CAP

50211637000

$6.30

17

SHEET MET.SCR.DIN7981-3,5X13

0981350133

$1.49

18

rubber grommet D=8mm open

31008060000

$2.05

30

HEADLIGHT CPL. CEV 322 '93

50211410000

$52.98

35

BULB SOCKET

50211436000

Unavailable

36

* COVER CAP

50211437000

Unavailable

37

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

50

HEADLIGHT CEV 394 '93

50211510000

$134.16

52

HEADLIGHT BRACKET '93

50211510050

$8.71

54

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

55

* BULB HOLDER

49011436000

Unavailable

56

RUBBER CAP

50211537000

$3.48

58

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

59

HH SCREW DIN0933-M 6X20

0933060203

$1.49

70

* CABLE FOR HEADLIGHT '93

50211610010

Unavailable

71

CABLE FOR HEADLIGHT '93

50211610110

$33.23

72

CABLE FOR HEADLIGHT '93

50211410010

Unavailable

73

* CABLE FOR HEADLIGHT '93

50211510010

Unavailable
