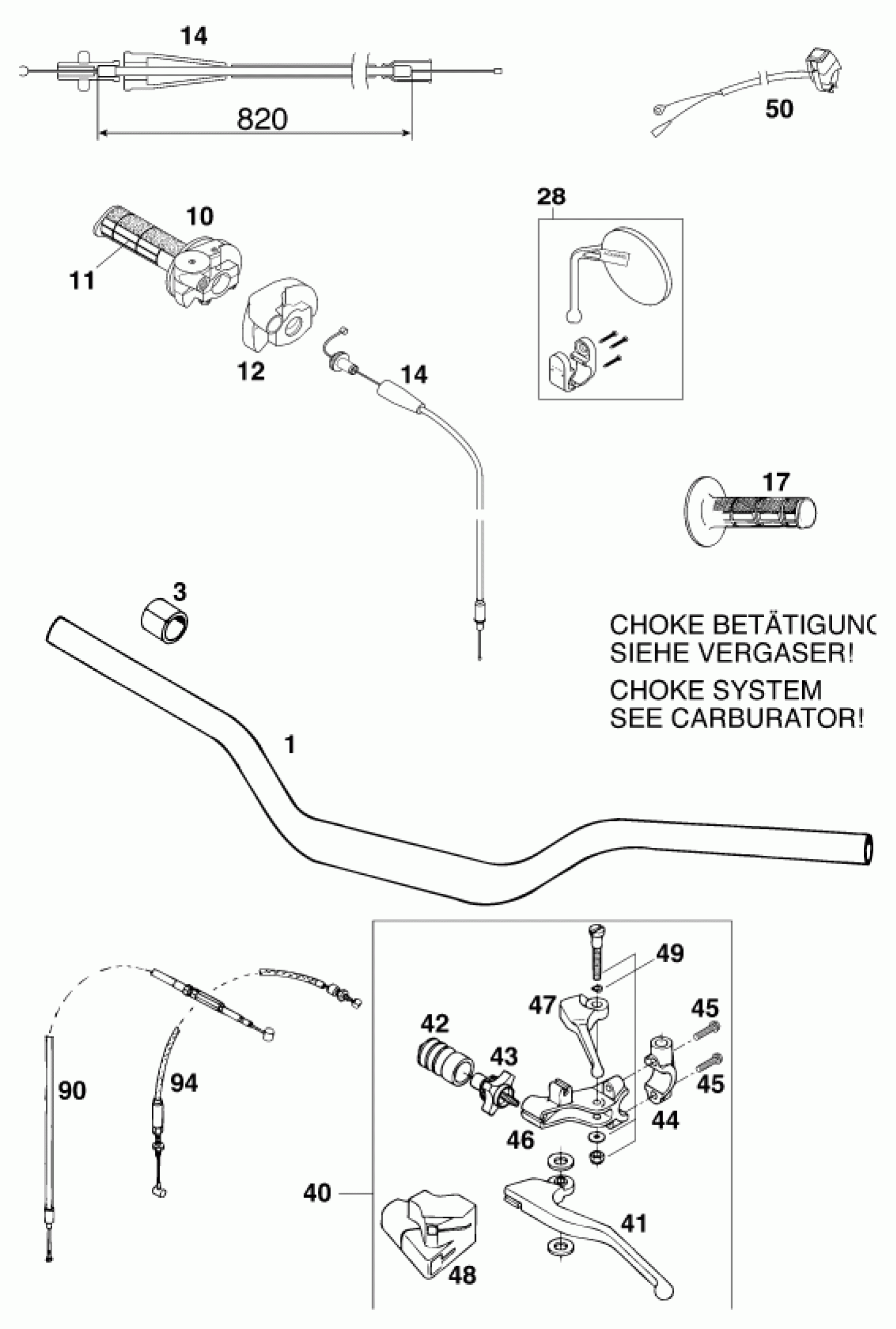

KTM 620 SX '99 <1999> HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

10

THROTTLE GRIP DOMINO SXC'98

58302010300

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROT.CABLE DOM. 960MM SXC'98

58302091400

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

28

MIRROR L/S BLACK ACERBIS '97

5021204000030

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

Unavailable

42

CLUTCH LEVER BOOT '95

58302126000

Unavailable

43

ADJUSTMENT SCREW CPL.M7

58302043000

Unavailable

44

CLAMP MIRROW M10x1,25

58302044000

Unavailable

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

46

JOINT DOMINO

58302023000

Unavailable

47

DECOMPRESSION LEVER LOOSE

58302047000

Unavailable

48

PROTECTING COVER

58302048000

Unavailable

49

LEVER SCREW CPL.

58302049000

Unavailable

50

SHORT CISCUIT BUTTON '

50311089000

Unavailable

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

Unavailable
