Description

Price

1

RADIATOR L/S NATURE (45288)'96

58335008100

$247.66

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

THROTTLE VALVE

58335007100

Unavailable

4

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

5

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

$60.30

10

PREFORMED HOSE 18X25 PUMP-CY

58435025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

$5.23

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

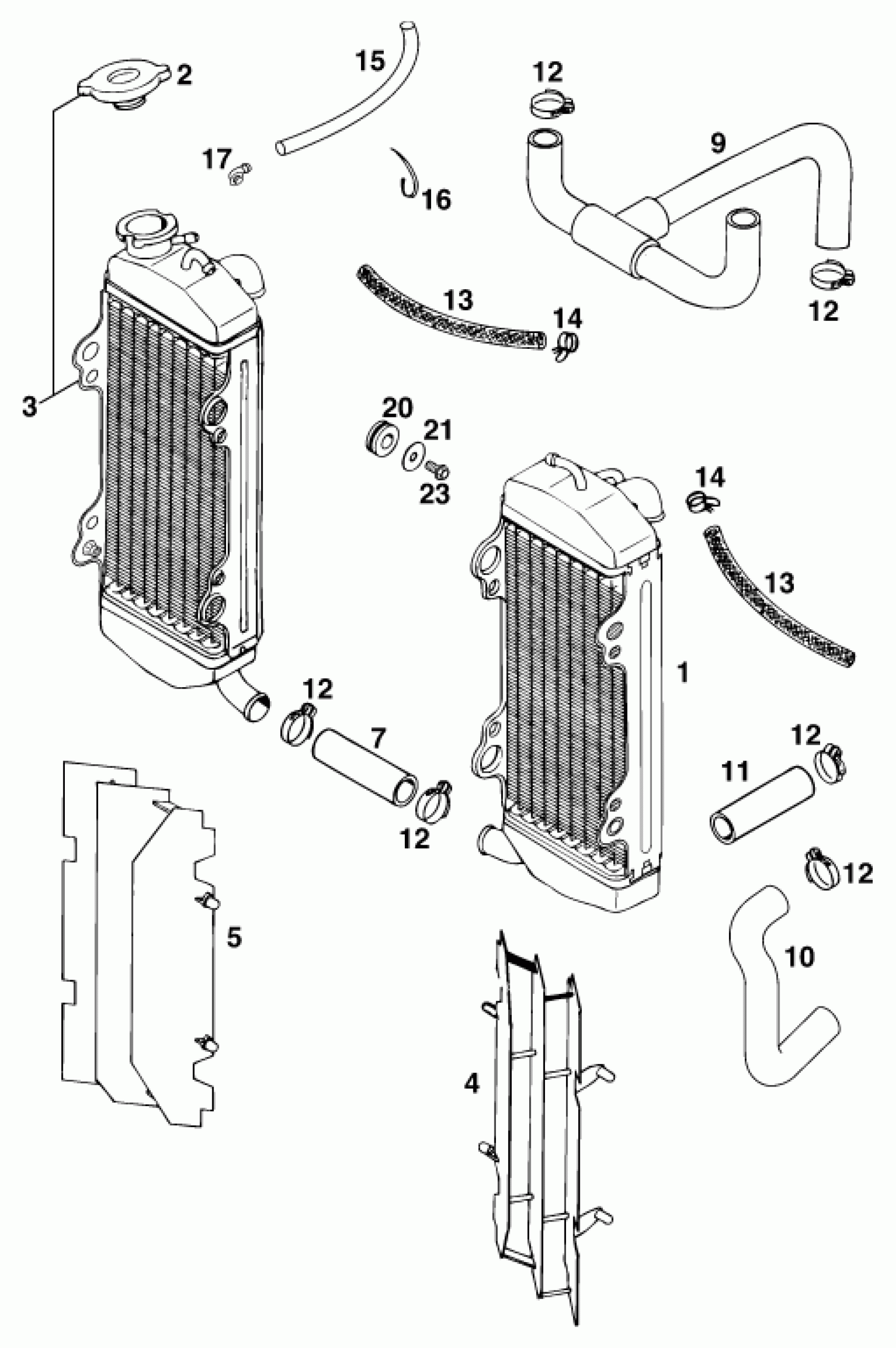

KTM 620 SX <1998> COOLING SYSTEM Diagram

RADIATOR L/S NATURE (45288)'96

RADIATOR CAP SMALL 20,3 PSI

THROTTLE VALVE

RADIATOR PROTECTION LEFT '95

RADIATOR PROTECT.RIGHT '95

RADIATOR HOSE 18X25 PER METRE

PREFORMED HOSE LC4'94

PREFORMED HOSE 18X25 PUMP-CY

RADIATOR HOSE 20X26

HOSE CLAMP GEMI 18-29

HOSE ID 7,5 PER METER

HOSE CLAMP YDNAC 10119 11MM

PVC-HOSE 7X10 PER METER

Cable tie 200/4.6mm black

ANGLE PIECE '97

RUBBER SLEEVE D=12MM

Washer DIN9021-A 6.4

HH COLLAR SCREW M 6X12 WS=8
