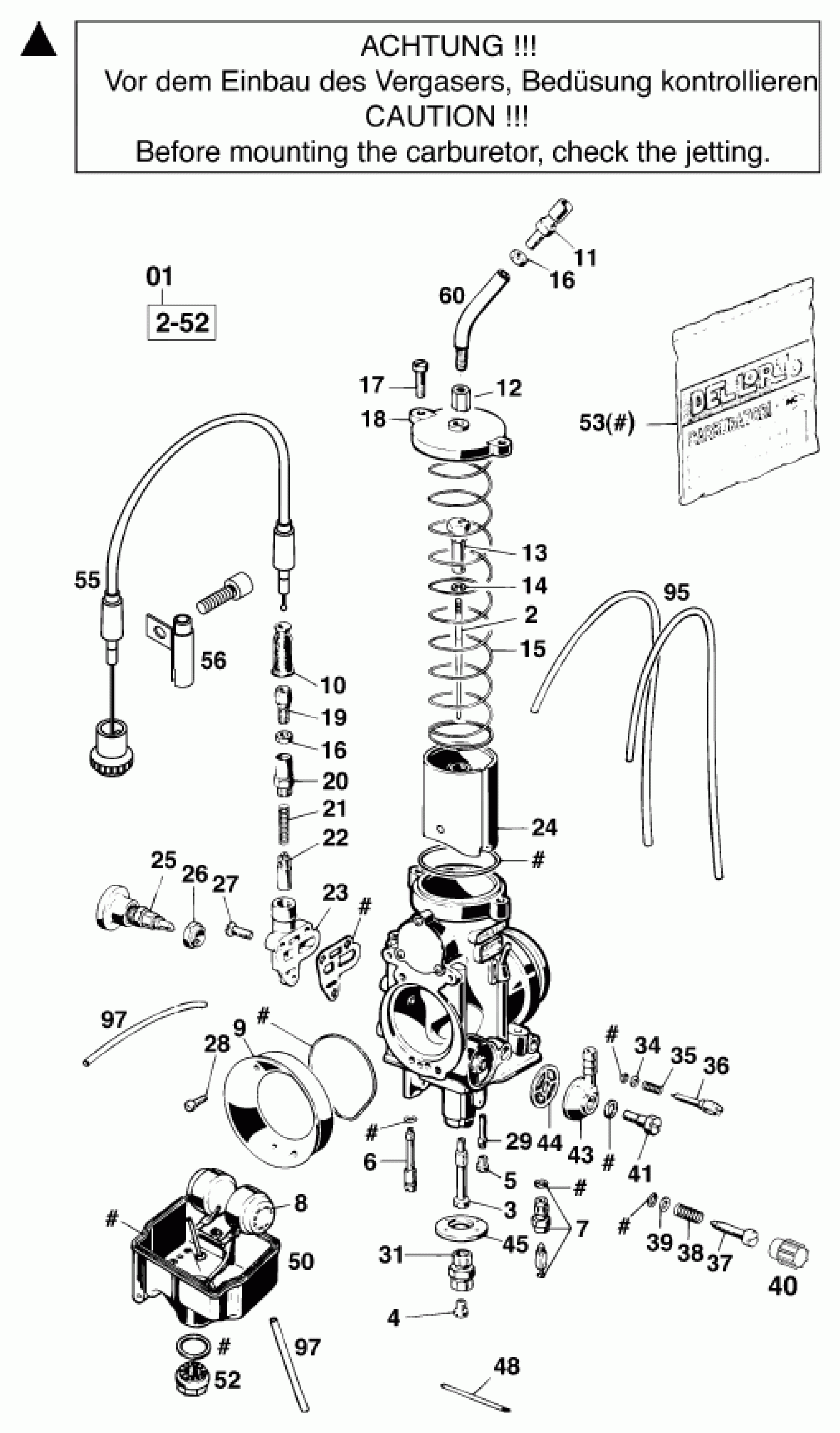

KTM 620 SX <1998> CARBURETOR Diagram

#

Description
Price

1

CARBURETOR PHM 40 SD (4934)

58031901044

$647.33

2

JET NEEDLE K51

49031134051

$23.37

3

NEEDLE JET DR 264

58031121264

Unavailable

3

NEEDLE JET DR 266

58031121266

Unavailable

3

NEEDLE JET DR 268

58031121268

Unavailable

3

NEEDLE JET DR 270

58031121270

Unavailable

3

NEEDLE JET DR 272

58031121272

$24.37

4

MAIN JET 150

57031523150

Unavailable

4

MAIN JET 155

57031523155

Unavailable

4

* MAIN JET 160

57031523160

Unavailable

4

MAIN JET 162

57031523162

Unavailable

4

MAIN JET 165

57031523165

Unavailable

4

MAIN JET 168

57031523168

Unavailable

4

MAIN JET 170

57031523170

Unavailable

4

MAIN JET 175

57031523175

Unavailable

4

MAIN JET 178

57031523178

Unavailable

4

MAIN JET 180

57031523180

Unavailable

4

MAIN JET 182

57031523182

Unavailable

4

MAIN JET 185

57031523185

Unavailable

4

MAIN JET 188

57031523188

Unavailable

4

MAIN JET 190

57031523190

Unavailable

4

MAIN JET 192

57031523192

Unavailable

4

MAIN JET 195

57031523195

$4.61

4

MAIN JET 200

57031523200

Unavailable

5

JET 38

15131123038

Unavailable

5

JET 40

15131123040

Unavailable

5

JET 43

15131123043

Unavailable

5

JET 45

15131123045

$5.65

5

JET 48

15131123048

Unavailable

5

JET 50

15131123050

Unavailable

5

JET 52

15131123052

Unavailable

6

STARTING JET 45

57031551045

$11.02

7

NEEDLE VALVE 300

57231120300

$50.95

8

% FLOAT 8,5 GRAMME

57031509000

Unavailable

8

FLOAT

58331509000

$41.97

9

INTAKE TRUMPET 40 620LC4/DUKE

58031140040

Unavailable

10

RUBBER SLEEVE

52031138000

Unavailable

11

ADJUSTMENT SCREW M6X0,75

57031525100

$15.76

12

SUPPORT BUSHING M6x0,75 WS=10

58031528000

Unavailable

13

NIPPLE FOR THROTTLE VALVE

49031131000

Unavailable

14

TAB WASHER DIN6799-RS 2,5

0799025055

$3.08

15

SLIDING SPRING 1,25X190

54431530000

$19.03

16

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

17

HEXAGON NUT M 5X16

57031524000

$2.12

18

CARBURETOR COVER PLATE

58031127000

$35.93

19

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

20

PLUG

57231155000

$7.34

21

SPRING

58031153000

$1.49

22

STARTING DEVICE

57031549000

$6.11

23

START.DEVICE BODY 4S

57231150100

Unavailable

24

THROTTLE VALVE N0.40

58031135040

$146.01

25

WARM START BUTTON

58031180000

Unavailable

26

HEXAGON NUT M 9X0,75

58031181000

$6.17

27

OVAL HEAD SCREW DIN0964-M 4x14

0964040143

$1.49

28

AH SCREW DIN0912-M 4X12

0912040123

$1.49

29

IDLE MIXING TUBE NR.1 CD

49031122000

$3.95

31

MAIN JET HOLDER

57031522000

$6.55

34

WASHER 3,3 X 5,8 X 0,5

57031572000

$2.05

35

SPRING AIR ADJUST.SCREW

57031515000

$1.49

36

MIXTURE REGULAT.SCREW M7X0,75

57031517000

$4.06

37

ADJUSTMENT SCREW M5

57031519000

$7.00

38

SPRING

52031116000

$4.11

39

WASHER 5,1 X 8 X 0,8

57031573000

$2.05

40

KNURLED CAP PLASTIC

57031519100

$1.67

41

HH SCREW DIN0933-M 6X16

0933060163

$1.49

43

HOSE CONNECTOR

57031513000

$5.68

44

FUEL FILTER

15131112000

$5.23

45

COVER

50131174000

$3.31

48

STUD 2 X 47

57031508000

$2.12

50

FLOAT CHAMBER WITH RUN OVER T.

57031511100

Unavailable

52

PLUG M12X1

57031514000

$26.83

53

GASKET SET PHM38SD/PHM40SD

58031199000

$33.46

55

CHOKE CABLE CPL. SX,SXC,SC'97

58302095200

$13.77

56

SLEEVE FOR CHOKE CABLE

58302095251

$13.24

60

TUBE FOR CARBURETOR '

58031160000

Unavailable

95

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

97

PVC-HOSE 3X5MM

52031137001

Unavailable
