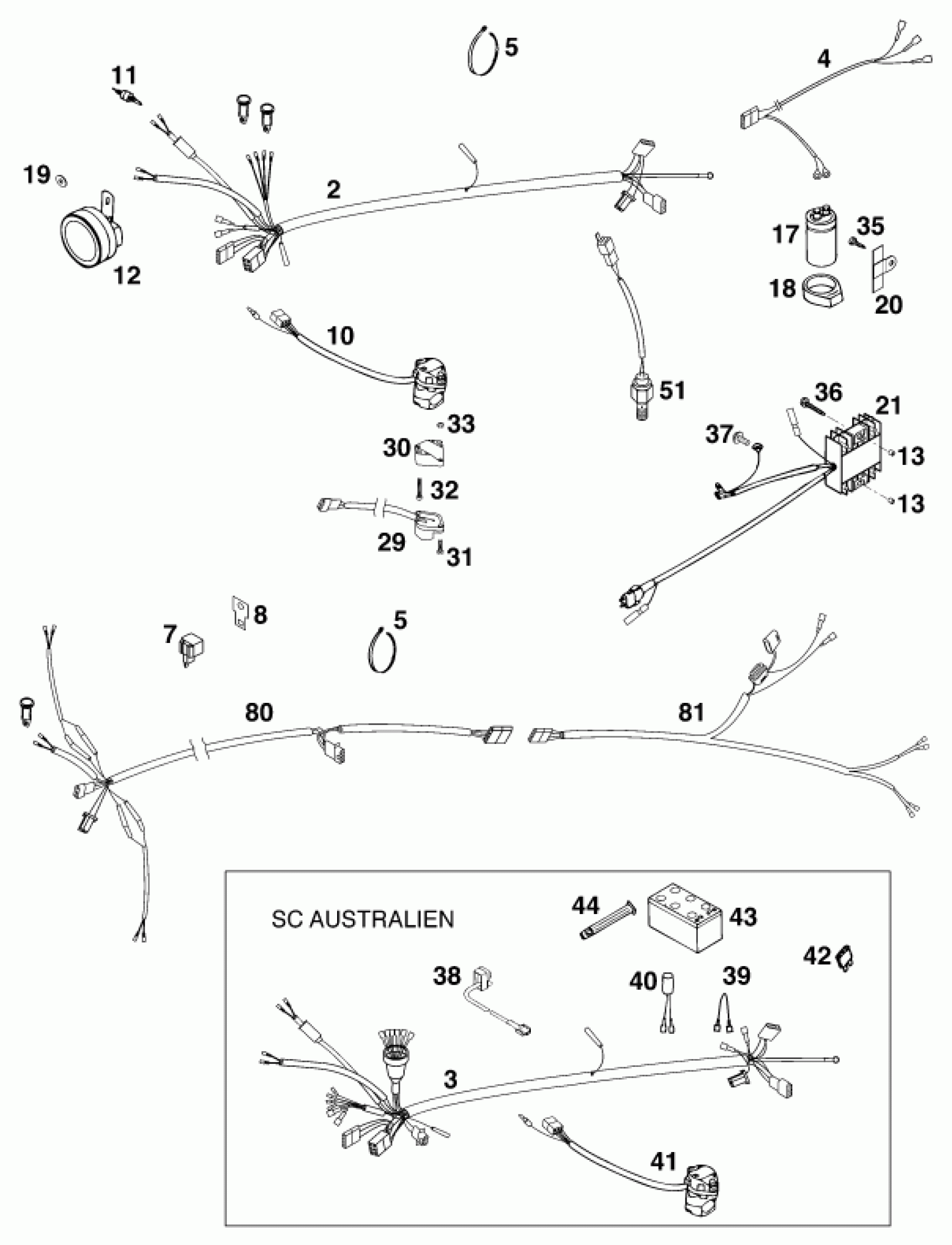

KTM 620 SUPER-MOTO COMP. 20 KW '98 <1998 WIRING HARNESS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

2

WIRING H. WITH FLASHER SC'98

58311175300

Unavailable

3

WIRING H. W.FLASHER SC AUS '98

58311175600

Unavailable

4

TAIL LIGHT WIRING CEV '95

58311176000

Unavailable

5

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

11

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

12

54511060000

Unavailable

13

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

19

WASHER DIN9021-A 4,3

0021040003

$1.49

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

VOLTAGE REGULATOR SHINDENGEN

58311034100

$119.76

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

35

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

36

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

38

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

39

DIODE BRIDGE

50211475251

Unavailable

40

DIODE

26011130000

Unavailable

41

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

42

FUSE 10 A

58011109010

Unavailable

43

BATTERY 12V 1,2AH

54511008000

Unavailable

44

RUBBER BAND

54611186000

Unavailable

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

80

FLAS.WIRINGHARN. FRONT 125-3

50311080000

Unavailable

81

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable
