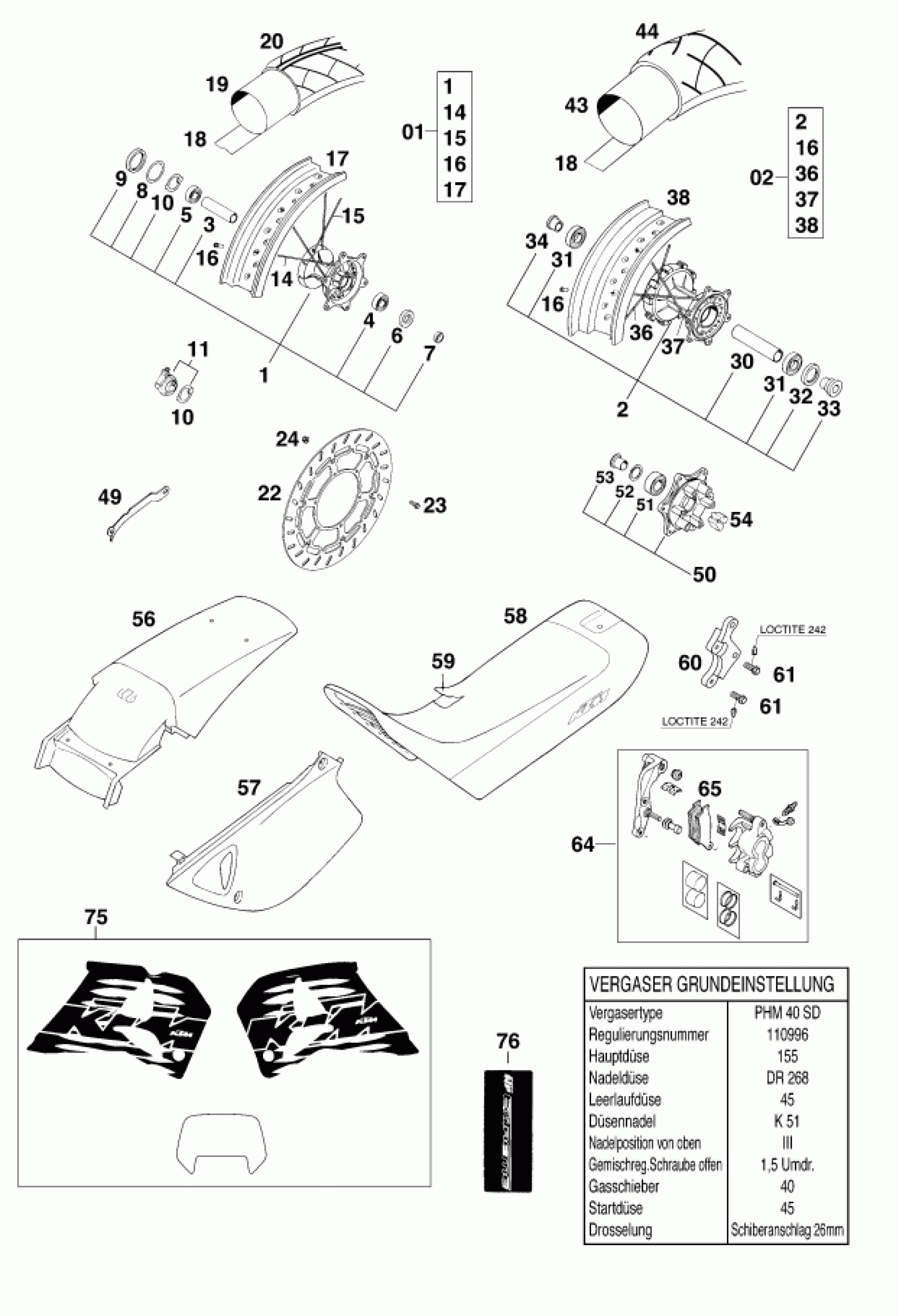

KTM 620 SUPER-MOTO COMP. 20 KW '98 <1998> NEW PARTS Diagram

#

Description
Price

0

SIDE COVER SILVER R/S '

5830804200091

Unavailable

1

FRONT HUB CPL. SILVER GS'93

5460901004490

Unavailable

1

58309001144

Unavailable

2

58310001144

Unavailable

2

58310010044

Unavailable

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

Unavailable

9

SHAFT SEAL RING 40X52X7 B

0760405270

Unavailable

10

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable

11

SPEEDOM.DRIVE 748204 (1,88)'98

58314050000

Unavailable

14

SPOKE M5X174-13,5G 17''

58309071100

Unavailable

15

SPOKE M5X177-13,5G 17''

58309171100

Unavailable

16

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

17

% RIM FRONT 3,5X17" AKRONT

58309070000

Unavailable

18

rim tape 17"

58309073000

Unavailable

19

tube 3.5x17''

58309075000

Unavailable

20

TIRE 120/70-17"58H TL MT60R

58309074100

Unavailable

22

BRAKE DISK FRONT D=320MM

58309060000

Unavailable

23

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

24

SELF LOCKING NUT M6

56509064000

Unavailable

30

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

31

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

32

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

33

BUSHING FOR HUB

54610016000

Unavailable

34

BUSHING FOR REAR DAMPED HUB

54610416300

Unavailable

36

SPOKE M5X199-16G 17''

58310171100

Unavailable

37

SPOKE M5X186-26G 17''

58310071100

Unavailable

38

RIM REAR 4,25X17'' AKRONT

58310070000

Unavailable

43

TUBE 17''

58410075000

Unavailable

44

TIRE 160/60R17 69H TL MT60RS

58310074100

Unavailable

49

CHAIN DAMPER SHEET DUKE'94

58030047615

Unavailable

50

SPROCKET SUPPORT CPL.

58310050044

Unavailable

51

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Unavailable

52

SEAL WASHER 3205 AV

54610018000

Unavailable

53

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

Unavailable

54

Rubber damping block 91

54610459000

Unavailable

56

% FENDER REAR SILVER '

5830801320091

Unavailable

57

% SIDE COVER SILVER L/S '

5830804100091

Unavailable

58

SEAT ORANGE/BLACK SXC'98

58307340400

Unavailable

59

% SEAT COVER SXC'

58307340450

Unavailable

60

BRAKE ADAPTER 320MM DISC ''E''

58313049000

Unavailable

61

HH COLLAR SCREW M 8X20 WS=10

0015080203

Unavailable

64

BRAKE CALI.FRONT CPL. 2 PISTON

58413015044

Unavailable

65

BRAKE P.SET FR. TEXTART4069

58413030000

Unavailable

75

DECAL SET 400/540SXC,S.MOTO'98

57608099000

Unavailable

76

DECAL ''WP EXTREME''

50308093000

Unavailable
