Description

Price

1

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

2

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

3

FILTER BOX CPL. WITHOUT SLS'94

58306001200

Unavailable

4

PLUG 30 MMM

58306004000

Unavailable

5

PLUG 37MM

54606004000

$2.05

6

FILTER BOX COVER OPEN

58306002000

$28.88

6

FILTER BOX COVER CLOSED

58306102000

$20.16

8

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

16

% FILTER SUPPORT 4STR. '93

58306016000

Unavailable

17

FILTER BRACKET 4STR. '93

58306017000

Unavailable

18

HOOK FOR FILTER BRACKET

58306017050

$11.28

19

CLAMPING DISK KS4

54606019004

$2.05

20

RUBBER GRIMMET SLOTTED

50206020000

$5.23

26

CARBURETOR CONNECTION BOOT '98

58306026000

$26.74

28

HOSE CLAMP 60-80MM

55006028000

$4.11

39

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

40

BUCKET

72210079000

$3.00

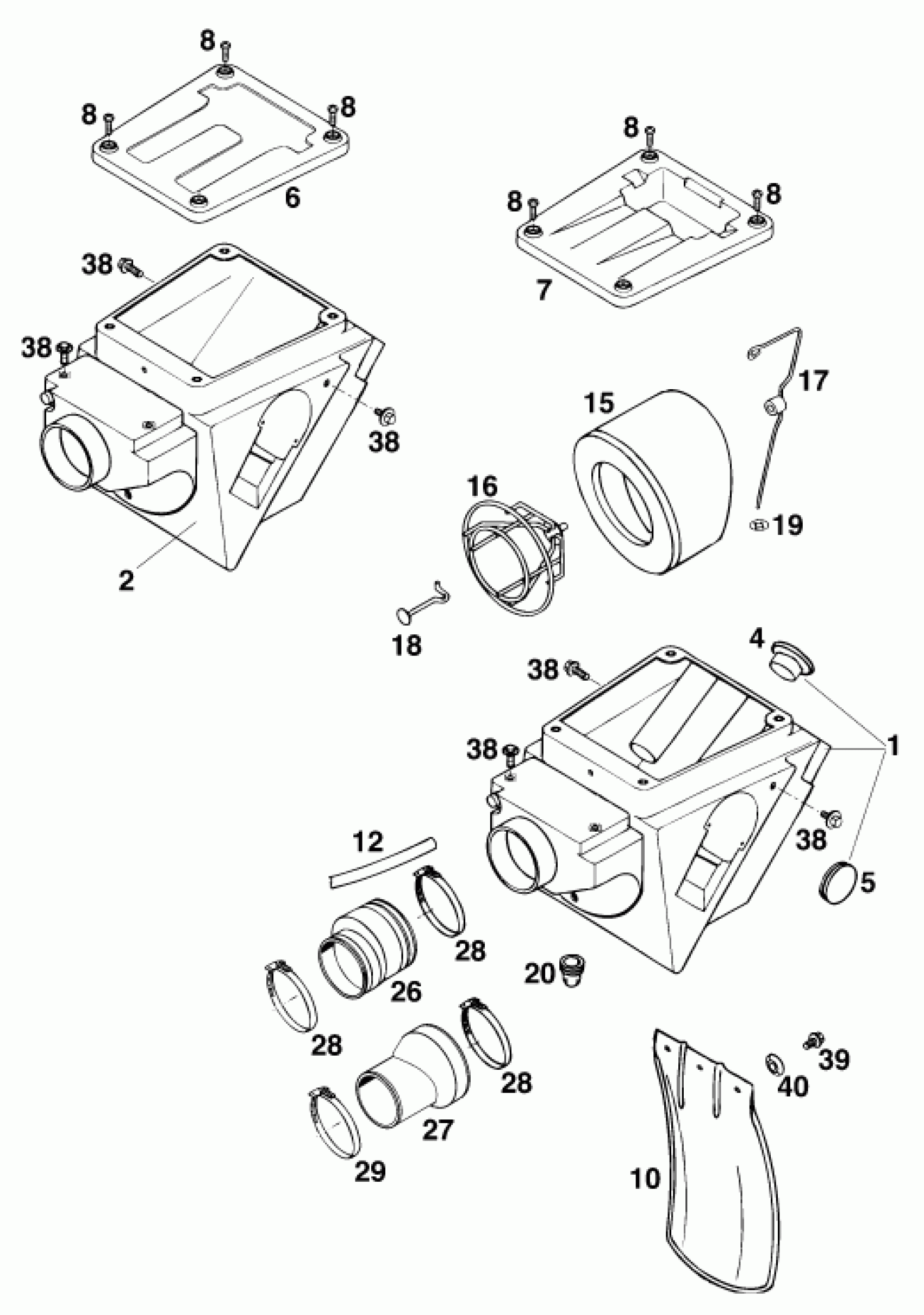

KTM 620 SUPER-COMP WP/ 19kW <1994 AIR FILTER Diagram

FILTER BOX CPL. WITHOUT SLS'94

FILTER BOX CPL. WITHOUT SLS'94

FILTER BOX CPL. WITHOUT SLS'94

PLUG 30 MMM

PLUG 37MM

FILTER BOX COVER OPEN

FILTER BOX COVER CLOSED

OVAL HEAD SCR. DIN7985-M 5X10

SPLASH PROTECT.FOR FILTER BOX

HOSE 10X14 PER METER

AIRFILTER

% FILTER SUPPORT 4STR. '93

FILTER BRACKET 4STR. '93

HOOK FOR FILTER BRACKET

CLAMPING DISK KS4

RUBBER GRIMMET SLOTTED

CARBURETOR CONNECTION BOOT '98

HOSE CLAMP 60-80MM

HH COLLAR SCREW M 6X10 WS=8

BUCKET
