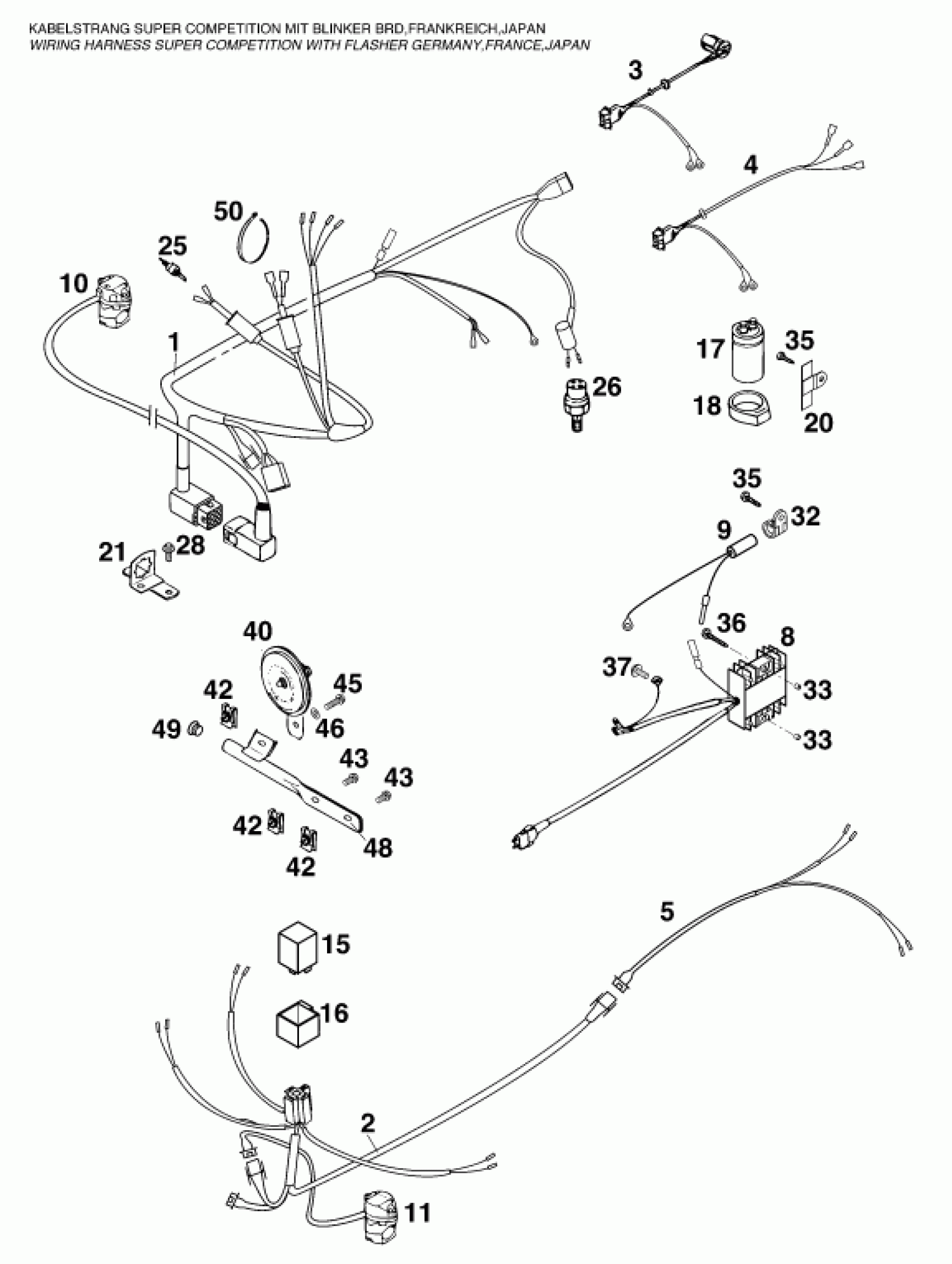

KTM 620 SUPER-COMP 4T <1996> WIRING HARNESS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

MAIN WIRING HARNESS SUPERCOMP.

58311175100

Unavailable

2

FLASHER LIGHT WIRING FRONT '95

58311177000

Unavailable

3

*TAIL LIGHT WIRING ACERBIS '95

58311176100

Unavailable

4

TAIL LIGHT WIRING CEV '95

58311176000

Unavailable

5

FLASHER LIGHT WIRING REAR '95

58311178000

Unavailable

8

% VOLTAGE REGULATOR SHINDENGEN

58311034000

Unavailable

9

DIODE FOR REGULATOR SHINDENGEN

58311030100

$24.37

10

LIGHT SWITCH CEV 9607 '93

58311070000

$32.03

11

FLASHER SWITCH CEV '95

58011371000

Unavailable

15

* FLASHER UNIT

44611207000

Unavailable

16

* FLASHER LIGHT BRACKET

54511046000

Unavailable

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

BRACKET FOR CONNECTOR '93

54611083100

Unavailable

25

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

26

BRAKE LIGHT SWITCH

42013121000

$31.34

28

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

29

Washer DIN9021-A 6.4

0021060003

$2.05

32

CLAMP RSGU 15/12

49007439000

$5.23

33

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

35

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

36

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

40

54511060000

Unavailable

42

clip nut M6

54603048100

$4.11

43

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

45

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

46

WASHER DIN0125-A 6,4

0125060003

$1.49

48

BRACKET FOR HORN '93

58307021000

$12.42

49

Plug SFL16

50210086000

$3.08

50

* CABLE TIE 180MM

44011076180

Unavailable
