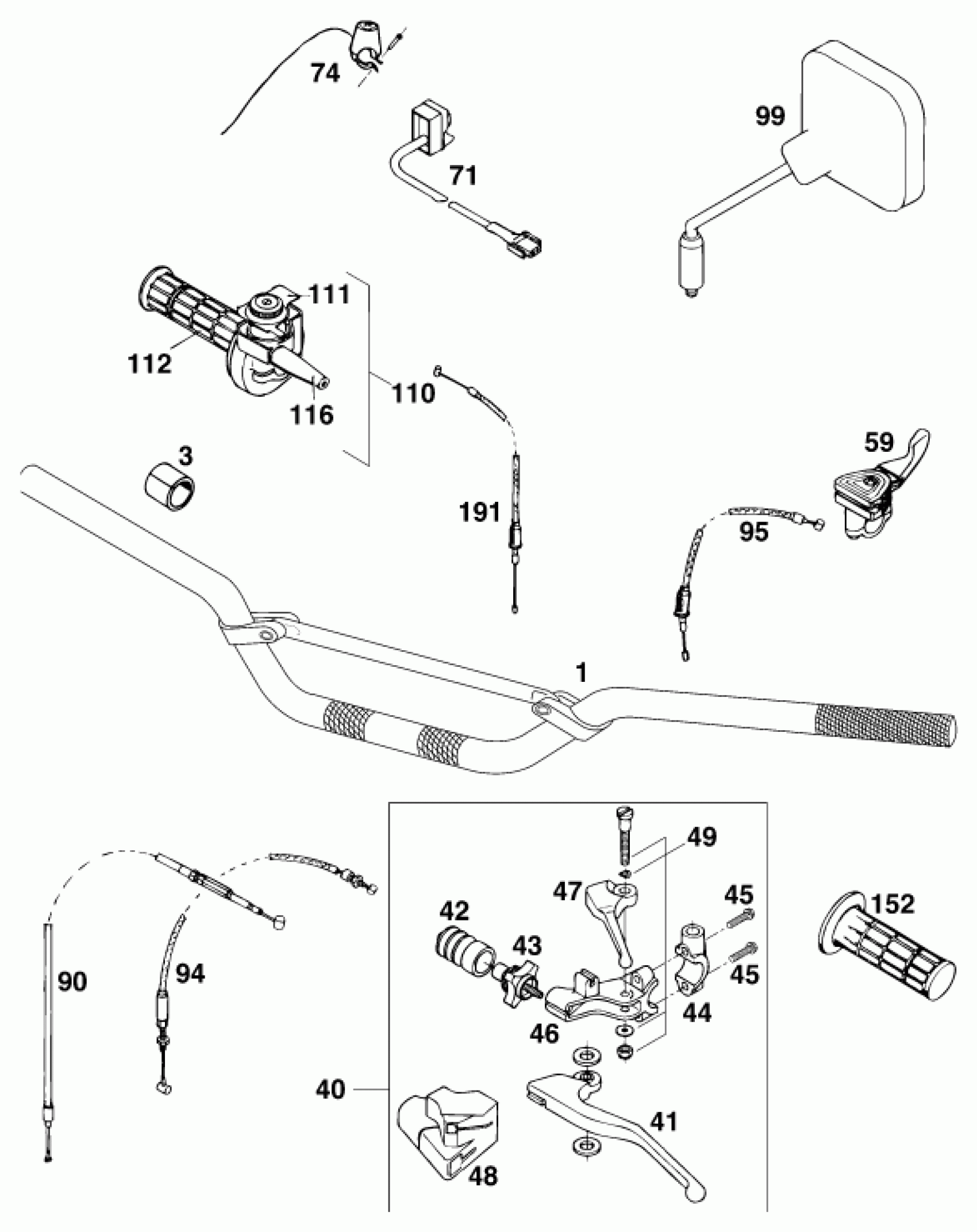

KTM 620 SUP-COMP WP 20KW <1996> HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Rear view mirror right

58012140000

Unavailable

1

ALU-HANDLEBAR '95

50202001000

$62.49

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

41

CLUTCH LEVER LOOSE

58302055000

Unavailable

42

BELLOWS CLUTCH LEVER '91

54602126000

$10.62

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT DOMINO

58302023000

$49.55

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PROTECTING COVER

58302048000

$8.01

49

LEVER SCREW CPL.

58302049000

$7.00

59

CHOKE LEVER DOMINO '93

58302050000

$20.61

71

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

74

SHORT CIRCUIT BUTTON 790 MM

51011198000

$37.58

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

94

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

95

CHOKE CABLE LC4 '93

58302095000

$38.25

99

Rear view mirror left

58012040000

$36.18

110

THROTTLE GRIP CPL.MAG.312 BL

58002010000

Unavailable

111

* COVER WITH KNURLED SCREW

58002011000

Unavailable

112

TWIST GRIP COVER LONG BLACK

56502003000

$12.04

116

PROTECTION CAP

54002016000

$10.65

152

FIXED GRIP MAGURA LONG BLACK

56502052000

$16.72

191

THROTTLE CABLE MAGURA/DELLORTO

58002091100

$21.49
