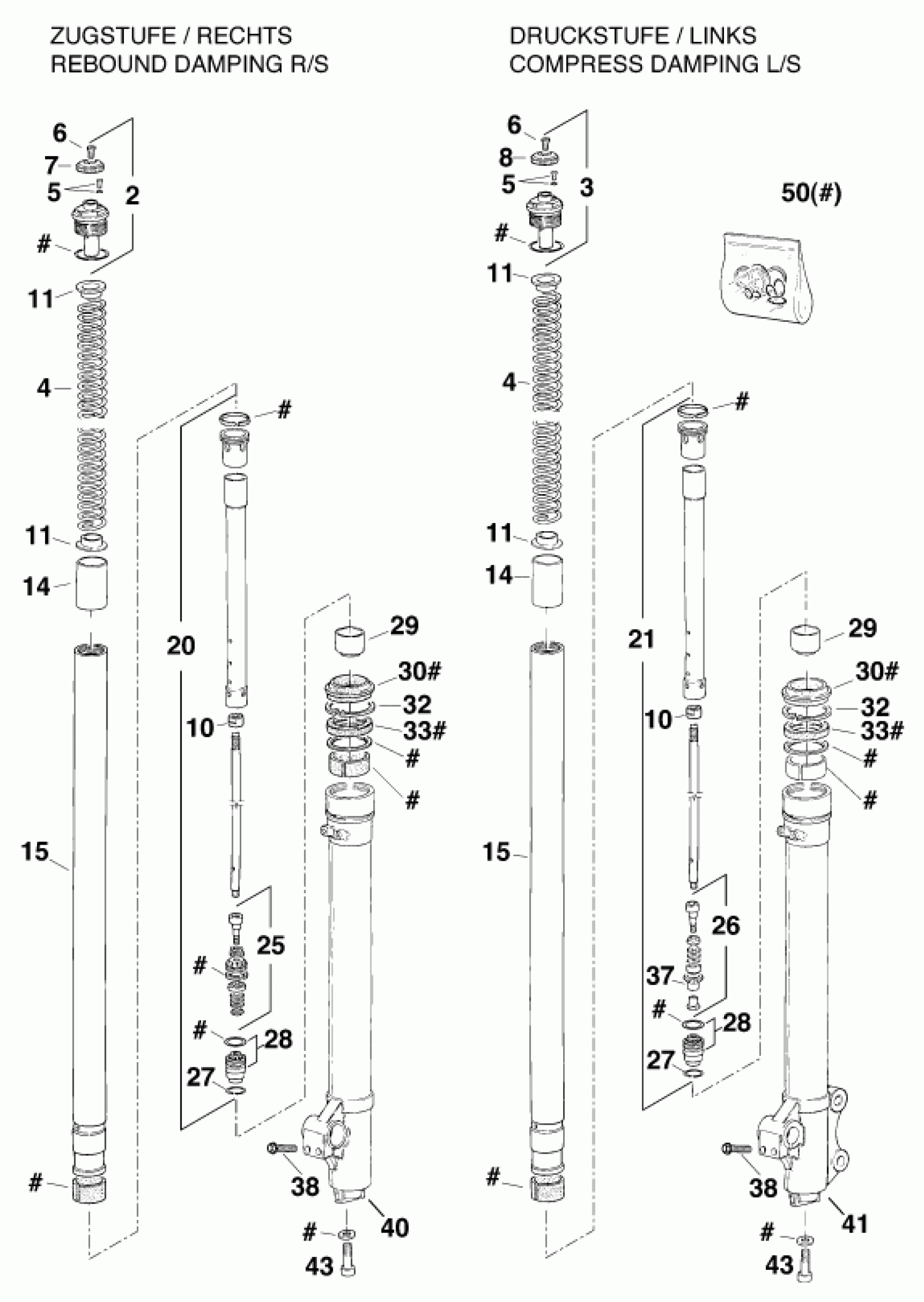

KTM 620 SUP-COMP WP 20KW <1996 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

2

* SCREW CAP CPL. R/S

7701118

Unavailable

3

SCREW CAP CPL. L/S

7701119

Unavailable

4

SPRING

7514977

Unavailable

4

SPRING

7514980

Unavailable

5

LENTIL HEAD SCREW M4X6

7850208AR

$1.73

6

COUNTERSUNK SCREW M3X10

7520197

Unavailable

7

ADJUSTING KNOB R/S

7549033

Unavailable

8

ADJUSTING KNOB L/S

7549034

Unavailable

10

LOCK NUT

7521119

Unavailable

11

SPRING GUIDE CUP

7536071

$18.25

14

PRE-LOAD BUSH

7518938

Unavailable

14

PRE-LOAD BUSH

7518953

Unavailable

15

FORK TUBE D=45MM

7507437

Unavailable

20

* CARTRIDGE CPL. R/S

7803803

Unavailable

21

CARTRIDGE CPL. L/S

7803801

Unavailable

25

REPAIR KIT R/S

7850561

Unavailable

26

REPAIR KIT L/S

7850562

Unavailable

27

* STOP RING

7523232

Unavailable

28

* FOOT VALVE

7717026

Unavailable

29

HYDROSTOP

7532631

$11.92

30

DUST SEAL

7533266

$14.02

32

STOP RING

7523239

$1.49

33

SEAL

7528145

Unavailable

37

* FLOATING PISTON

7530081

Unavailable

38

H H COLLAR SCREW M 6X25 WS=10

7520196

$1.73

40

SLIDER R/S

75031170/BS/R

Unavailable

41

SLIDER L/S

75031175/BS/R

Unavailable

43

A H SCREW

7520019

Unavailable

50

REPAIR KIT

7850544

Unavailable
