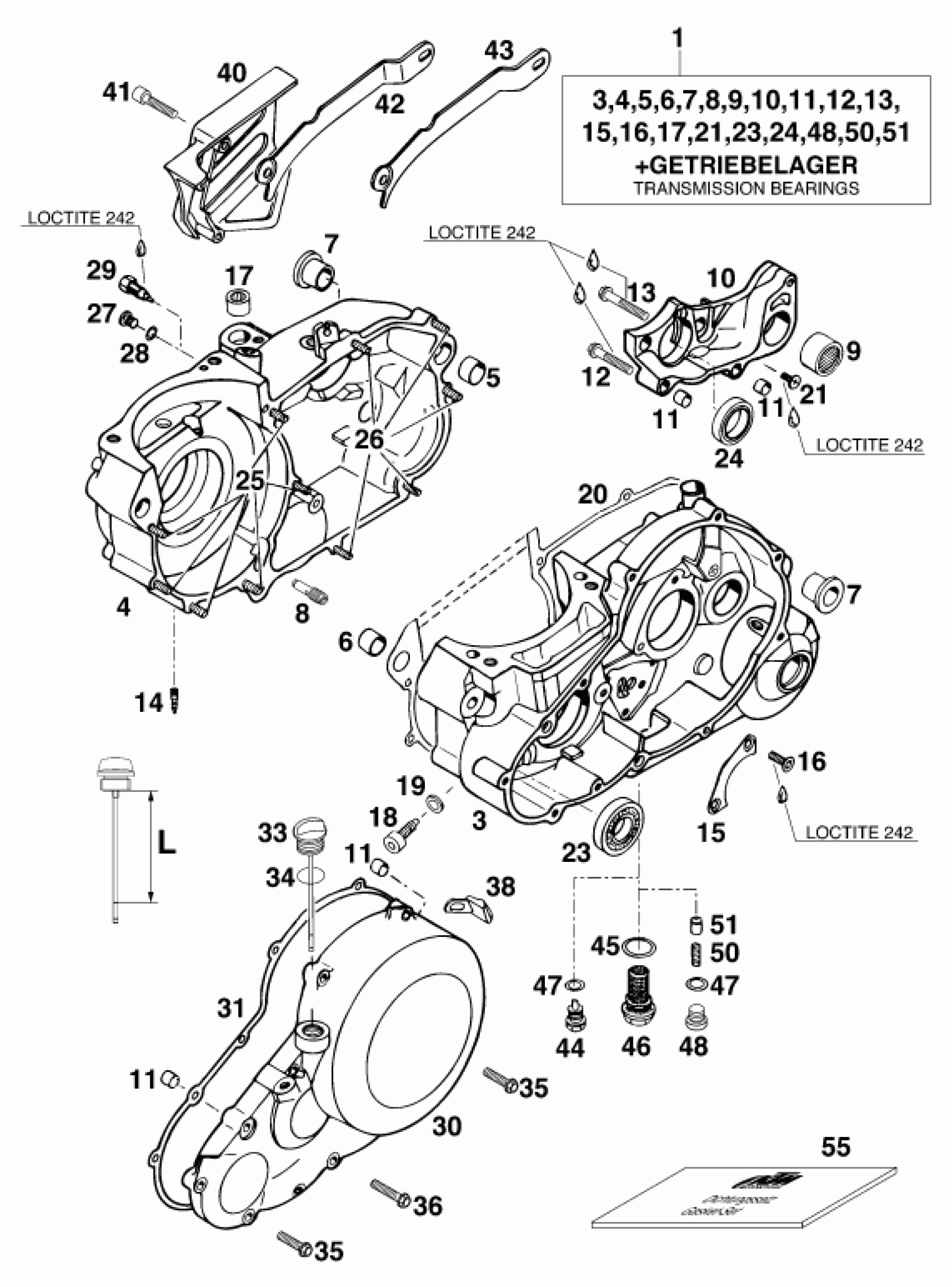

KTM 620 SUP-COMP WP 20KW <1996> ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL.W.TRANSMISSI

58330000244

Unavailable

5

DOWEL 19 X15,1X12

50130027000

$5.30

6

DOWEL 17 X 13 X 12

51030026100

$6.44

7

CRANK CASE BUSH

50130010000

$21.78

8

58338027044

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

$14.02

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

$90.03

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

12

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

14

TUBE LW 3

49130450050

Unavailable

15

RETAINING PLATE

56530017000

$12.03

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

17

NEEDLE BEARING HK 1212

50332095000

$8.03

18

LOCATING SCREW M8 L=23

58030080000

$17.66

19

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

20

ENGINE CASE GASKET '94

58330039000

$10.48

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

23

GROOVED BALL BEARING 16003 C3

0625160030

$20.56

24

BALL BEARING 61805 C3

0625618050

$43.94

25

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

26

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

29

CONTACT SCREW M10 '

58011081000

Unavailable

31

CLUTCH COVER GASKET '94

58330025000

$21.96

33

OIL DIPSTICK CPL. L=93MM '96

58330020144

$14.02

34

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

35

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

36

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

38

BUMP RUBBER

58333041000

$6.62

40

CHAIN COVER BLACK '

58030050600

Unavailable

41

AH SCREW DIN0912-M 6X30

0912060303

$2.05

42

CHAIN DAMPER SHEET LC4 '90

58030047515

$15.77

43

CHAIN DAMPER SHEET DUKE'94

58030047615

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

45

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

46

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

47

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

48

threaded plug DIN 908 M12x1.5

0908120153

$4.11

50

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

51

VALVE PISTON D=10MM

58038028000

$37.77

55

GASKET SET 400/620 LC4'96

58330099000

$170.05
