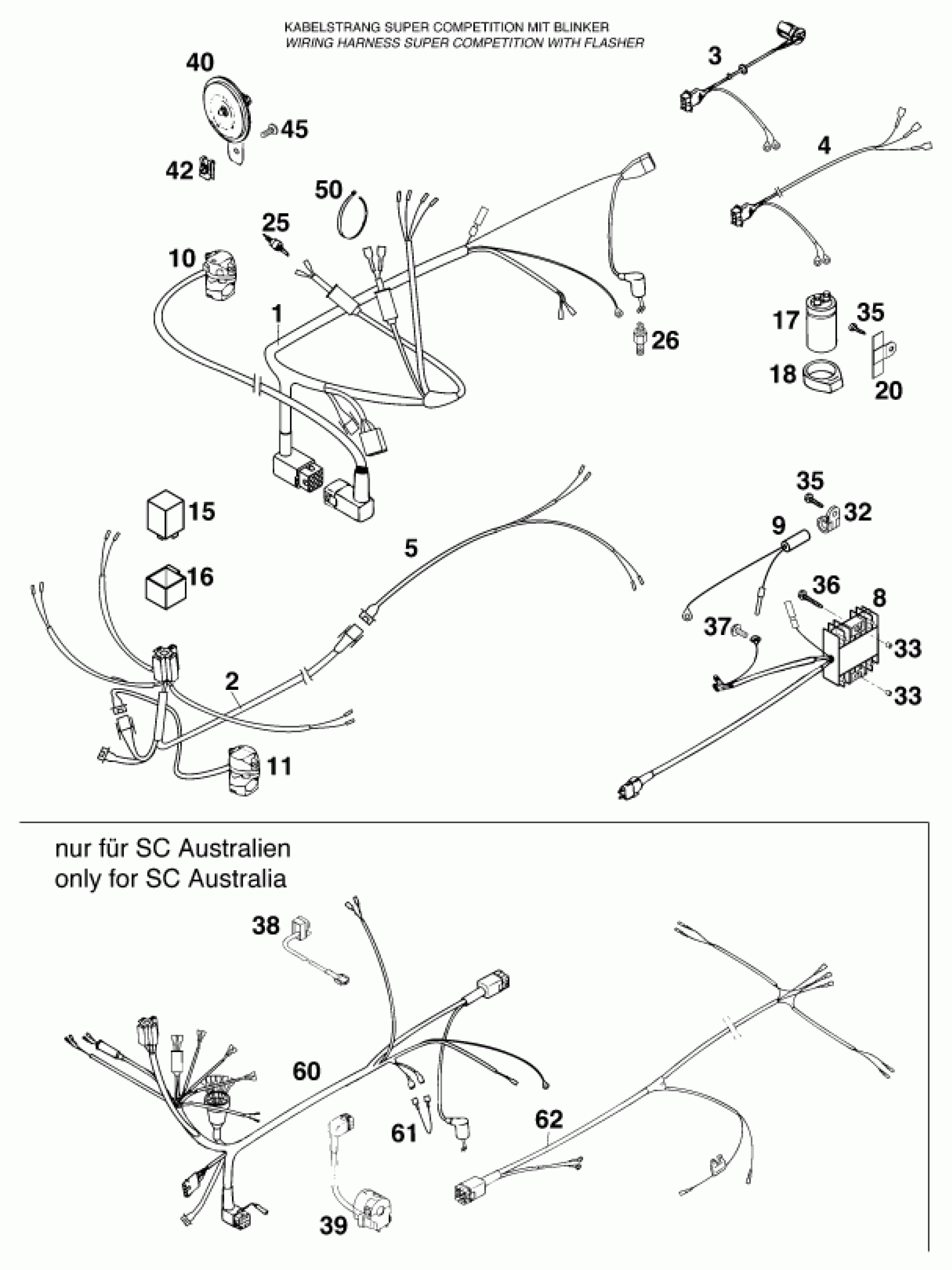

KTM 620 SUP-COMP WP <1997 WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

WIRING HARN. WITH FLASHER '97

58311175200

Unavailable

2

WIRING HARN.FLASH. FRONT SC'97

58311177100

Unavailable

3

*TAIL LIGHT WIRING ACERBIS '95

58311176100

Unavailable

4

TAIL LIGHT WIRING CEV '95

58311176000

Unavailable

5

FLASHER LIGHT WIRING REAR '95

58311178000

Unavailable

8

% VOLTAGE REGULATOR SHINDENGEN

58311034000

Unavailable

9

DIODE FOR REGULATOR SHINDENGEN

58311030100

$24.37

10

LIGHT SWITCH CEV 9607 '93

58311070000

$32.03

11

FLASHER SWITCH CEV '95

58011371000

Unavailable

15

FLASHER UNIT HELLA BRK '96

44611207100

$50.22

16

* FLASHER LIGHT BRACKET

54511046000

Unavailable

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

25

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

26

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

32

CLAMP RSGU 15/12

49007439000

$5.23

33

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

35

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

36

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

38

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

39

LIGHT SWITCH KPL. CEV '94

58311570000

Unavailable

40

DC HORN 12V NIKKO

54511060100

Unavailable

42

clip nut M6

54603048100

$4.11

45

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

50

Cable tie 200/4.6mm black

44011076200

Unavailable

60

WIRING HARNESS FRONT AUSTR.'97

58311475400

Unavailable

61

DIODE BRIDGE

50211475251

Unavailable

62

* WIRING HARNESS REAR '93

58311476000

Unavailable
